PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
600R160-RAFPTC RESET FUSE 60V 160MA RADIAL |
5,981 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Bulk | Obsolete | Polymeric | 60V (600V Int) | 160 mA | 320 mA | 3 A | 10 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.201" (5.10mm) |
|
|
600R160-RAURPTC RESET FUSE 60V 160MA RADIAL |
4,433 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Tape & Box (TB) | Obsolete | Polymeric | 60V (600V Int) | 160 mA | 320 mA | 3 A | 10 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.201" (5.10mm) |
|

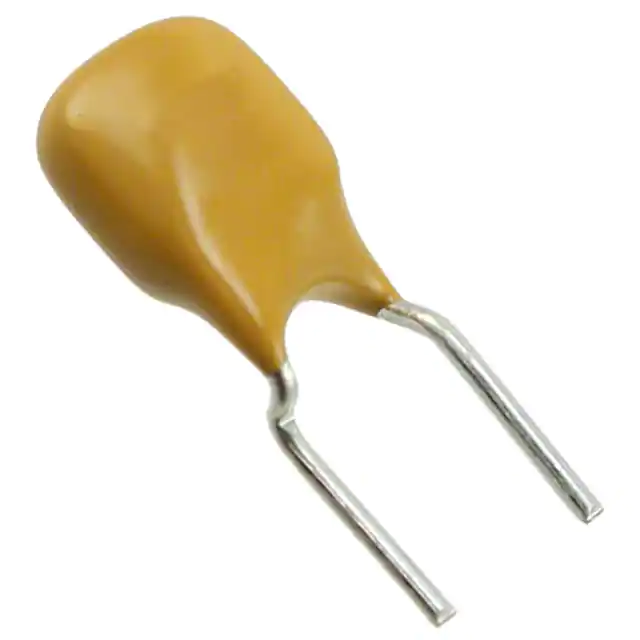

250R145TUPTC RESET FUSE 60V 145MA RADIAL |
2,222 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|

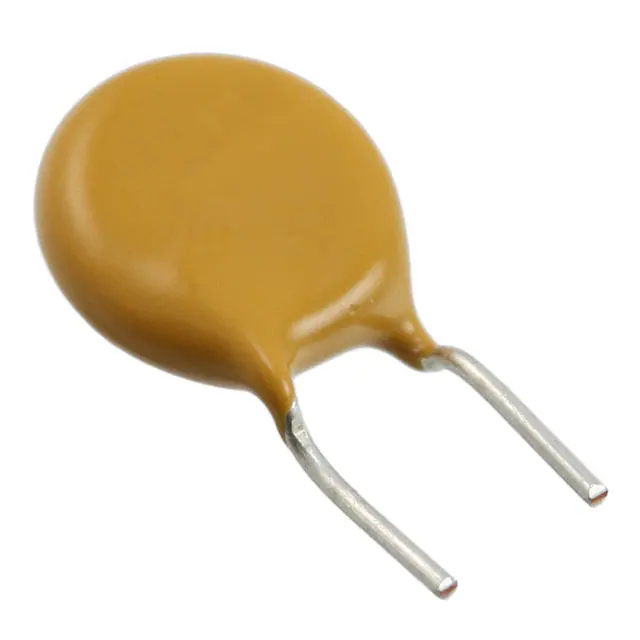

250R180TFPTC RESET FUSE 60V 180MA RADIAL |
3,811 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 180 mA | 650 mA | 10 A | 21 s | 1.4 Ohms | 4.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.374" Dia x 0.181" T (9.50mm x 4.60mm) | 0.472" (12.00mm) | - | 0.201" (5.10mm) |
|
|
250R145UPTC RESET FUSE 60V 145MA RADIAL |
2,387 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R145TZRPTC RESET FUSE 60V 145MA RADIAL |
6,506 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
16R160BUPTC RESET FUSE 16V 1.6A RADIAL |
7,368 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 16V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
16R185BUPTC RESET FUSE 16V 1.85A RADIAL |
7,324 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 16V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
|
16R250BUPTC RESET FUSE 16V 2.5A RADIAL |
4,514 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 16V | 2.5 A | 5 A | 40 A | 40 s | 20 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
16R135BUPTC RESET FUSE 16V 1.35A RADIAL |
6,600 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 16V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
|
16R090BUPTC RESET FUSE 16V 900MA RADIAL |
9,458 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 16V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|

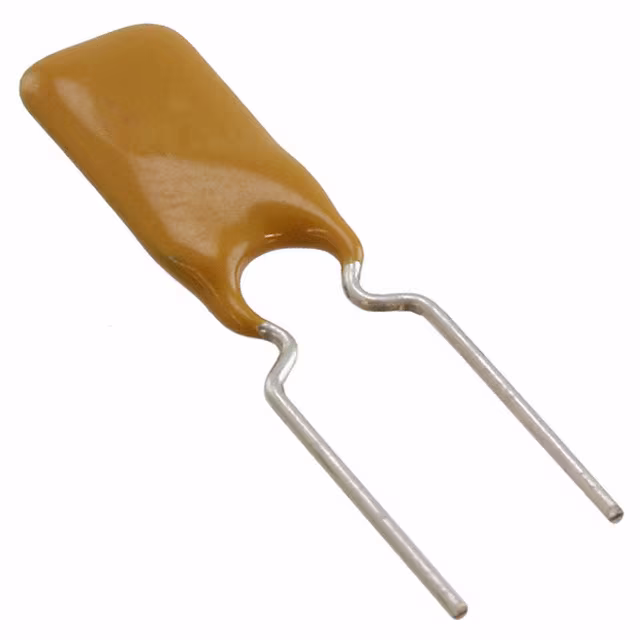

16R110BUPTC RESET FUSE 16V 1.1A RADIAL |
9,491 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 16V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|

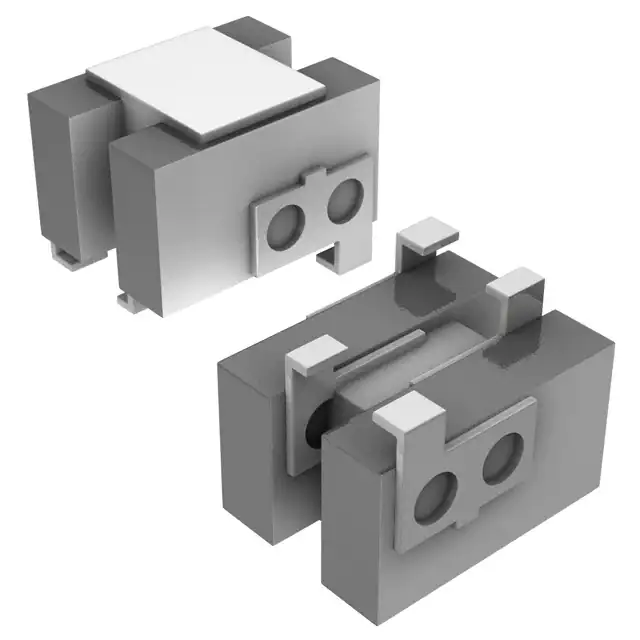

PTCTT95R200GTEPTC RESET FUSE 240V 90MA 4SMD |
9,079 |
|
Datasheet |
4-SMD | - | Tape & Reel (TR) | Active | Ceramic | 240V | 90 mA | 200 mA | 8 A | 2 s | - | - | 20 Ohms | -40°C ~ 85°C | - | - | - | Surface Mount | 0.354" L x 0.283" W (9.00mm x 7.20mm) | - | 0.272" (6.90mm) | - |
|
|
PTCTT95R250GTEPTC RESET FUSE 240V 100MA 4SMD |
6,925 |
|
Datasheet |
4-SMD | - | Tape & Reel (TR) | Active | Ceramic | 240V | 100 mA | 200 mA | 4 A | 2 s | - | - | 25 Ohms | -40°C ~ 85°C | - | - | - | Surface Mount | 0.354" L x 0.283" W (9.00mm x 7.20mm) | - | 0.272" (6.90mm) | - |
|
|
PTCTT95R350GTEPTC RESET FUSE 240V 100MA 4SMD |
5,388 |
|
Datasheet |
4-SMD | - | Tape & Reel (TR) | Active | Ceramic | 240V | 100 mA | 200 mA | 4 A | 1.5 s | - | - | 35 Ohms | -40°C ~ 85°C | - | - | - | Surface Mount | 0.354" L x 0.283" W (9.00mm x 7.20mm) | - | 0.272" (6.90mm) | - |
|
LVR075SPTC RESET FUSE 240V 750MA RADIAL |
4,165 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 750 mA | 1.5 A | 7.5 A | 18 s | 316 mOhms | 839 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.450" L x 0.189" W (11.43mm x 4.80mm) | 0.921" (23.40mm) | - | 0.200" (5.08mm) |
|

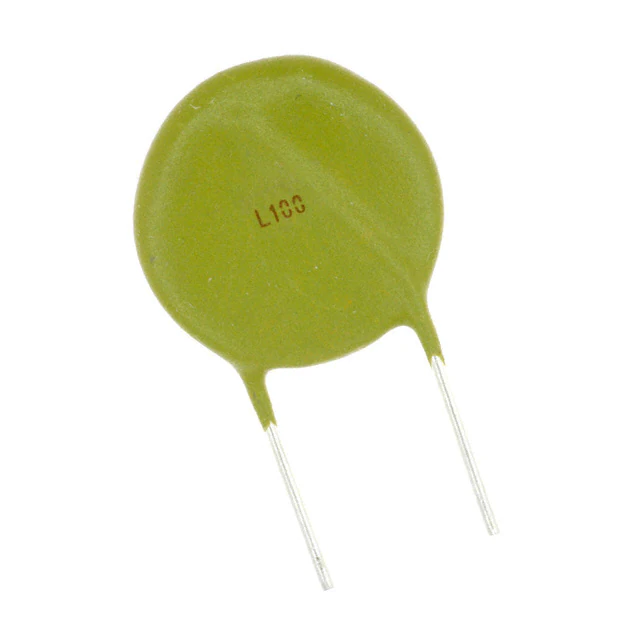

LVR100SPTC RESET FUSE 240V 1A RADIAL |
2,661 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | 0.961" (24.40mm) | - | 0.400" (10.15mm) |
|

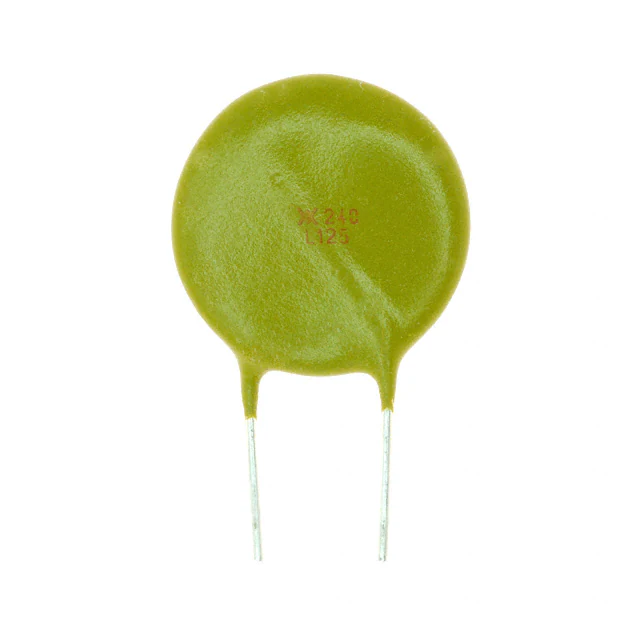

LVR125SPTC RESET FUSE 240V 1.25A RADIAL |
6,809 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 1.25 A | 2.5 A | 12.5 A | 23 s | 165 mOhms | 440 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.835" Dia x 0.209" T (21.20mm x 5.30mm) | 1.079" (27.40mm) | - | 0.400" (10.15mm) |
|

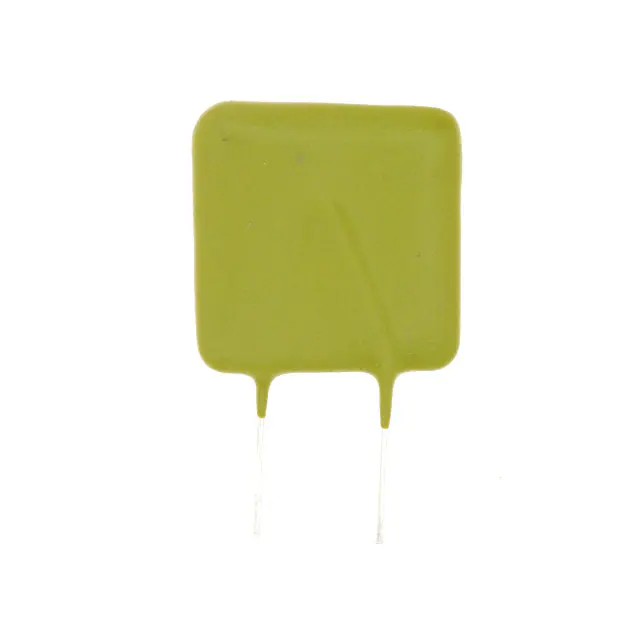

LVR200SPTC RESET FUSE 240V 2A RADIAL |
8,066 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 2 A | 4 A | 20 A | 28 s | 89 mOhms | 221 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.240" W (24.90mm x 6.10mm) | 1.331" (33.80mm) | - | 0.400" (10.15mm) |
|

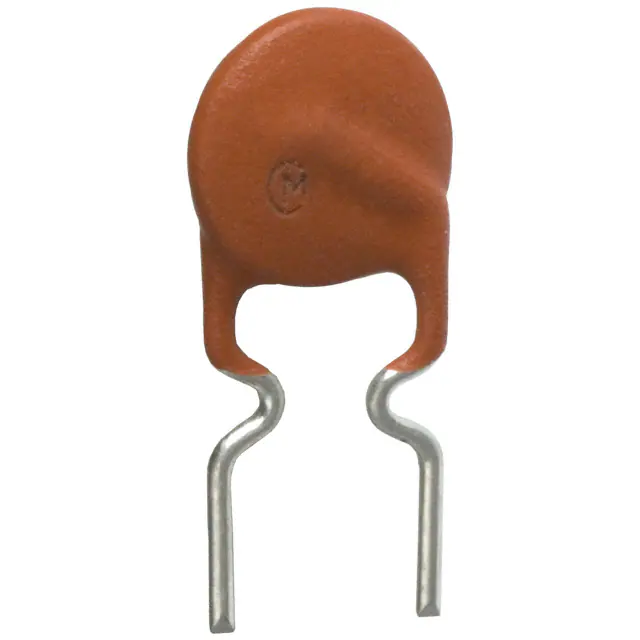

PTGL07BB220N0B52A0PTC RESET FUSE 250V 130MA RADIAL |
9,900 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Cut Tape (CT) | Obsolete | Ceramic | 250V | 130 mA | 250 mA | 500 mA | - | - | - | 22 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.315" Dia x 0.236" T (8.00mm x 6.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) |
