PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

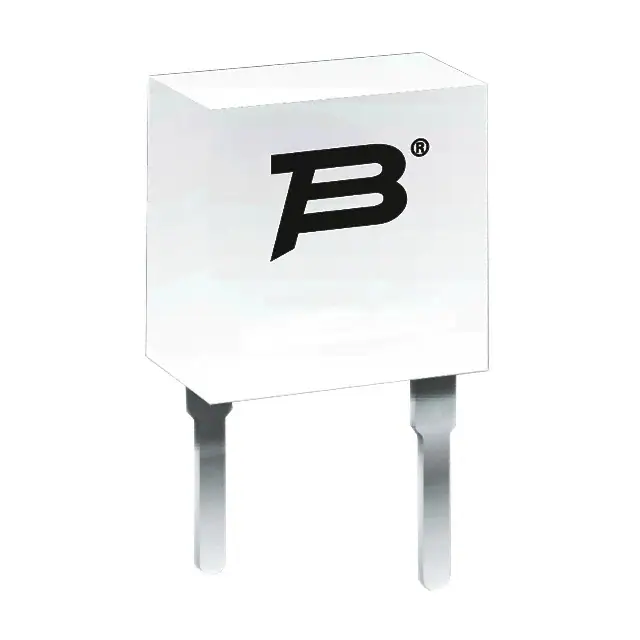

CMF-RLC50-0PTC RESET FUSE 230V 65MA RADIAL |
5,506 |
|
Datasheet |
Radial, Disc | CMF-RLC | Bulk | Obsolete | Ceramic | 230V (650V Int) | 65 mA | 150 mA | 3 A | 100 ms | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.354" L x 0.177" W (9.00mm x 4.50mm) | 0.378" (9.60mm) | - | 0.200" (5.08mm) |
|
|
CMF-RLC50-10-0PTC RESET FUSE 230V 65MA RADIAL |
5,006 |
|
Datasheet |
Radial, Disc | CMF-RLC | Bulk | Obsolete | Ceramic | 230V (650V Int) | 65 mA | 150 mA | 3 A | 100 ms | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.354" L x 0.177" W (9.00mm x 4.50mm) | 0.378" (9.60mm) | - | 0.200" (5.08mm) |
|

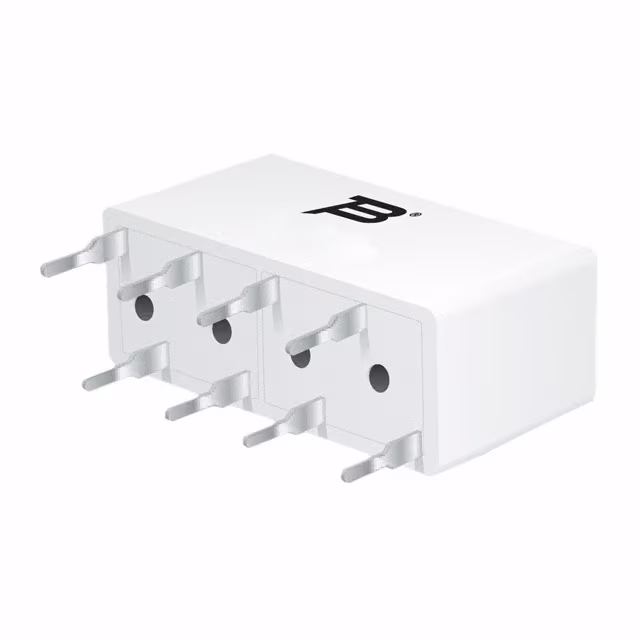

CMF-RQ50-0PTC RESET FUSE 230V 90MA 8DIP |
6,512 |
|
Datasheet |
8-DIP (0.197", 5.00mm) | CMF-RQ | Bulk | Obsolete | Ceramic | 230V (600V Int) | 90 mA | 190 mA | 3 A | 100 ms | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.787" L x 0.354" W (20.00mm x 9.00mm) | 0.398" (10.10mm) | - | 0.197" (5.00mm) |
|
|
CMF-RQ50-10-0PTC RESET FUSE 230V 90MA 8DIP |
7,543 |
|
Datasheet |
8-DIP (0.197", 5.00mm) | CMF-RQ | Bulk | Obsolete | Ceramic | 230V (600V Int) | 90 mA | 190 mA | 3 A | 100 ms | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.787" L x 0.354" W (20.00mm x 9.00mm) | 0.398" (10.10mm) | - | 0.197" (5.00mm) |
|
MF-R015/600-A05-0PTC RESET FUSE 250V 150MA RADIAL |
8,179 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Bulk | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 7 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
|
MF-R015/600-B-0PTC RESET FUSE 250V 150MA RADIAL |
8,267 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Bulk | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
|
MF-R015/600-B05-0PTC RESET FUSE 250V 150MA RADIAL |
6,800 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Bulk | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
|
MF-R015/600-F-0PTC RESET FUSE 250V 150MA RADIAL |
7,198 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Bulk | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 7 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
MF-R017-0-99PTC RESET FUSE 60V 170MA RADIAL |
5,592 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R020-0-99PTC RESET FUSE 60V 200MA RADIAL |
4,366 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.5 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R025-0-99PTC RESET FUSE 60V 250MA RADIAL |
3,052 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-R030-0-99PTC RESET FUSE 60V 300MA RADIAL |
8,166 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.528" (13.40mm) | - | 0.201" (5.10mm) |
|
|
MF-R040-0-99PTC RESET FUSE 60V 400MA RADIAL |
5,672 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 520 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
MF-R050-0-99PTC RESET FUSE 60V 500MA RADIAL |
9,863 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
MF-R065-0-99PTC RESET FUSE 60V 650MA RADIAL |
6,298 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 270 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
MF-R075/90-0PTC RESET FUSE 90V 750MA RADIAL |
7,901 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R/90 | Bulk | Obsolete | Polymeric | 90V | 750 mA | 1.5 A | 10 A | 60 s | 370 mOhms | 1.65 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
|
MF-R075-0-99PTC RESET FUSE 60V 750MA RADIAL |
2,613 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
MF-R090-0-99PTC RESET FUSE 60V 900MA RADIAL |
3,363 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
|
MF-R090-0-9-99PTC RESET FUSE 30V 900MA RADIAL |
6,978 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
MF-R1100-0-99PTC RESET FUSE 16V 11A RADIAL |
6,800 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 16V | 11 A | 22 A | 100 A | 20 s | 3 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
