PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS250-130F-RC-2PTC RESET FUSE 60V 130MA 2SMD |
3,787 |
|
Datasheet |
2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 2 s | 7 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|

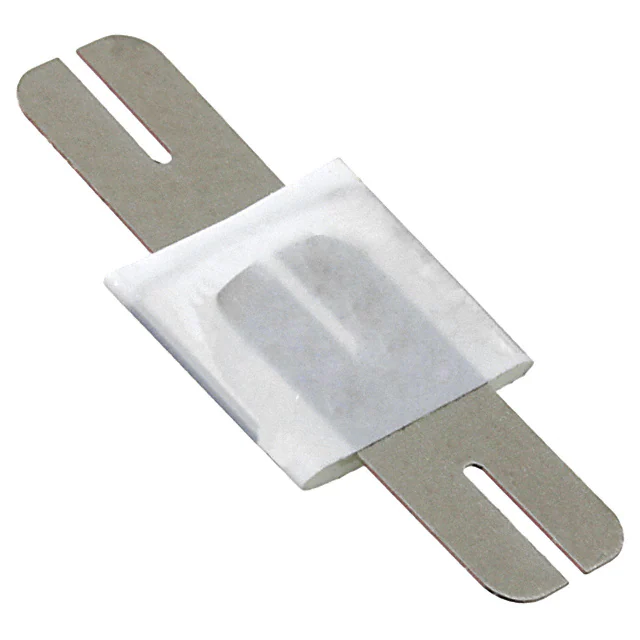

VTP170SSFPTC RESET FUSE 16V 1.7A STRAP |
5,871 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 5 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.648" L x 0.283" W (16.45mm x 7.20mm) | - | 0.032" (0.80mm) | - |
|
|
VTP/200GFPTC RESET FUSE 16V 2A STRAP |
7,994 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 2 A | 4.7 A | 100 A | 5 s | 22 mOhms | 78 mOhms | - | - | - | - | - | User Defined | 0.909" L x 0.177" W (23.10mm x 4.50mm) | - | 0.032" (0.80mm) | - |
|
|
06R155BUPTC RESET FUSE 6V 1.55A RADIAL |
4,359 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 6V | 1.55 A | 2.7 A | 40 A | 2.2 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|

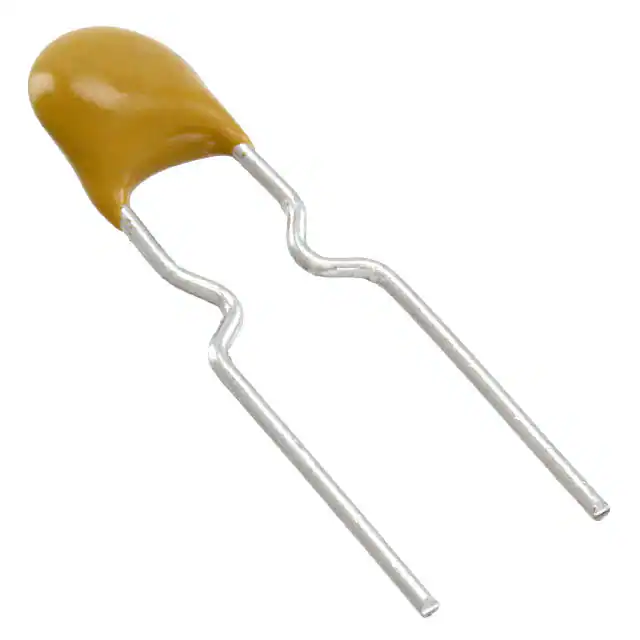

06R120BUPTC RESET FUSE 6V 1.2A RADIAL |
3,815 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 6V | 1.2 A | 2 A | 40 A | 500 ms | 65 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|

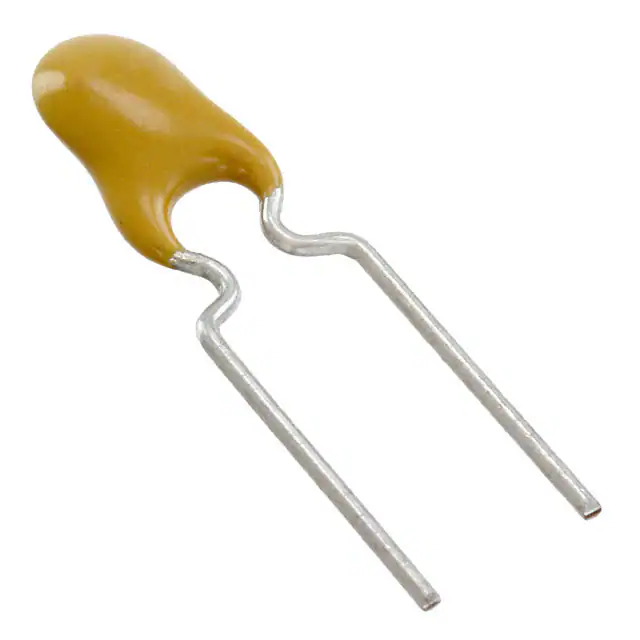

06R075BUPTC RESET FUSE 6V 750MA RADIAL |
3,997 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 6V | 750 mA | 1.3 A | 40 A | 400 ms | 100 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|
250R120-R1ZRPTC RESET FUSE 60V 120MA RADIAL |
6,541 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R120-R3UPTC RESET FUSE 60V 120MA RADIAL |
2,714 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 8 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R120-R2UPTC RESET FUSE 60V 120MA RADIAL |
7,946 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 8 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R120-RAUPTC RESET FUSE 60V 120MA RADIAL |
5,591 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R120-R3ZRPTC RESET FUSE 60V 120MA RADIAL |
2,117 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 8 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R120TZRPTC RESET FUSE 60V 120MA RADIAL |
7,813 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R145-RAUPTC RESET FUSE 60V 145MA RADIAL |
6,714 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R120TUPTC RESET FUSE 60V 120MA RADIAL |
8,131 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R120-RFZRPTC RESET FUSE 60V 120MA RADIAL |
2,516 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R120-RFUPTC RESET FUSE 60V 120MA RADIAL |
2,184 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
250R145-RBUPTC RESET FUSE 60V 145MA RADIAL |
9,375 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 4.5 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
600R150-RBFPTC RESET FUSE 60V 150MA RADIAL |
6,323 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Bulk | Obsolete | Polymeric | 60V (600V Int) | 150 mA | 300 mA | 3 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
|
|
600R160-R1FPTC RESET FUSE 60V 160MA RADIAL |
9,492 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Bulk | Obsolete | Polymeric | 60V (600V Int) | 160 mA | 320 mA | 3 A | 10 s | 4 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.201" (5.10mm) |
|
|
600R160FPTC RESET FUSE 60V 160MA RADIAL |
2,492 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Bulk | Obsolete | Polymeric | 60V (600V Int) | 160 mA | 320 mA | 3 A | 10 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.201" (5.10mm) |
