PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMD2920P150TFAPTC RESET FUSE 33V 1.5A 2920 |
7,369 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.5 A | 3 A | 40 A | 2 s | 80 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
PTGL09AR150M3B51A0PTC RESET FUSE 56V 190MA RADIAL |
3,809 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 190 mA | 340 mA | 1.2 A | - | - | - | 15 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
|
SMD1812P260TFAPTC RESET FUSE 6V 2.6A 1812 |
2,940 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 40 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.051" (1.30mm) | - |
|
PTR060V0110-TR1PTC RESET FUSE 60V 1.1A RADIAL |
9,275 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.118" T (13.00mm x 3.00mm) | 0.709" (18.00mm) | - | 0.197" (5.00mm) |
|
0ZRN0450FF1EPTC RESET FUSE 16V 4.5A RADIAL |
3,552 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.201" (5.10mm) |
|
|
PTGL09AR220M6C61B0PTC RESET FUSE 140V 180MA RADIAL |
3,938 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 180 mA | 280 mA | 1 A | - | - | - | 22 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.378" Dia x 0.236" T (9.60mm x 6.00mm) | 0.614" (15.60mm) | - | 0.256" (6.50mm) |
|

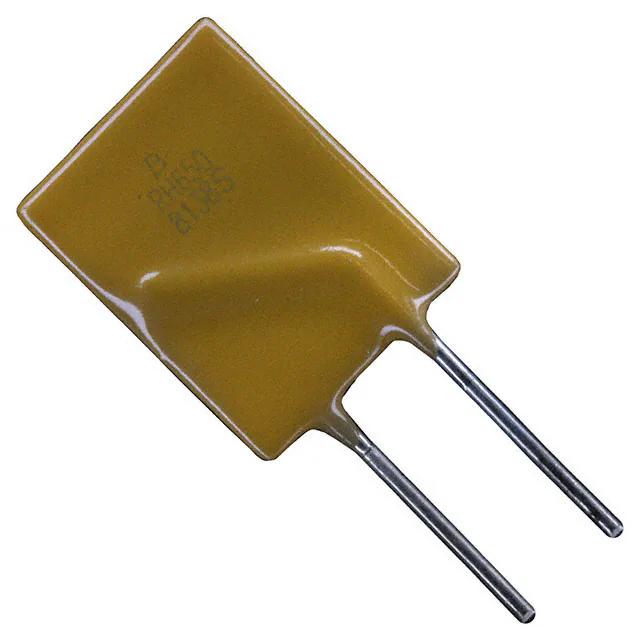

MF-RHT650-APPTC RESET FUSE 16V 6.5A RADIAL |
7,032 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.114" (2.90mm) |
|
MF-R600-APPTC RESET FUSE 30V 6A RADIAL |
5,347 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.760" L x 0.118" W (19.30mm x 3.00mm) | 1.256" (31.90mm) | - | 0.402" (10.20mm) |
|
MF-RHT600-APPTC RESET FUSE 16V 6A RADIAL |
3,638 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 21.5 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT500-2-14PTC 5.0A 16V RADIAL LEADED HI-TE |
8,151 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | 9 A | 100 A | 9 s | 17.5 mOhms | 45 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT550-2-14PTC 5.5A 16V RADIAL LEADED HI-TE |
3,843 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 15 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
|
MF-R500-0-14PTC RESETTABLE 5.0A 30V RADIAL L |
8,762 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
MF-RHT550-AP-14PTC 5.5A 16V RADIAL LEADED HI-TE |
6,279 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 15 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT500-AP-14PTC 5.0A 16V RADIAL LEADED HI-TE |
3,112 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 5 A | 9 A | 100 A | 9 s | 17.5 mOhms | 45 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
|
MF-RG300-APPTC RESET FUSE 16V 3A RADIAL |
2,724 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
MF-RG400-APPTC RESET FUSE 16V 4A RADIAL |
2,282 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.390" L x 0.118" W (9.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
RUEF900-1PTC RESET FUSE 30V 9A RADIAL |
9,240 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Obsolete | Polymeric | 30V | 9 A | 18 A | 100 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.120" W (24.10mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|
15LR380UPTC RESET FUSE 15V 3.8A STRAP |
5,356 |
|
Datasheet |
Strap | POLY-FUSE®, LR | Bulk | Obsolete | Polymeric | 15V | 3.8 A | 8.3 A | 100 A | 5 s | 13 mOhms | 37 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.283" W (25.00mm x 7.20mm) | - | 0.039" (1.00mm) | - |
|
24LT300UPTC RESET FUSE 24V 3A STRAP |
5,060 |
|
Datasheet |
Strap | POLY-FUSE®, LT | Bulk | Obsolete | Polymeric | 24V | 3 A | 6.3 A | 100 A | 4 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
16VT240UPTC RESET FUSE 16V 2.4A STRAP |
7,231 |
|
Datasheet |
Strap | POLY-FUSE®, VT | Bulk | Obsolete | Polymeric | 16V | 2.4 A | 5.4 A | 100 A | 4 s | 15 mOhms | 52 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.992" L x 0.201" W (25.20mm x 5.10mm) | - | 0.032" (0.80mm) | - |
