PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16VT270UPTC RESET FUSE 16V 2.7A STRAP |
2,978 |
|
Datasheet |
Strap | POLY-FUSE®, VT | Bulk | Obsolete | Polymeric | 16V | 2.7 A | - | 100 A | - | - | - | - | - | - | - | - | User Defined | - | - | - | - |
|
PTGL07AS3R3K3B51B0PTC RESET FUSE 51V 307MA RADIAL |
7,195 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | - | 51V | 307 mA | 606 mA | 3 A | - | - | - | - | - | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
BK130-1100-DZPTC RESET FUSE 130V 1.1A RAD |
9,044 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 1.1 A | 2.2 A | 10 A | 9 s | 300 mOhms | 500 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" Dia x 0.150" T (14.00mm x 3.80mm) | 0.638" (16.20mm) | - | 0.201" (5.10mm) |
|
|
BK130-1350-SZPTC RESET FUSE 130V 1.35A RAD |
5,633 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 1.35 A | 2.7 A | 10 A | 10 s | 200 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.520" L x 0.150" W (13.20mm x 3.80mm) | 0.984" (25.00mm) | - | 0.201" (5.10mm) |
|
PTR016V0400-TR1PTC RESET FUSE 16V 4A RADIAL |
7,035 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.122" W (8.90mm x 3.10mm) | 0.583" (14.80mm) | - | 0.197" (5.00mm) |
|
PTGL09AR4R7M3B51B0PTC RESET FUSE 56V 350MA RADIAL |
8,276 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 350 mA | 600 mA | 2 A | - | - | - | 4.7 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
|
2016L300/16MR-APTC 16V POLYFUSE SURF MOUNT 2016 |
2,275 |
|
Datasheet |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 5 A | 40 A | 10 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.063" (1.60mm) | - |
|
|
2016L260/24MR-APTC 24V POLYFUSE SURF MOUNT 2016 |
8,548 |
|
Datasheet |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 24V | 2.6 A | 5 A | 40 A | 5 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.063" (1.60mm) | - |
|
LVRL135SPTC RESET FUSE 120V 1.35A RADIAL |
9,915 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVRL | Bulk | Obsolete | Polymeric | 120V (135V Int) | 1.35 A | 2.7 A | 13.5 A | 20 s | 110 mOhms | 300 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.640" L x 0.160" W (16.30mm x 4.10mm) | 0.854" (21.70mm) | - | 0.200" (5.08mm) |
|

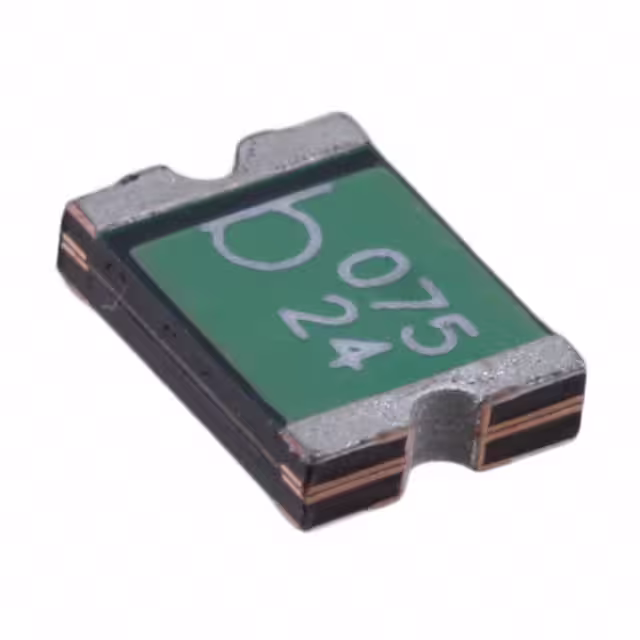

0ZCC0160BF2CPTC RESET FUSE 16V 1.6A 1812 |
5,930 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.35mm) | - |
|
|
0ZCC0200FF2CPTC RESET FUSE 8V 2A 1812 |
5,907 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
|
MF-RHT500-0-14PTC 5.0A 16V RADIAL LEADED HI-TE |
9,747 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 5 A | 9 A | 100 A | 9 s | 17.5 mOhms | 45 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
250S130-RCDRPTC RESET FUSE 60V 130MA 2SMD |
5,014 |
|
Datasheet |
2-SMD | POLY-FUSE®, 250S | Tape & Reel (TR) | Obsolete | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 1.1 s | 7 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.370" L x 0.291" W (9.40mm x 7.40mm) | - | 0.146" (3.70mm) | - |
|
|
250S130VDRPTC RESET FUSE 60V 130MA 2SMD |
9,829 |
|
Datasheet |
2-SMD | POLY-FUSE®, 250S | Tape & Reel (TR) | Obsolete | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2 s | 4 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.240" L x 0.272" W (6.10mm x 6.90mm) | - | 0.126" (3.20mm) | - |
|
RHEF750-APPTC RESET FUSE 16V 7.5A RADIAL |
8,106 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Box (TB) | Obsolete | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.199" (5.05mm) |
|
|
PTGL07AS121M0N51A0FD |
9,040 |
|
- |
Radial, Disc | POSISTOR®, PTGL | Bulk | Active | Ceramic | 280V | - | - | - | - | 96 Ohms | 144 Ohms | 120 Ohms | -40°C ~ 105°C | - | - | - | Through Hole | - | - | - | - |
|
|
PTR016V0700-TRPTC RESET FUSE 16V 7A RADIAL |
2,885 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 6 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.122" W (11.20mm x 3.10mm) | 0.776" (19.70mm) | - | 0.197" (5.00mm) |
|
|
PTGL09AR150M3B51B0PTC RESET FUSE 56V 190MA RADIAL |
9,306 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 190 mA | 340 mA | 1.2 A | - | - | - | 15 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
|
SMD2920P200TFAPTC RESET FUSE 15V 2A 2920 |
3,875 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 2 A | 4 A | 40 A | 5 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
SMD2920P185TFAPTC RESET FUSE 33V 1.85A 2920 |
5,455 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 65 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
