PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR060V0090-TR1PTC RESET FUSE 60V 900MA RADIAL |
9,337 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.118" T (11.70mm x 3.00mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
VTP210SUDFPTC RESET FUSE 16V 2.1A STRAP |
9,969 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Discontinued at Digi-Key | Polymeric | 16V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | - | - | - | - |
|
PTGL07AR470M3B51B0PTC RESET FUSE 47OHM 120C |
3,835 |
|
Datasheet |
Radial, Disc | Posistor® | Bulk | Obsolete | Ceramic | - | - | - | - | - | - | - | 47 Ohms | - | - | - | - | Through Hole | - | - | - | - |
|
|
PTGL07AR4R7M2P51B0PTC RESET FUSE 4.7OHM 120C |
3,269 |
|
Datasheet |
Radial, Disc | Posistor® | Bulk | Obsolete | Ceramic | - | - | - | - | - | - | - | 4.7 Ohms | - | - | - | - | Through Hole | - | - | - | - |
.jpg)
|
20LR450SUPTC RESET FUSE 20V 4.5A STRAP |
2,839 |
|
Datasheet |
Strap | POLY-FUSE®, LR | Bulk | Obsolete | Polymeric | 20V | 4.5 A | 8.9 A | 100 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.402" W (25.00mm x 10.20mm) | - | 0.039" (1.00mm) | - |
|
0ZRS0100FF2BPTC RESET FUSE 32V 1A RADIAL |
2,388 |
|
Datasheet |
Radial, Disc | 0ZRS | Tape & Reel (TR) | Active | Ceramic | 32V | 1 A | 1.9 A | 100 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
|
LTP260PTC RESET FUSE 24V 2.6A STRAP |
9,424 |
|
- |
Strap | PolySwitch®, LTP | Bulk | Obsolete | Polymeric | 24V | 2.6 A | 5.2 A | 100 A | 5 s | 25 mOhms | 76 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.447" W (25.00mm x 11.35mm) | - | 0.039" (1.00mm) | - |
|
|
LTP300PTC RESET FUSE 24V 3A STRAP |
5,958 |
|
Datasheet |
Strap | PolySwitch®, LTP | Bulk | Obsolete | Polymeric | 24V | 3 A | 6.3 A | 100 A | 4 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
|
LTP260FPTC RESET FUSE 24V 2.6A STRAP |
7,518 |
|
Datasheet |
Strap | PolySwitch®, LTP | Bulk | Obsolete | Polymeric | 24V | 2.6 A | 5.2 A | 100 A | 5 s | 25 mOhms | 76 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.447" W (25.00mm x 11.35mm) | - | 0.039" (1.00mm) | - |
|

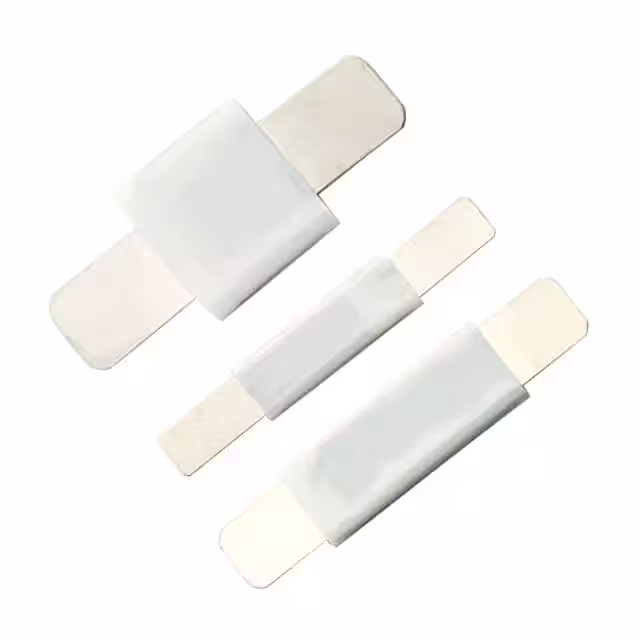

VLP220SLFPTC RESET FUSE 16V 2.2A STRAP |
9,717 |
|
Datasheet |
Strap | PolySwitch®, VLP | Bulk | Obsolete | Polymeric | 16V | 2.2 A | 5.3 A | 60 A | 5 s | 17 mOhms | 58 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.917" L x 0.154" W (23.30mm x 3.90mm) | - | 0.032" (0.80mm) | - |
|
|
VLP220UFPTC RESET FUSE 16V 2.2A STRAP |
8,030 |
|
Datasheet |
Strap | PolySwitch®, VLP | Bulk | Obsolete | Polymeric | 16V | 2.2 A | 5.3 A | 60 A | 5 s | 17 mOhms | 58 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.917" L x 0.154" W (23.30mm x 3.90mm) | - | - | - |
|
|
MF-SVS210N-0PTC RESET FUSE 10V 2.1A STRAP |
9,000 |
|
Datasheet |
Strap | Multifuse®, MF-SVS | Bulk | Active | Polymeric | 10V | 2.1 A | 5 A | 100 A | 5 s | 10 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.220" L x 0.148" W (31.00mm x 3.75mm) | - | 0.035" (0.90mm) | - |
|
|
MF-SVS230-0PTC RESET FUSE 10V 2.3A STRAP |
2,912 |
|
Datasheet |
Strap | Multifuse®, MF-SVS | Bulk | Active | Polymeric | 10V | 2.3 A | 5.2 A | 100 A | 5 s | 10 mOhms | 36 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.205" W (22.00mm x 5.20mm) | - | 0.035" (0.90mm) | - |
|
|
MF-RHT450-0-14PTC 4.5A 16V RADIAL LEADED HI-TE |
9,559 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT400-0-14PTC 4.0A 16V RADIAL LEADED HI-TE |
5,061 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 4 A | 7.5 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
PTGL07AS5R6K4B51A0PTC RESET FUSE 60V 290MA RADIAL |
2,627 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 60V | 290 mA | 386 mA | 3 A | - | - | - | 5.6 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
PTGL09AR1R8H2B51A0PTC RESET FUSE 30V 510MA RADIAL |
3,951 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 510 mA | 970 mA | 3 A | - | - | - | 1.8 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
AGRF800SPTC RESET FUSE 16V 8A RADIAL |
9,878 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Bulk | Obsolete | Polymeric | 16V | 8 A | 15 A | 100 A | 5.5 s | 4.9 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.200" (5.08mm) |
|
PTR016V0300-TR1PTC RESET FUSE 16V 3A RADIAL |
3,534 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 98 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.122" W (7.10mm x 3.10mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL07AS5R6K4N51A0PTC RESET FUSE 60V 236MA RADIAL |
2,039 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 60V | 236 mA | 314 mA | 2.2 A | - | - | - | 5.6 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
