PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16VT210LUPTC RESET FUSE 16V 2.1A STRAP |
2,669 |
|
Datasheet |
Strap | POLY-FUSE®, VT | Bulk | Obsolete | Polymeric | 16V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.201" W (25.00mm x 5.10mm) | - | 0.032" (0.80mm) | - |
|
AGRF700S-1PTC RESET FUSE 16V 7A RADIAL |
5,837 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Bulk | Obsolete | Polymeric | 16V | 7 A | 13.2 A | 100 A | 4 s | 6.6 mOhms | 20 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.200" (5.08mm) |
|
PTR030V0135-TR1PTC RESET FUSE 30V 1.35A RADIAL |
3,180 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
PTGL4SAS100K3B51A0PTC RESET FUSE 51V 213MA RADIAL |
4,390 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 213 mA | 283 mA | 1 A | - | - | - | 10 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) |
|
MF-RX014/250U-2PTC RESET FUSE 60V 145MA RADIAL |
2,409 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 145 mA | - | 3 A | - | 3.5 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.201" (5.10mm) |
|
MF-RX018/250U-2PTC - RADIAL LEADED |
4,878 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 180 mA | 500 mA | 10 A | 20 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.201" W (10.40mm x 5.10mm) | 0.496" (12.60mm) | - | 0.201" (5.10mm) |
|
MF-RHT450-APPTC RESET FUSE 16V 4.5A RADIAL |
7,162 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.114" (2.90mm) |
|
MF-RX300/72-APPTC RESET FUSE 72V 3A RADIAL |
3,178 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.122" W (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
MF-R250U-2PTC RESET FUSE 30V 2.5A RADIAL |
8,405 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
MF-R250U-APPTC RESET FUSE 30V 2.5A RADIAL |
6,492 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
MF-RHT300-APPTC RESET FUSE 16V 3A RADIAL |
5,243 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 3 A | 6 A | 100 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT400-APPTC RESET FUSE 16V 4A RADIAL |
4,740 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 4 A | 7.5 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT300-0-14PTC 3.0A 16V RADIAL LEADED HI-TE |
5,972 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 3 A | 6 A | 100 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT200-AP-17PTC 2.0A 16V RADIAL LEADED HI-TE |
5,639 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.550" (13.97mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT100-2-17PTC 1.0A 16V RADIAL LEADED HI-TE |
8,282 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
|
MF-R400-AP-14PTC RESETTABLE 4.0A 30V RADIAL L |
6,493 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT100-AP-17PTC 1.0A 16V RADIAL LEADED HI-TE |
5,620 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT200-2-17PTC 2.0A 16V RADIAL LEADED HI-TE |
6,620 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.550" (13.97mm) | - | 0.201" (5.10mm) |
|

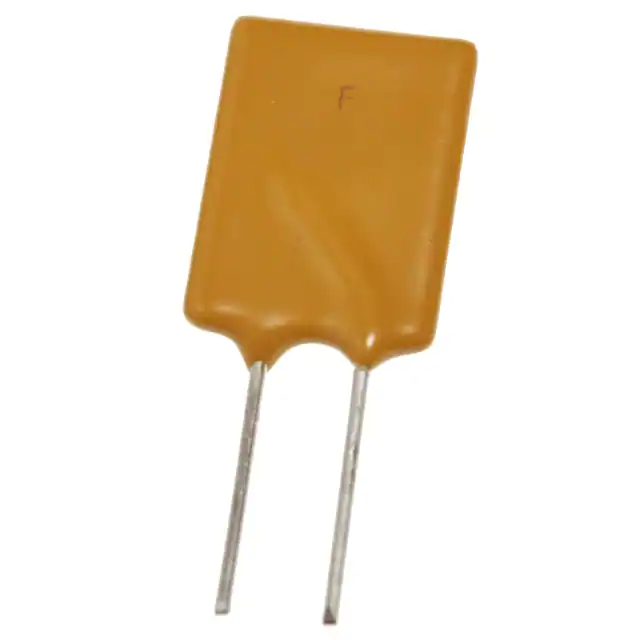

FRG600-16FRESETTABLE FUSE - PPTC RADIAL LE |
100 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 6 A | 10.2 A | 100 A | 5.8 s | 9 mOhms | 33 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
20LR450UPTC RESET FUSE 20V 4.5A STRAP |
6,239 |
|
Datasheet |
Strap | POLY-FUSE®, LR | Bulk | Obsolete | Polymeric | 20V | 4.5 A | 8.9 A | 100 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.402" W (25.00mm x 10.20mm) | - | 0.039" (1.00mm) | - |
