Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

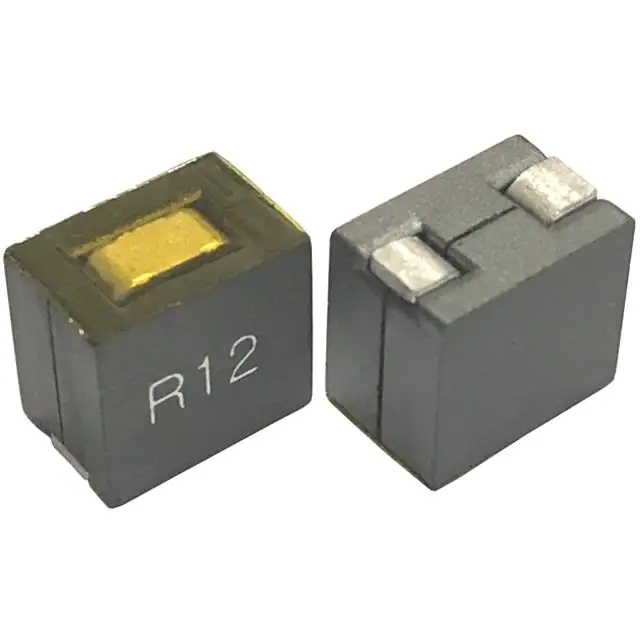

APMV00110812R25K0EINDUCTOR POWER |
2,250 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 250 nH | ±10% | 75 A | 66A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R27K0EINDUCTOR POWER |
2,224 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±10% | 75 A | 60A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R15K0EINDUCTOR POWER |
3,373 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 75 A | 115A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R25M0EINDUCTOR POWER |
1,190 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 250 nH | ±20% | 75 A | 66A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R18M0EINDUCTOR POWER |
2,833 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±20% | 75 A | 85A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R22M0EINDUCTOR POWER |
1,595 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±20% | 75 A | 75A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R25L0EINDUCTOR POWER |
2,476 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 250 nH | ±15% | 75 A | 66A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R18K0EINDUCTOR POWER |
2,597 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±10% | 75 A | 85A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R22K0EINDUCTOR POWER |
4,555 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 75 A | 75A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R22L0EINDUCTOR POWER |
1,987 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±15% | 75 A | 75A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R15L0EINDUCTOR POWER |
3,271 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±15% | 75 A | 115A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R32M0EINDUCTOR POWER |
1,394 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 320 nH | ±20% | 75 A | 51A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R32L0EINDUCTOR POWER |
4,155 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 320 nH | ±15% | 75 A | 51A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R30M0EINDUCTOR POWER |
3,597 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±20% | 75 A | 55A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R27M0EINDUCTOR POWER |
4,519 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±20% | 75 A | 60A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R32K0EINDUCTOR POWER |
2,806 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 320 nH | ±10% | 75 A | 51A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R30K0EINDUCTOR POWER |
3,471 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±10% | 75 A | 55A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
APMV00110812R30L0EINDUCTOR POWER |
3,940 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±15% | 75 A | 55A | Shielded | 0.15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
MLRF10M563KMIL MOLDED AXIAL RF COIL |
4,285 |
|
Datasheet |
MLRF10M | Axial | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±10% | 35 mA | - | Unshielded | 46Ohm Max | 30 @ 790kHz | 5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
MLRF10M473KMIL MOLDED AXIAL RF COIL |
4,604 |
|
Datasheet |
MLRF10M | Axial | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 36 mA | - | Unshielded | 42Ohm Max | 30 @ 790kHz | 6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
