Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP5-2R2-RFIXED IND 2.2UH 7.1A 14 MOHM SMD |
4,147 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 7.1 A | 16A | Unshielded | 14mOhm Max | - | 75MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
UP5-330-RFIXED IND 33UH 3A 66 MOHM SMD |
1,197 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3 A | 5.5A | Unshielded | 66mOhm Max | - | 11MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
UP5-331-RFIXED IND 330UH 1A 560 MOHM SMD |
4,542 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 1 A | 1.9A | Unshielded | 560mOhm Max | - | 3MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
UP5-3R3-RFIXED IND 3.3UH 6.2A 18 MOHM SMD |
2,119 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6.2 A | 14A | Unshielded | 18mOhm Max | - | 70MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
UP5-470-RFIXED IND 47UH 2.6A 86 MOHM SMD |
3,968 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.6 A | 4.5A | Unshielded | 86mOhm Max | - | 9MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
UP5-471-RFIXED IND 470UH 820MA 850MOHM SM |
4,487 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 820 mA | 1.4A | Unshielded | 850mOhm Max | - | 2.7MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
UP5-5R6-RFIXED IND 5.6UH 5.3A 20 MOHM SMD |
1,530 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 5.3 A | 12A | Unshielded | 20mOhm Max | - | 45MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
UP5-680-RFIXED IND 68UH 2.3A 130 MOHM SMD |
1,190 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2.3 A | 3.5A | Unshielded | 130mOhm Max | - | 6.5MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
UP5-681-RFIXED IND 680UH 720MA 1.1OHM SMD |
4,362 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 720 mA | 1.2A | Unshielded | 1.1Ohm Max | - | 2.2MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|

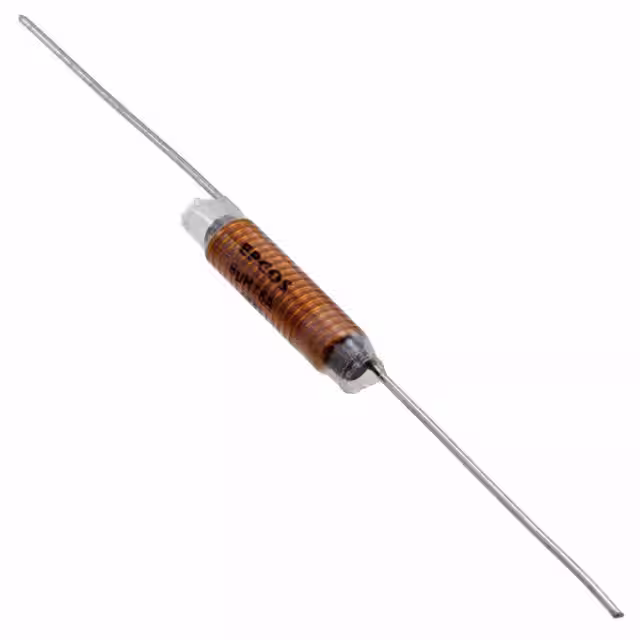

B82111B0000C017FIXED IND 6UH 6A 10 MOHM TH |
1,239 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 6 A | - | Unshielded | 10mOhm | - | 200MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.276" Dia x 0.965" L (7.00mm x 24.50mm) | - |
|

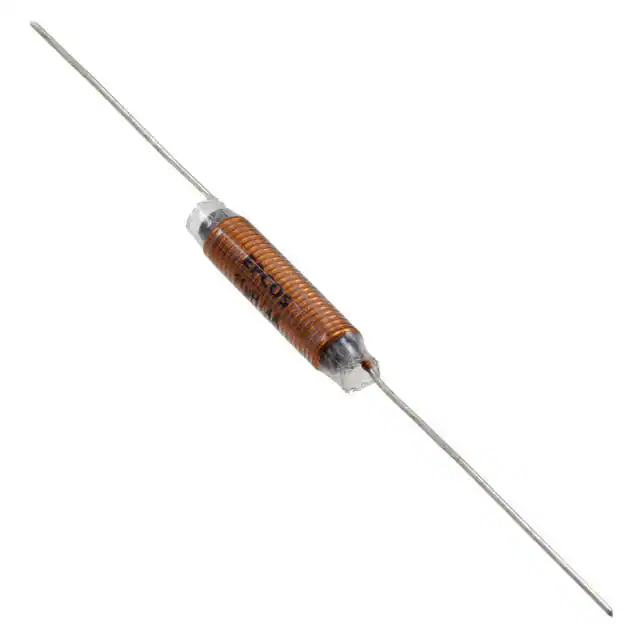

B82111B0000C018FIXED IND 11UH 4A 20 MOHM TH |
4,111 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 11 µH | ±20% | 4 A | - | Unshielded | 20mOhm | - | 150MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.965" L (6.50mm x 24.50mm) | - |
|
B82111B0000C019FIXED IND 13UH 3A 24 MOHM TH |
3,839 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 13 µH | ±20% | 3 A | - | Unshielded | 24mOhm | - | 170MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.965" L (6.50mm x 24.50mm) | - |
|
2101-HFIXED IND 10UH 10.8A 6 MOHM TH |
1,863 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 10 µH | ±15% | 10.8 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2103-HFIXED IND 15UH 7.7A 12 MOHM TH |
4,798 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 15 µH | ±15% | 7.7 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2105-HFIXED IND 22UH 7A 15 MOHM TH |
1,403 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 22 µH | ±15% | 7 A | - | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2107-HFIXED IND 33UH 5A 29 MOHM TH |
3,618 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 33 µH | ±15% | 5 A | - | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2109-HFIXED IND 47UH 3.6A 55 MOHM TH |
4,883 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 47 µH | ±15% | 3.6 A | - | Unshielded | 55mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2110-HFIXED IND 56UH 3.4A 60 MOHM TH |
4,563 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 56 µH | ±15% | 3.4 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2111-HFIXED IND 68UH 3.3A 67 MOHM TH |
3,165 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 68 µH | ±15% | 3.3 A | - | Unshielded | 67mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2112-HFIXED IND 100UH 2.4A 130 MOHM TH |
1,136 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 100 µH | ±15% | 2.4 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
