Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPIAIG-Q1030-R28M-TFIXED IND 280NH 35A 1.6MOHM SMD |
1,944 |
|
Datasheet |
ASPIAIG-Q1030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 280 nH | ±20% | 35 A | 58A | Shielded | 1.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|
|
ASPIAIG-Q1030-R56M-TFIXED IND 560NH 32A 2.75MOHM SMD |
4,621 |
|
Datasheet |
ASPIAIG-Q1030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 560 nH | ±20% | 32 A | 39A | Shielded | 2.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|
|
ASPIAIG-Q1030-R82M-TFIXED IND 820NH 25A 4.1MOHM SMD |
4,272 |
|
Datasheet |
ASPIAIG-Q1030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 820 nH | ±20% | 25 A | 32A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|
|
ASPIAIG-Q1030-R90M-TFIXED IND 900NH 24A 4.2MOHM SMD |
2,499 |
|
Datasheet |
ASPIAIG-Q1030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 900 nH | ±20% | 24 A | 31A | Shielded | 4.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|
|
10M100KLFMOLDED UNSHIELDED RF COILS AXIAL |
2,681 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 100 nH | ±10% | 1.35 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M180KMOLDED UNSHIELDED RF COILS AXIAL |
4,907 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 180 nH | ±10% | 1.105 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M100KMOLDED UNSHIELDED RF COILS AXIAL |
3,493 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 100 nH | ±10% | 1.35 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M270KMOLDED UNSHIELDED RF COILS AXIAL |
1,742 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 270 nH | ±10% | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M120KMOLDED UNSHIELDED RF COILS AXIAL |
1,235 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 120 nH | ±10% | 1.27 A | - | Unshielded | 90mOhm Max | 40 @ 25MHz | 640MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M270KLFMOLDED UNSHIELDED RF COILS AXIAL |
3,948 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 270 nH | ±10% | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M150KLFMOLDED UNSHIELDED RF COILS AXIAL |
3,037 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 150 nH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M220KMOLDED UNSHIELDED RF COILS AXIAL |
2,340 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 220 nH | ±10% | 1.025 A | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M150KMOLDED UNSHIELDED RF COILS AXIAL |
1,589 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 150 nH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M220KLFMOLDED UNSHIELDED RF COILS AXIAL |
3,926 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 220 nH | ±10% | 1.025 A | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
CTGS43F-100M10UH SMD UNSHLD POWER INDUCTOR |
1,709 |
|
Datasheet |
CTGS43F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | - | 1.15A | Unshielded | 182mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
CLF12555T-1R0NFIXED IND 1UH 7.5A 5.8 MOHM SMD |
1,351 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 7.5 A | 20A | Shielded | 5.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
CDRH80D65BT150NP-331MCFIXED IND 330UH 670MA 646MOHM SM |
3,825 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 670 mA | 770mA | Shielded | 646mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
IMC1812ER100JFIXED IND 10UH 250MA 1.6 OHM SMD |
1,864 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±5% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CDRH105RNP-2R2NCFIXED IND 2.2UH 7.5A 7.2MOHM SMD |
4,542 |
|
Datasheet |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 7.5 A | 9.25A | Shielded | 7.2mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.205" (5.20mm) |
|

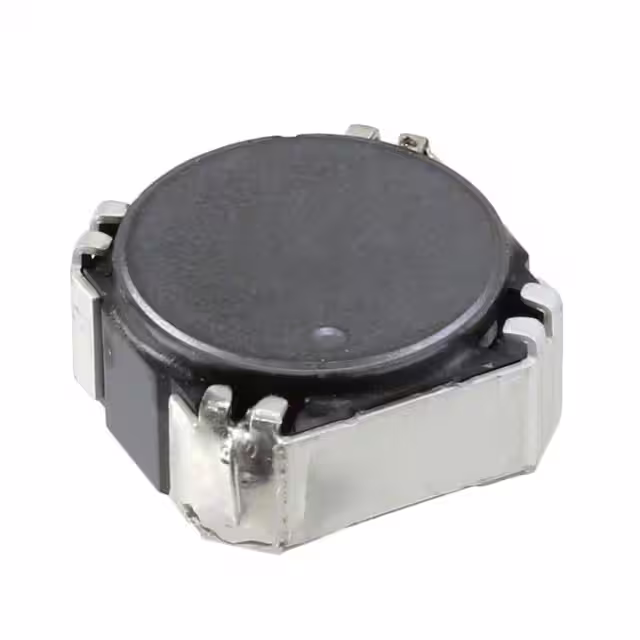

CDRH12D58/ANP-150MCFIXED IND 15UH 3.1A 29 MOHM SMD |
4,120 |
|
Datasheet |
CDRH12D58/A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 3.1 A | - | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
