Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH12D58/ANP-220MCFIXED IND 22UH 2.7A 42 MOHM SMD |
1,973 |
|
Datasheet |
CDRH12D58/A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.7 A | - | Shielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH12D58/ANP-330MCFIXED IND 33UH 2.2A 60 MOHM SMD |
4,506 |
|
Datasheet |
CDRH12D58/A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 2.2 A | - | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH12D58/ANP-470MCFIXED IND 47UH 1.8A 98 MOHM SMD |
3,611 |
|
Datasheet |
CDRH12D58/A | 4-SMD | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.8 A | - | Shielded | 98mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH12D58/ANP-120MCFIXED IND 12UH 3.7A 24 MOHM SMD |
3,539 |
|
Datasheet |
CDRH12D58/A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±20% | 3.7 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH12D58/ANP-180MCFIXED IND 18UH 2.9A 38 MOHM SMD |
1,862 |
|
Datasheet |
CDRH12D58/A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±20% | 2.9 A | - | Shielded | 38mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH12D58/ANP-680MCFIXED IND 68UH 1.6A 118 MOHM SMD |
1,692 |
|
Datasheet |
CDRH12D58/A | 4-SMD | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.6 A | - | Shielded | 118mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH12D58/ANP-100MCFIXED IND 10UH 3.8A 22 MOHM SMD |
1,876 |
|
Datasheet |
CDRH12D58/A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 3.8 A | - | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

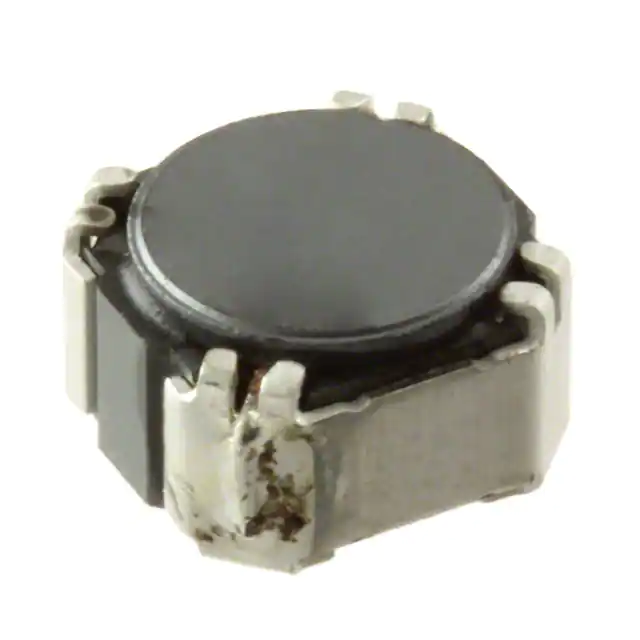

CDRH8D48/ANP-220MCFIXED IND 22UH 1.45A 88 MOHM SMD |
3,305 |
|
Datasheet |
CDRH8D48/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.45 A | - | Shielded | 88mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
CDRH8D48/ANP-470MCFIXED IND 47UH 1A 188 MOHM SMD |
1,896 |
|
Datasheet |
CDRH8D48/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1 A | - | Shielded | 188mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
CDRH8D48/ANP-100MCFIXED IND 10UH 2.26A 38 MOHM SMD |
2,566 |
|
Datasheet |
CDRH8D48/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 2.26 A | - | Shielded | 38mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
CDRH105RNP-1R5NCFIXED IND 1.5UH 8.3A 5.8MOHM SMD |
2,141 |
|
Datasheet |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 8.3 A | 10.5A | Shielded | 5.8mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
PA4302.102NLTFIXED IND 1UH 7.5A 20 MOHM SMD |
2,007 |
|
Datasheet |
PA4302.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 7.5 A | - | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.220" (5.60mm) |
|
|
PA4302.104NLTFIXED IND 100UH 1A 380.5MOHM SMD |
2,613 |
|
Datasheet |
PA4302.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | - | Shielded | 380.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.220" (5.60mm) |
|
|
PA4302.332NLTFIXED IND 3.3UH 5.6A 22.8MOHM SM |
2,045 |
|
Datasheet |
PA4302.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.6 A | - | Shielded | 22.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.220" (5.60mm) |
|
|
PA4302.334NLTFIXED IND 330UH 500MA 1.34OHM SM |
1,388 |
|
Datasheet |
PA4302.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 500 mA | - | Shielded | 1.34Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.220" (5.60mm) |
|
|
PA4302.472NLTFIXED IND 4.7UH 4.8A 26.8MOHM SM |
3,802 |
|
Datasheet |
PA4302.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.8 A | - | Shielded | 26.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.220" (5.60mm) |
|
|
PA4302.682NLTFIXED IND 6.8UH 4A 36.8 MOHM SMD |
1,850 |
|
Datasheet |
PA4302.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4 A | - | Shielded | 36.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.220" (5.60mm) |
|
|
PA4302.683NLTFIXED IND 68UH 1.2A 265 MOHM SMD |
4,844 |
|
Datasheet |
PA4302.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.2 A | - | Shielded | 265mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.220" (5.60mm) |
|

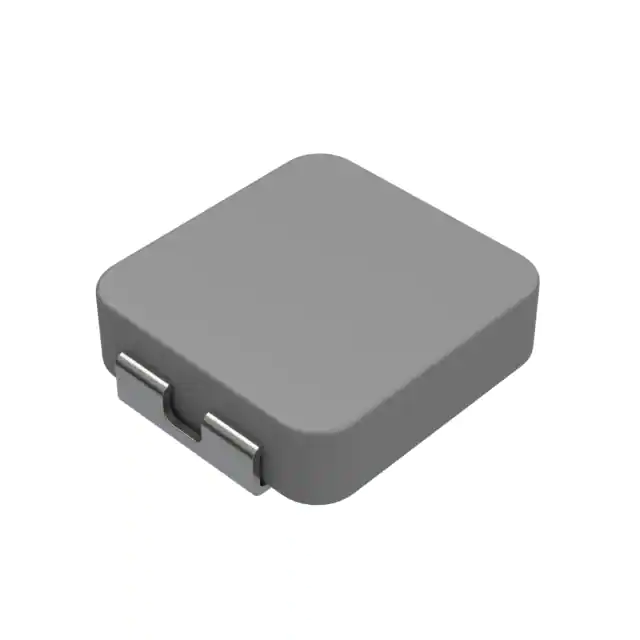

CMLB053T-R22MSFIXED IND 220NH 17A 3.9MOHM SMD |
1,670 |
|
Datasheet |
CMLB053T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 220 nH | ±20% | 17 A | 17A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.118" (3.00mm) |
|
PM4546.471NLTFIXED IND 470NH 6A 20 MOHM SMD |
4,819 |
|
Datasheet |
PM4546.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 6 A | 6.5A | Unshielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
