Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43NN471J03LFIXED IND 470UH 80MA 11.8OHM SMD |
2,181 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 80 mA | - | Unshielded | 11.8Ohm Max | 40 @ 796kHz | 3MHz | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

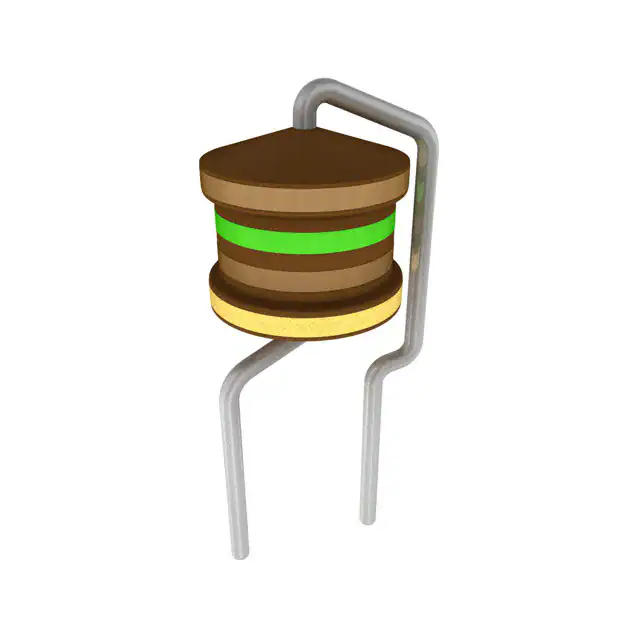

B82144B2154J000FIXED IND 150UH 1.05A 700MOHM TH |
1,718 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 1.05 A | 750mA | Unshielded | 700mOhm Max | 40 @ 79.6kHz | 4.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
CD30D22HF-1R0MCFIXED IND 1UH 3.46A 35.9MOHM SMD |
1,047 |
|
Datasheet |
CD30D22 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.46 A | 3.36A | Unshielded | 35.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.098" (2.50mm) |
|
|
CD30D22HF-2R2MCFIXED IND 2.2UH 2A 69.4MOHM SMD |
3,084 |
|
Datasheet |
CD30D22 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2 A | 2.08A | Unshielded | 69.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.098" (2.50mm) |
|
|
CD30D22HF-330MCFIXED IND 33UH 490MA 915MOHM SMD |
3,276 |
|
Datasheet |
CD30D22 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 490 mA | 570mA | Unshielded | 915mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.098" (2.50mm) |
|
MPL-AT2010-R47FIXED IND 470NH 4.4A 27 MOHM SMD |
2,131 |
|
Datasheet |
MPL-AT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 470 nH | - | 4.4 A | 5.7A | Unshielded | 27mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SP75-121KSMD POWER INDUCTOR |
3,829 |
|
Datasheet |
SP75 | 2-SMD | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 1.09 A | 1.12A | Shielded | 360mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Drum Core | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) | |
|
|
SP75-151KSMD POWER INDUCTOR |
3,750 |
|
Datasheet |
SP75 | 2-SMD | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.05 A | 1A | Shielded | 462mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Drum Core | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) | |
|
|
SP75-470KSMD POWER INDUCTOR |
2,264 |
|
Datasheet |
SP75 | 2-SMD | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.87 A | 1.75A | Shielded | 141mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Drum Core | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) | |
|
|
SP75-471KSMD POWER INDUCTOR |
3,071 |
|
Datasheet |
SP75 | 2-SMD | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 0.58 A | 0.56A | Shielded | 149.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Drum Core, Flat Wire | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) | |
|
|
SP75-180KSMD POWER INDUCTOR |
3,565 |
|
Datasheet |
SP75 | 2-SMD | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 3.07 A | 2.9A | Shielded | 62.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Drum Core | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) | |
|
|
PM5405.222NLTFIXED IND 2.2UH 16A 8 MOHM SMD |
3,610 |
|
Datasheet |
PM5405 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 16 A | 29A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
|
PM5405.333NLTFIXED IND 33UH 3.5A 160MOHM SMD |
2,355 |
|
Datasheet |
PM5405 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.5 A | 6A | Shielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
|
PM5405.152NLTFIXED IND 1.5UH 19A 5.5MOHM SMD |
3,946 |
|
Datasheet |
PM5405 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 19 A | 35A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
|
PM5405.562NLTFIXED IND 5.6UH 9.5A 22MOHM SMD |
3,668 |
|
Datasheet |
PM5405 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 9.5 A | 19A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
RCP1317NP-101MFIXED IND 100UH 2.3A 125 MOHM TH |
1,500 |
|
Datasheet |
RCP1317 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 2.3 A | 2.8A | Shielded | 125mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.531" Dia (13.50mm) | 0.689" (17.50mm) |
|
|
RCP1317NP-102LFIXED IND 1MH 820MA 1.18 OHM TH |
3,498 |
|
Datasheet |
RCP1317 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±15% | 820 mA | 900mA | Shielded | 1.18Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.531" Dia (13.50mm) | 0.689" (17.50mm) |
|
|
RCP1317NP-121LFIXED IND 120UH 2.2A 139 MOHM TH |
3,989 |
|
Datasheet |
RCP1317 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±15% | 2.2 A | 2.6A | Shielded | 139mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.531" Dia (13.50mm) | 0.689" (17.50mm) |
|
|
RCP1317NP-151LFIXED IND 150UH 1.9A 195 MOHM TH |
4,451 |
|
Datasheet |
RCP1317 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±15% | 1.9 A | 2.4A | Shielded | 195mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.531" Dia (13.50mm) | 0.689" (17.50mm) |
|
|
RCP1317NP-152LFIXED IND 1.5MH 720MA 1.4 OHM TH |
1,287 |
|
Datasheet |
RCP1317 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 1.5 mH | ±15% | 720 mA | 720mA | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.531" Dia (13.50mm) | 0.689" (17.50mm) |
