Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMRNJ10145GL331MNFIXED IND 330UH 640MA 840MOHM SM |
2,524 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 640 mA | 710mA | Shielded | 700mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LBRNJ10145GL220MNFIXED IND 22UH 2.3A 68.4MOHM SMD |
3,432 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.3 A | 2.87A | Shielded | 57mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LMRNJ10145GL1R0NNFIXED IND 1UH 8.9A 5.9 MOHM SMD |
4,589 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 8.9 A | 12.54A | Shielded | 4.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LMRNJ10145GL151MNFIXED IND 150UH 860MA 420MOHM SM |
3,650 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 860 mA | 1.11A | Shielded | 350mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LBRNJ10145GL470MNFIXED IND 47UH 1.5A 156 MOHM SMD |
3,483 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 2A | Shielded | 130mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|

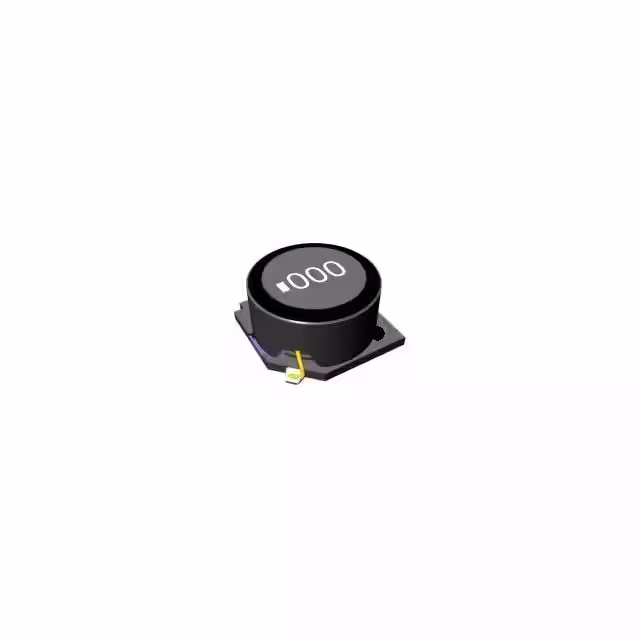

LMRNJ10145GL680MNFIXED IND 68UH 1.45A 180MOHM SMD |
1,465 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 1.45 A | 1.66A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LBRNJ10145GL150MNFIXED IND 15UH 3A 45.8 MOHM SMD |
3,875 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3 A | 3.44A | Shielded | 38.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LMRNJ10145GL221MNFIXED IND 220UH 780MA 612MOHM SM |
1,981 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 780 mA | 910mA | Shielded | 510mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LCRNJ10145GL2R2NNFIXED IND 2.2UH 6.64A 10.2 MOHM |
1,282 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 6.64 A | 8.91A | Shielded | 8.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LMRNJ10145GL1R5NNFIXED IND 1.5UH 7.99A 7.2MOHM SM |
3,467 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 7.99 A | 10.34A | Shielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LBRNJ10145GL221MNFIXED IND 220UH 780MA 612MOHM SM |
4,489 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 780 mA | 910mA | Shielded | 510mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LMRNJ10145GL5R6NNFIXED IND 5.6UH 4.45A 21.8 MOHM |
3,044 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±30% | 4.45 A | 5.85A | Shielded | 18.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LMRNJ10145GL471MNFIXED IND 470UH 520MA 1.236 OHM |
4,754 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 520 mA | 610mA | Shielded | 1.03Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LBRNJ10145GL3R3NNFIXED IND 3.3UH 6.1A 12 MOHM SMD |
1,641 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.1 A | 7.33A | Shielded | 10mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LCRNJ10145GL102MNFIXED IND 1MH 320MA 3.1 OHM SMD |
4,940 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±20% | 320 mA | 410mA | Shielded | 2.58Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LBRNJ10145GL151MNFIXED IND 150UH 860MA 420MOHM SM |
2,779 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 860 mA | 1.11A | Shielded | 350mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LMRNJ10145GL6R8NNFIXED IND 6.8UH 4.22A 27.6 MOHM |
2,076 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 4.22 A | 5.05A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LBRNJ10145GL1R5NNFIXED IND 1.5UH 7.99A 7.2MOHM SM |
1,042 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 7.99 A | 10.34A | Shielded | 6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LMRNJ10145GL470MNFIXED IND 47UH 1.5A 156 MOHM SMD |
1,984 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 2A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LMRNJ10145GL150MNFIXED IND 15UH 3A 45.8 MOHM SMD |
1,794 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3 A | 3.44A | Shielded | 38.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
