Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

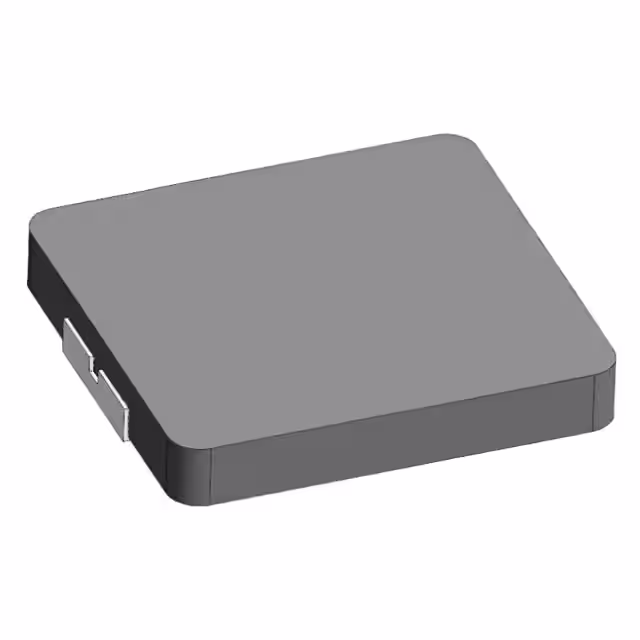

AMPLA7012S-1R2MTFIXED IND 1.2UH 5A 36 MOHM SMD |
4,964 |
|
Datasheet |
AMPLA7012S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.2 µH | ±20% | 5 A | 6.8A | Shielded | 36mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.047" (1.20mm) |
|
|
AMPLA7012S-1R5MTFIXED IND 1.5UH 4.5A 40 MOHM SMD |
4,782 |
|
Datasheet |
AMPLA7012S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 4.5 A | 6.5A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.047" (1.20mm) |
|
|
AMPLA7012S-100MTFIXED IND 10UH 1.8A 290 MOHM SMD |
4,019 |
|
Datasheet |
AMPLA7012S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 1.8 A | 2.5A | Shielded | 290mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.047" (1.20mm) |
|
|
AMPLA7012S-1R0MTFIXED IND 1UH 6A 30 MOHM SMD |
4,748 |
|
Datasheet |
AMPLA7012S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 6 A | 7A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.047" (1.20mm) |
|
|
AMPLA7012S-3R3MTFIXED IND 3.3UH 3.2A 103MOHM SMD |
2,684 |
|
Datasheet |
AMPLA7012S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 3.2 A | 4A | Shielded | 103mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.047" (1.20mm) |
|
PG0016.273NLFIXED IND 27UH 970MA 200MOHM SMD |
2,179 |
|
Datasheet |
PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±15% | 970 mA | 1.4A | Unshielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
27T154CFIXED IND 150UH 170MA 5 OHM SMD |
1,840 |
|
Datasheet |
2700T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 170 mA | - | Unshielded | 5Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.254" L x 0.213" W (6.45mm x 5.40mm) | 0.041" (1.05mm) |
|
|
PM5449.182NLTFIXED IND 1.8UH 12.5A 11MOHM SMD |
1,665 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 12.5 A | 13.5A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.681NLTFIXED IND 680NH 21A 3.8MOHM SMD |
1,804 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 21 A | 22A | Shielded | 3.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.223NLTFIXED IND 22UH 4.2A 113MOHM SMD |
3,026 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 4.2 A | 4.5A | Shielded | 113mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.821NLTFIXED IND 820NH 19A 4.4MOHM SMD |
4,720 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 19 A | 19A | Shielded | 4.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.471NLTFIXED IND 470NH 25A 2.8MOHM SMD |
1,523 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 25 A | 36A | Shielded | 2.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.472NLTFIXED IND 4.7UH 8.5A 26.5MOHM SM |
4,455 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 8.5 A | 10.5A | Shielded | 26.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.221NLTFIXED IND 220NH 30A 1.8MOHM SMD |
4,705 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 30 A | 55A | Shielded | 1.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.561NLTFIXED IND 560NH 22A 3.2MOHM SMD |
1,161 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 22 A | 23A | Shielded | 3.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.333NLTFIXED IND 33UH 3A 156 MOHM SMD |
2,691 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3 A | 3.3A | Shielded | 156mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.102NLTFIXED IND 1UH 17A 4.62 MOHM SMD |
4,971 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 17 A | 17A | Shielded | 4.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.103NLTFIXED IND 10UH 5.5A 59 MOHM SMD |
3,785 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.5 A | 7A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.331NLTFIXED IND 330NH 25A 2.4MOHM SMD |
3,012 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 25 A | 40A | Shielded | 2.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
|
|
PM5449.682NLTFIXED IND 6.8UH 7A 36.8MOHM SMD |
2,707 |
|
Datasheet |
PM5449.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 7 A | 8A | Shielded | 36.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.157" (4.00mm) |
