Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCRNJ10145GL331MNFIXED IND 330UH 640MA 840MOHM SM |
4,520 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 640 mA | 710mA | Shielded | 700mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LCRNJ10145GL4R7NNFIXED IND 4.7UH 5.03A 17.3 MOHM |
4,453 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 5.03 A | 6.69A | Shielded | 14.4mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LCRNJ10145GL470MNFIXED IND 47UH 1.5A 156 MOHM SMD |
3,707 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 2A | Shielded | 130mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|

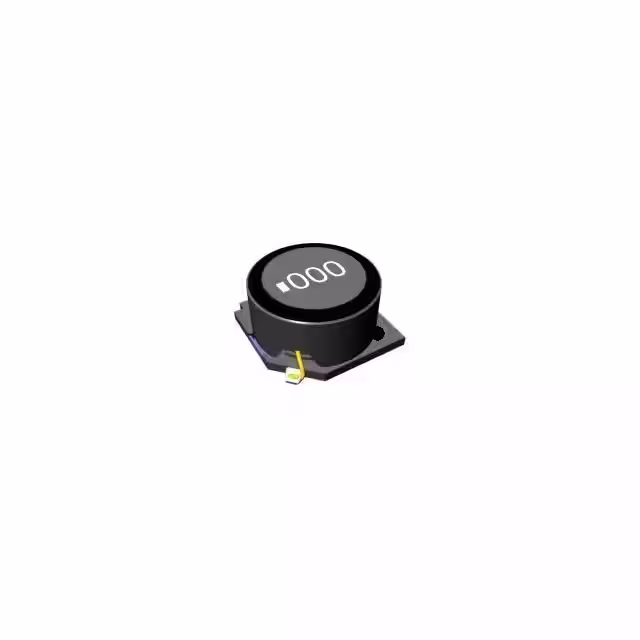

LCRNJ10145GL3R3NNFIXED IND 3.3UH 6.1A 12 MOHM SMD |
4,177 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.1 A | 7.33A | Shielded | 10mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LCRNJ10145GL5R6NNFIXED IND 5.6UH 4.45A 21.8 MOHM |
4,765 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±30% | 4.45 A | 5.85A | Shielded | 18.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LBRNJ10145GL681MNFIXED IND 680 UH 0.42A 1.89 OHM |
2,294 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 500mA | Shielded | 1.89Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
LMRNJ10145GL681MNFIXED IND 680 UH 0.42A 1.89 OHM |
4,175 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 500mA | Shielded | 1.57Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T681MNV8FIXED IND 680 UH 0.42A 1.89 OHM |
4,994 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 500mA | Shielded | 1.89Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T681MNVVFIXED IND 680 UH 0.42A 1.89 OHM |
3,445 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 420 mA | 500mA | - | 1.57Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
LCRNJ10145GL681MNFIXED IND 680 UH 0.42A 1.89 OHM |
1,242 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 420 mA | 500mA | - | 1.57Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
IDCS2512ER100MFIXED IND 10UH 1A 75 MOHM SMD |
2,875 |
|
Datasheet |
IDCS-2512 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
.JPG)
|
B82442H1225K000FIXED IND 2.2MH 75MA 28 OHM SMD |
1,651 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 75 mA | - | Unshielded | 28Ohm Max | 30 @ 252kHz | 1.2MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
ELL-6UH100MFIXED IND 10UH 1.8A 63 MOHM SMD |
2,629 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 1.8 A | - | Shielded | 63mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH120MFIXED IND 12UH 1.7A 71 MOHM SMD |
3,195 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±20% | 1.7 A | - | Shielded | 71mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH150MFIXED IND 15UH 1.6A 79 MOHM SMD |
3,087 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 1.6 A | - | Shielded | 79mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH180MFIXED IND 18UH 1.4A 88 MOHM SMD |
4,851 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 µH | ±20% | 1.4 A | - | Shielded | 88mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH220MFIXED IND 22UH 1.3A 98 MOHM SMD |
1,993 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 1.3 A | - | Shielded | 98mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH270MFIXED IND 27UH 1.2A 110 MOHM SMD |
2,412 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±20% | 1.2 A | - | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH330MFIXED IND 33UH 1.1A 130 MOHM SMD |
1,081 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 1.1 A | - | Shielded | 130mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH390MFIXED IND 39UH 1A 150 MOHM SMD |
1,172 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±20% | 1 A | - | Shielded | 150mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
