Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX150-2-52M-RFIXED IND 150UH 4.3A 71.9MOHM TH |
2,216 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 4.3 A | 4A | Unshielded | 71.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 1.280" (32.50mm) |
|
SWF-0.90-330FIXED IND 330UH 900MA 740MOHM TH |
1,539 |
|
Datasheet |
SW | Radial, Vertical Cylinder | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
CTX10-7-52M-RFIXED IND 10UH 11.4A 8 MOHM TH |
4,049 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 11.4 A | 13.5A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.051" (26.70mm) |
|
HMP1710-6R8IND SMD 6.8UH ASSEMBLY CHOKE |
2,628 |
|
Datasheet |
HMP1710 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 14 A | 25A | Unshielded | 5.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
HMP1710M-2R0IND SMD 2.0UH ASSEMBLY CHOKE |
3,991 |
|
Datasheet |
HMP1710 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2 µH | ±20% | 54 A | 37A | Unshielded | 1.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
HMP1710-4R7IND SMD 4.7UH ASSEMBLY CHOKE |
3,073 |
|
Datasheet |
HMP1710 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 22 A | 25A | Unshielded | 2.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
HMP1710-3R3IND SMD 3.3UH ASSEMBLY CHOKE |
2,391 |
|
Datasheet |
HMP1710 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 25 A | 27.5A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
CTX22-15557FIXED IND 1MH 1.3A 470 MOHM SMD |
1,737 |
|
Datasheet |
PFC | 10-SMD, Gull Wing | Bulk | Obsolete | Toroidal | Ferrite | 1 mH | - | 1.3 A | - | Unshielded | 470mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Surface Mount | 10-SMT | 1.252" L x 1.063" W (31.80mm x 27.00mm) | 0.516" (13.10mm) |
|
|
CTX750-1-52LP-RFIXED IND 750UH 1.8A 434 MOHM TH |
4,511 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±20% | 1.8 A | 2.4A | Unshielded | 434mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.685" (17.40mm) |
|

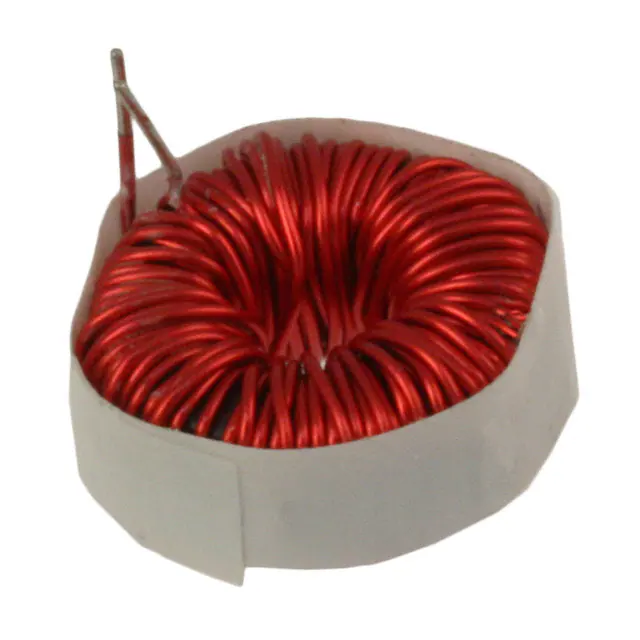

CTX16-18405-RFIXED IND 140UH 3.2A 190 MOHM TH |
4,347 |
|
Datasheet |
PFC | Radial, Horizontal, 4 Leads (Open) | Bulk | Obsolete | Toroidal | - | 140 µH | - | 3.2 A | - | Unshielded | 190mOhm Max | - | - | - | -20°C ~ 105°C | - | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.433" (11.00mm) |
|
|
F1F5-1707-4R7MHIGH POWER INDUCTOR4.7UH 27A 5.4 |
3,202 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F1F5-1707-3R3MHIGH POWER INDUCTOR3.3UH 32A 3.1 |
1,971 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F1F5-1707-6R8MHIGH POWER INDUCTOR6.8UH 21A 7.5 |
3,247 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CTX750-1-52-RFIXED IND 750UH 1.8A 434 MOHM TH |
1,325 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±20% | 1.8 A | 2.4A | Unshielded | 434mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.173" Dia x 0.685" W (29.80mm x 17.40mm) | - |
|
|
CTX1000-1-52LPRFIXED IND 1MH 1.5A 638 MOHM TH |
3,883 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±20% | 1.5 A | 2.1A | Unshielded | 638mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 1.228" (31.20mm) |
|
|
CTX1000-1-52-RFIXED IND 1MH 1.5A 638 MOHM TH |
2,442 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±20% | 1.5 A | 2.1A | Unshielded | 638mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.173" Dia x 0.461" W (29.80mm x 11.70mm) | - |
|
|
CTX20-7-52-RFIXED IND 20UH 11.4A 11 MOHM TH |
3,562 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 11.4 A | 14.5A | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.276" Dia x 0.780" W (32.40mm x 19.80mm) | - |
|
|
CTX250-2-52-RFIXED IND 250UH 4.2A 83.3MOHM TH |
1,485 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 4.2 A | 4.2A | Unshielded | 83.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.228" Dia x 0.748" W (31.20mm x 19.00mm) | - |
|
|
CTX20-7-52M-RFIXED IND 20UH 11.4A 11 MOHM TH |
3,738 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 11.4 A | 14.5A | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.346" (34.20mm) |
|
|
CTX500-2-52M-RFIXED IND 500UH 3.1A 183 MOHM TH |
1,234 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 3.1 A | 3.3A | Unshielded | 183mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 1.512" (38.40mm) |
