Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL-5480HC-5-1500FIXED IND 1500UH 1.15A 817MOHM T |
1,216 |
|
Datasheet |
RL-5480HC-5 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1.5 mH | ±10% | 1.15 A | 1.2A | Unshielded | 817mOhm Max | - | 880kHz | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 0.626" Dia (15.90mm) | 0.701" (17.80mm) |
|
|
RL-5480HC-5-68FIXED IND 68UH 5.05A 48MOHM TH |
1,521 |
|
Datasheet |
RL-5480HC-5 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 68 µH | ±10% | 5.05 A | 5.5A | Unshielded | 48mOhm Max | - | 4.7MHz | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 0.626" Dia (15.90mm) | 0.701" (17.80mm) |
|
PB2020.681NLFIXED IND 680NH 30A 1.8 MOHM SMD |
2,048 |
|
Datasheet |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 680 nH | ±20% | 30 A | 70A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
S1008-183KFIXED IND 18UH 200MA 5 OHM SMD |
2,957 |
|
Datasheet |
S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±10% | 200 mA | - | Shielded | 5Ohm Max | 30 @ 2.5MHz | 21MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HCP0605-R10-RFIXED IND 95NH 53A 0.4 MOHM SMD |
1,224 |
|
Datasheet |
HCP0605 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 95 nH | ±15% | 53 A | 20A | Unshielded | 0.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.240" W (5.30mm x 6.10mm) | 0.195" (4.95mm) |
|
|
HMP1360-1R0IND SMD 1.0UH ASSEMBLY CHOKE |
4,249 |
|
Datasheet |
HMP1360 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 35 A | 30A | Unshielded | 1.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.244" W (12.70mm x 6.20mm) | 0.531" (13.50mm) |
|
P1330R-822KFIXED IND 8.2UH 1.02A 180MOHM SM |
4,571 |
|
Datasheet |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±10% | 1.02 A | 600mA | Unshielded | 180mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
CTX10-1-52LP-RFIXED IND 10UH 2.4A 48.1 MOHM TH |
1,112 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 2.4 A | 2.1A | Unshielded | 48.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.339" Dia (8.60mm) | 0.185" (4.70mm) |
|
|
36-00030IND TOROID 1MH 1KHZ RDL |
4,146 |
|
Datasheet |
- | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 800 µH | - | 4 A | - | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial, Horizontal (Open) | 0.480" Dia (12.20mm) | 0.276" (7.00mm) |
|
|
CTX150-1-52LP-RFIXED IND 150UH 2.1A 162 MOHM TH |
2,846 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2.1 A | 2.3A | Unshielded | 162mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.815" Dia (20.70mm) | 0.370" (9.40mm) |
|
|
CTX10-5-52LP-RFIXED IND 10UH 8.7A 10.4 MOHM TH |
1,892 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 8.7 A | 11.1A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.874" Dia (22.20mm) | 0.547" (13.90mm) |
|
|
P1330R-154KFIXED IND 150UH 272MA 2.04OHM SM |
4,921 |
|
Datasheet |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±10% | 272 mA | 106mA | Unshielded | 2.04Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|

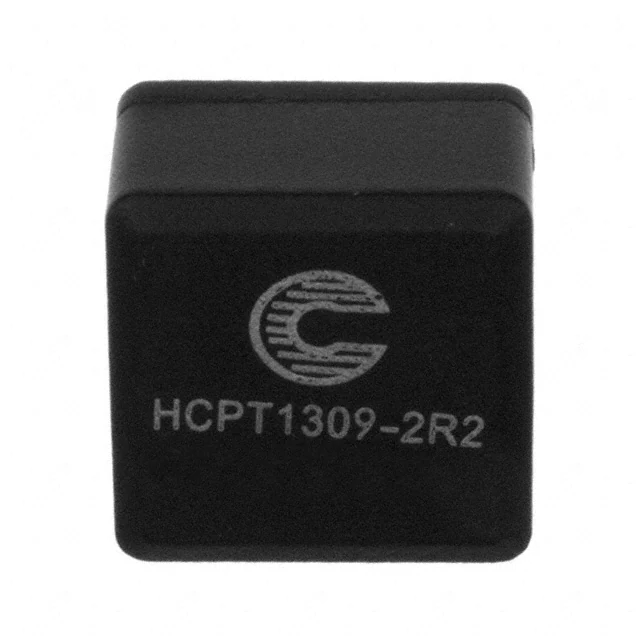

HCPT1309-2R2-RFIXED IND 2.27UH 12.5A 4.1 MOHM |
3,926 |
|
Datasheet |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 2.27 µH | ±20% | 12.5 A | 25A | Unshielded | 4.1mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.531" L x 0.465" W (13.50mm x 11.80mm) | 0.354" (9.00mm) |
|
HCPT1309-1R5-RFIXED IND 1.59UH 13.7A 3.82 MOHM |
4,954 |
|
Datasheet |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 1.59 µH | ±20% | 13.7 A | 30.6A | Unshielded | 3.82mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.531" L x 0.465" W (13.50mm x 11.80mm) | 0.354" (9.00mm) |
|
|
FP1010R3-R100-RIND FLAT PAC 100NH 63A 2 PADS |
3,993 |
|
Datasheet |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 78 A | 95A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.402" (10.20mm) |
|

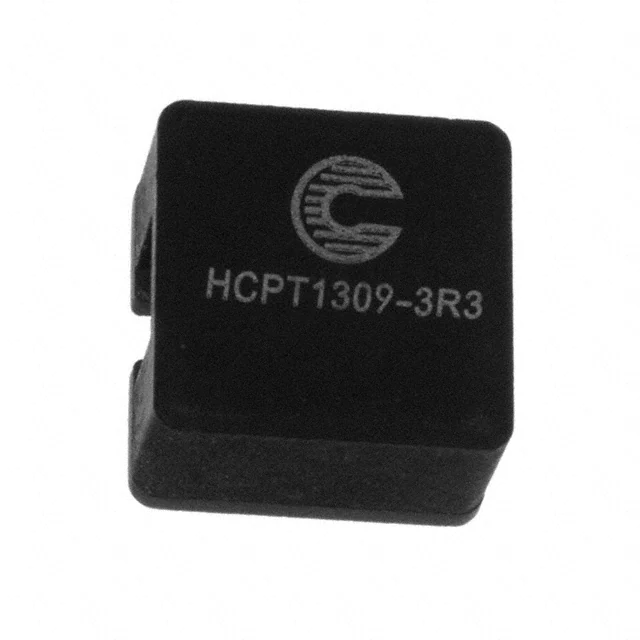

HCPT1309-3R3-RFIXED IND 3.31UH 11.4A 4.8 MOHM |
4,101 |
|
Datasheet |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 3.31 µH | ±20% | 11.4 A | 21A | Unshielded | 4.8mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.531" L x 0.465" W (13.50mm x 11.80mm) | 0.354" (9.00mm) |
|

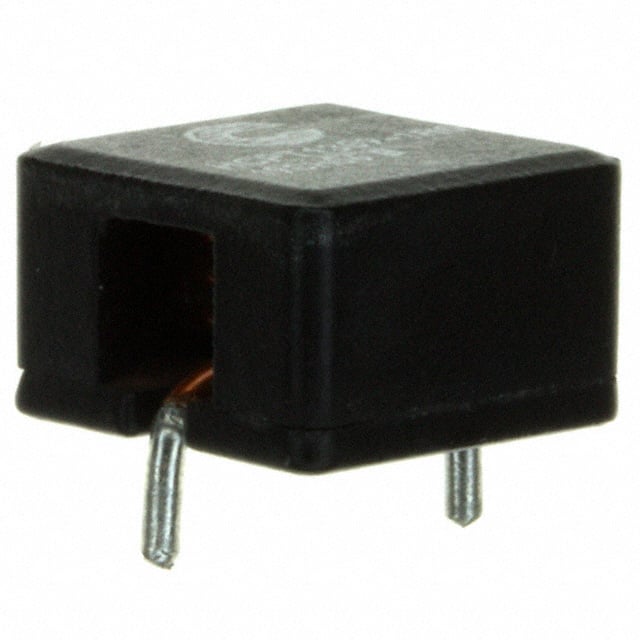

HCPT1309-1R0-RFIXED IND 960NH 19.4A 1.9MOHM TH |
3,528 |
|
Datasheet |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 960 nH | ±20% | 19.4 A | 40A | Unshielded | 1.9mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.539" L x 0.472" W (13.70mm x 12.00mm) | 0.354" (9.00mm) |
|
CTX10-2-52M-RFIXED IND 10UH 4.7A 18.3 MOHM TH |
4,339 |
|
Datasheet |
CTX | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 4.7 A | 4.5A | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.535" L x 0.449" W (13.60mm x 11.40mm) | 0.461" (11.70mm) |
|
|
CMLB177T-100MSIND SMD 10.0UH MOLDING CHOKE |
2,111 |
|
Datasheet |
CMLB177T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 13 A | 18.5A | Unshielded | 9.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|

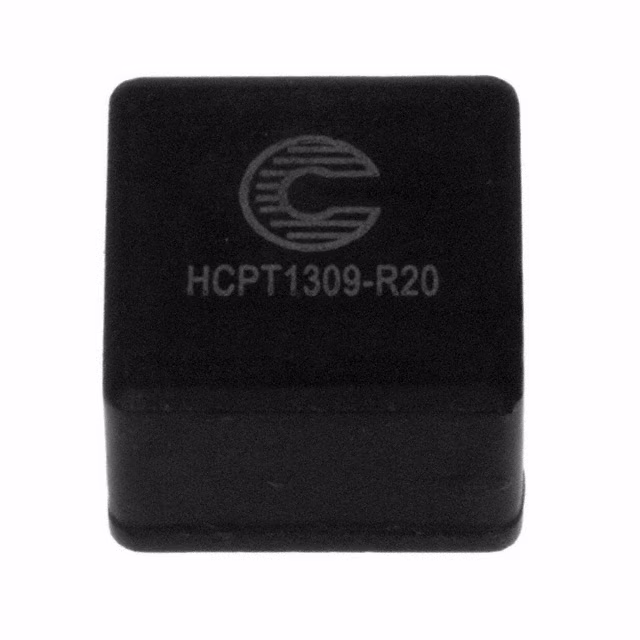

HCPT1309-R20-RFIXED IND 200NH 43.1A 0.426 MOHM |
4,538 |
|
Datasheet |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±20% | 43.1 A | 90A | Unshielded | 0.426mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.551" L x 0.480" W (14.00mm x 12.20mm) | 0.354" (9.00mm) |
