Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2510R-96KFIXED IND 1MH 20MA 108 OHM SMD |
3,355 |
|
Datasheet |
2510R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 20 mA | - | Unshielded | 108Ohm Max | 15 @ 790kHz | 2.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
VLBUC12060120R10LF4INDUCTOR |
3,876 |
|
Datasheet |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 nH | ±15% | 70 A | 132A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|

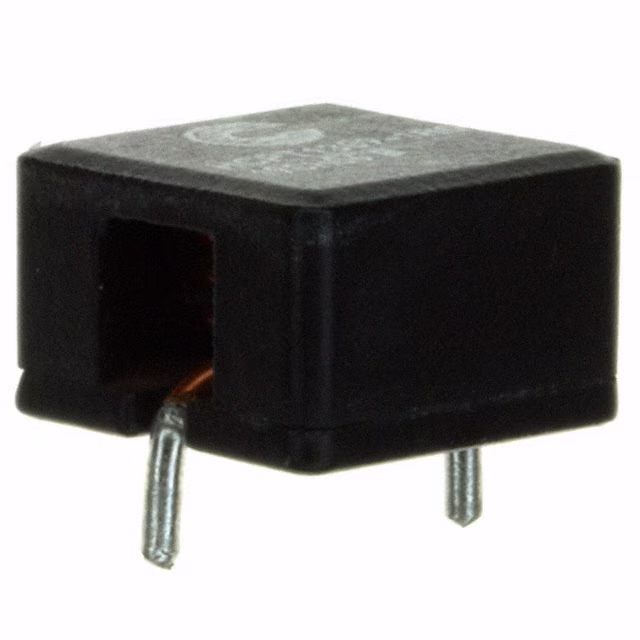

HCPT1309-R47-RFIXED IND 490NH 34A 0.624MOHM TH |
2,165 |
|
Datasheet |
HCPT1309 | Radial, Horizontal | Bulk | Active | Drum Core, Wirewound | Iron Powder | 490 nH | ±20% | 34 A | 55A | Unshielded | 0.624mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.551" L x 0.480" W (14.00mm x 12.20mm) | 0.354" (9.00mm) |
|
S1210R-563KFIXED IND 56UH 160MA 6.3 OHM SMD |
3,760 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±10% | 160 mA | - | Shielded | 6.3Ohm Max | 40 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
1537-90JFIXED IND 200UH 120MA 7.1 OHM TH |
3,483 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 200 µH | ±5% | 120 mA | - | Unshielded | 7.1Ohm Max | 65 @ 790kHz | 6.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
VLBUC12060120R08MF4INDUCTOR |
3,305 |
|
Datasheet |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 80 nH | ±20% | 70 A | 168A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
CTX20-5-52LP-RFIXED IND 20UH 7.8A 26 MOHM TH |
4,244 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 7.8 A | 9.3A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.965" Dia (24.50mm) | 0.654" (16.60mm) |
|
|
1945-39JFIXED IND 1MH 104MA 16.5 OHM TH |
2,308 |
|
Datasheet |
1945 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 mH | ±5% | 104 mA | - | Unshielded | 16.5Ohm Max | 60 @ 790kHz | 2.24MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.181" Dia x 0.433" L (4.59mm x 11.01mm) | - |
|
|
PGL7252HLTPOWER IND BEAD |
1,809 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±20% | 40 A | 24A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.484" L x 0.315" W (12.30mm x 8.00mm) | 0.236" (6.00mm) |
|
1025R-80KFIXED IND 330UH 45MA 28 OHM TH |
1,122 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 330 µH | ±10% | 45 mA | - | Unshielded | 28Ohm Max | 30 @ 790kHz | 7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

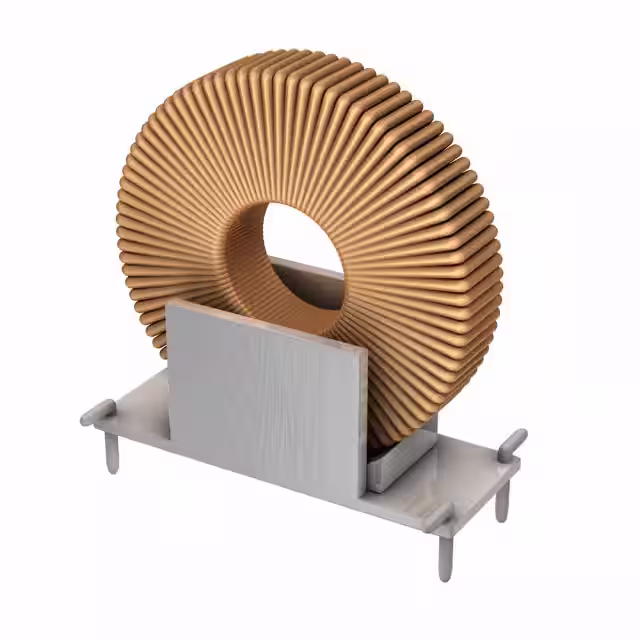

CTX150-1-52M-RFIXED IND 150UH 2.1A 162 MOHM TH |
3,182 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2.1 A | 2.3A | Unshielded | 162mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.772" L x 0.634" W (19.60mm x 16.10mm) | 0.953" (24.20mm) |
|
|
PGL7253HLTPOWER IND BEAD |
3,544 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±20% | 40 A | 24A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.720" L x 0.315" W (18.30mm x 8.00mm) | 0.236" (6.00mm) |
|
|
15M222KMOLDED UNSHIELDED RF COILS AXIAL |
3,176 |
|
Datasheet |
15M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 22 µH | ±10% | 175 mA | - | Unshielded | 2.5Ohm Max | 75 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
5022R-102JFIXED IND 1UH 1.125A 290MOHM SMD |
4,250 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 1 µH | ±5% | 1.125 A | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
SPD73R-223MFIXED IND 22UH 1.75A 190MOHM SMD |
2,719 |
|
Datasheet |
SPD73R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.75 A | 1.75A | Shielded | 190mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
IH05BQ5R0KFIXED IND 5UH 14A 12 MOHM TH |
3,849 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 14 A | 25A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.625" Dia x 0.875" L (15.88mm x 22.23mm) | - |
|
|
SRP1770CC-150MIND SMD 15UH 14A |
2,087 |
|
Datasheet |
SRP1770CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 15 µH | ±20% | 14 A | 23A | Shielded | 19.5mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
PGL7254HLTPOWER IND BEAD |
1,889 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±20% | 40 A | 24A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.959" L x 0.315" W (24.35mm x 8.00mm) | 0.236" (6.00mm) |
|
2200LL-220-H-RCFIXED IND 22UH 12.6A 8 MOHM TH |
2,183 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 22 µH | ±15% | 12.6 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
SRP1513CA-4R7MIND,16.5X15.5X12.7MM,4.7UH20%,31 |
2,835 |
|
Datasheet |
SRP1513CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 31 A | 44A | Shielded | 3.3mOhm Max | 40 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
