Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1538M08FIXED IND 5UH 14A 9 MOHM TH |
1,275 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 5 µH | ±10% | 14 A | - | Unshielded | 9mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.640" Dia x 0.880" L (16.26mm x 22.35mm) | - |
|

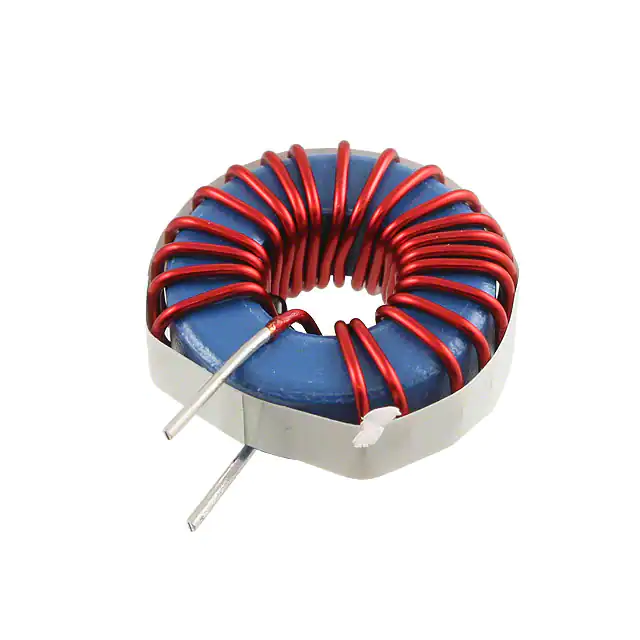

CTX50-7-52-RFIXED IND 50UH 10.5A 16.3MOHM TH |
1,938 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 10.5 A | 10.2A | Unshielded | 16.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.535" Dia x 0.661" W (39.00mm x 16.80mm) | - |
|
|
1538M13FIXED IND 100UH 6.8A 38 MOHM TH |
3,665 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 6.8 A | - | Unshielded | 38mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.380" L (22.35mm x 35.05mm) | - |
|
|
1538M21FIXED IND 5UH 23A 4 MOHM TH |
4,132 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 5 µH | ±10% | 23 A | - | Unshielded | 4mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.720" Dia x 1.380" L (18.29mm x 35.05mm) | - |
|
1140-560K-RCFIXED IND 56UH 12A 19 MOHM TH |
2,741 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 12 A | 27.6A | Unshielded | 19mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.028" (26.10mm) |
|
MPX1D2213L100FIXED IND 10UH 34A 4.4 MOHM SMD |
1,284 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 34 A | 36A | Shielded | 4.4mOhm Max | - | 5.2MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L101FIXED IND 100UH 10A 47.4MOHM SMD |
3,608 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 µH | ±20% | 10 A | 10.5A | Shielded | 47.4mOhm Max | - | 1.6MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
1538M19FIXED IND 68UH 10A 23 MOHM TH |
3,623 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | 10 A | - | Unshielded | 23mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.380" L (23.88mm x 35.05mm) | - |
|
|
1140-392K-RCFIXED IND 3.9MH 1.8A 845 MOHM TH |
1,186 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 1.8 A | 3.3A | Unshielded | 845mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
1540M02FIXED IND 25UH 5.5A 14 MOHM TH |
1,711 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 25 µH | ±15% | 5.5 A | - | Unshielded | 14mOhm Max | - | - | - | - | - | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
|
1540M10FIXED IND 1MH 1.5A 980 MOHM TH |
2,370 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 1 mH | ±15% | 1.5 A | - | Unshielded | 980mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | - |
|
7443783533220FIXED IND 22UH 23.2A 8.8 MOHM TH |
2,106 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±20% | 23.2 A | 49.4A | Shielded | 8.8mOhm Max | - | 8.15MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
|
1538M23FIXED IND 27UH 15A 10 MOHM TH |
3,331 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 27 µH | ±10% | 15 A | - | Unshielded | 10mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.380" L (25.40mm x 35.05mm) | - |
|

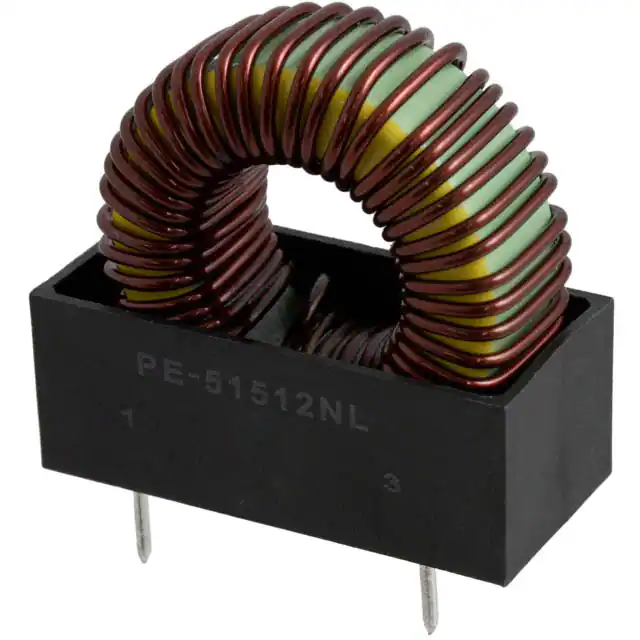

PE-51512NLFIXED IND 90UH 10A 28 MOHM TH |
1,973 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 90 µH | - | 10 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.950" L x 0.910" W (49.53mm x 23.11mm) | 2.000" (50.80mm) |
|
MPXV1D2213L4R7FIXED IND 4.7UH 48A 2.2 MOHM SMD |
2,548 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 48 A | 40A | Shielded | 2.2mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|

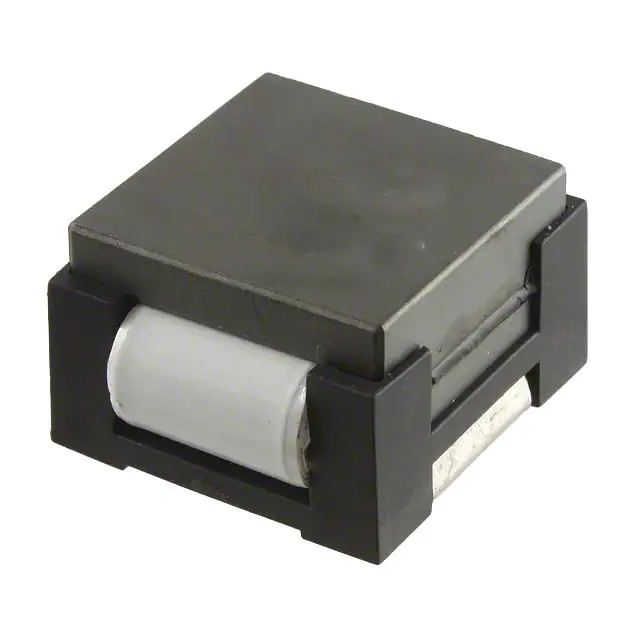

HC3-3R3-RFIXED IND 3.3UH 42.45A 1.2 MOHM |
1,823 |
|
Datasheet |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 42.45 A | 46A | Unshielded | 1.2mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
|
1540M17FIXED IND 500UH 4A 150 MOHM TH |
3,670 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 500 µH | ±15% | 4 A | - | Unshielded | 150mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | - |
|
|
1540M12FIXED IND 150UH 4.75A 46 MOHM TH |
3,624 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 4.75 A | - | Unshielded | 46mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - |
|
|
1538M14FIXED IND 150UH 6.3A 46 MOHM TH |
2,109 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 150 µH | ±10% | 6.3 A | - | Unshielded | 46mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.620" L (22.35mm x 41.15mm) | - |
|
|
1538M18FIXED IND 50UH 10.5A 20 MOHM TH |
2,523 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 10.5 A | - | Unshielded | 20mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.380" L (23.88mm x 35.05mm) | - |
