Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1538M06FIXED IND 150UH 4.6A 69 MOHM TH |
1,770 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 150 µH | ±10% | 4.6 A | - | Unshielded | 69mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.810" Dia x 1.380" L (20.57mm x 35.05mm) | - |
|
DFSG-25-0001FIXED IND 2A 260 MOHM TH |
2,406 |
|
Datasheet |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 2 A | - | - | 260mOhm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 0.886" L x 0.886" W (22.50mm x 22.50mm) | - |
|
744156FIXED IND 380UH 6.2A 70 MOHM TH |
3,106 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 380 µH | ±20% | 6.2 A | 2A | Unshielded | 70mOhm Max | - | 1.5MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.732" Dia x 0.610" W (44.00mm x 15.50mm) | - |
|
|
744155FIXED IND 220UH 7.1A 60 MOHM TH |
1,460 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 220 µH | ±20% | 7.1 A | 2A | Unshielded | 60mOhm Max | - | 4.7MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.693" Dia x 0.591" W (43.00mm x 15.00mm) | - |
|
74436411500FIXED IND 15UH 36A 1.441MOHM SMD |
3,083 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±15% | 36 A | 14.3A | Shielded | 1.441mOhm Max | - | 10.73MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
|
744154FIXED IND 172UH 6.5A 55 MOHM TH |
3,994 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 172 µH | ±20% | 6.5 A | 2A | Unshielded | 55mOhm Max | - | 3.1MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.260" Dia x 0.610" W (32.00mm x 15.50mm) | - |
|
1120-680K-RCFIXED IND 68UH 4.8A 53 MOHM TH |
3,963 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 4.8 A | - | Unshielded | 53mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1538M07FIXED IND 250UH 4A 89 MOHM TH |
3,352 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 250 µH | ±10% | 4 A | - | Unshielded | 89mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.810" Dia x 1.620" L (20.57mm x 41.15mm) | - |
|
TCK-089FIXED IND 33UH 880MA 230MOHM SMD |
3,073 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 33 µH | ±20% | 880 mA | - | Unshielded | 230mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
1538M16FIXED IND 10UH 16A 8 MOHM TH |
3,620 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | 16 A | - | Unshielded | 8mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.380" L (23.88mm x 35.05mm) | - |
|
5716-RCFIXED IND 125UH 7.75A 32 MOHM TH |
3,114 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 125 µH | ±15% | 7.75 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | - |
|

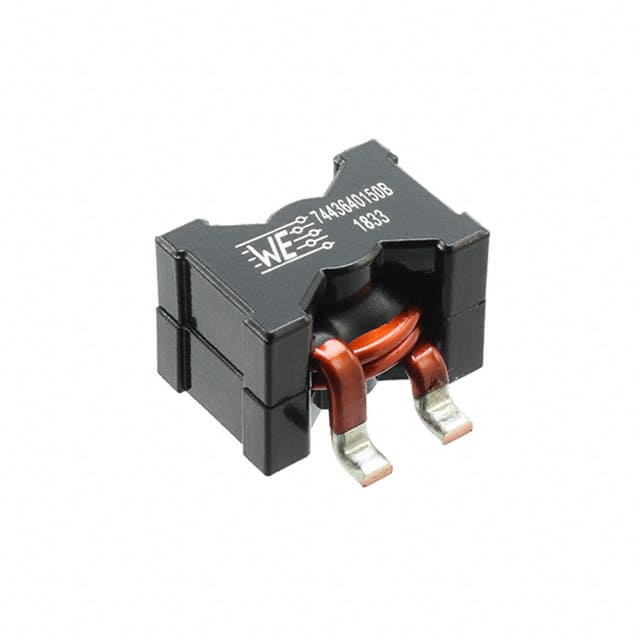

7443640150BFIXED IND 1.5UH 56A 0.484MOHM SM |
1,051 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1.5 µH | ±20% | 56 A | 91.8A | Shielded | 0.484mOhm Max | - | 37.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|
|
1538M09FIXED IND 10UH 12A 12 MOHM TH |
3,668 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | 12 A | - | Unshielded | 12mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.640" Dia x 1.120" L (16.26mm x 28.45mm) | - |
|

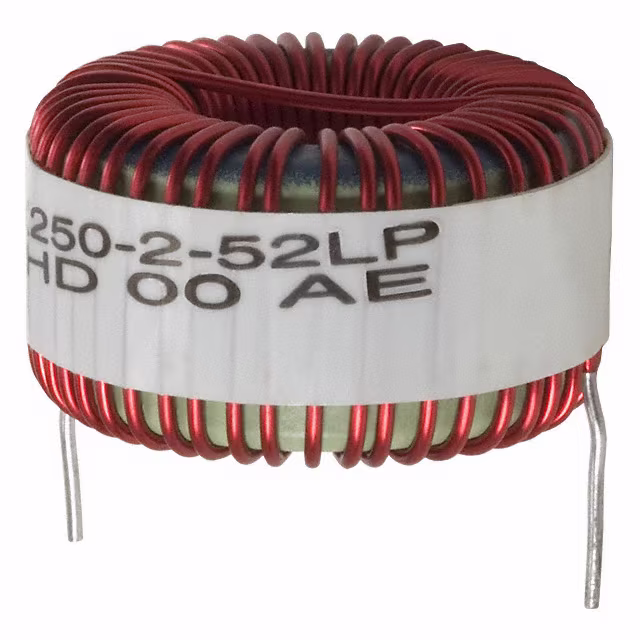

CTX250-2-52LP-RFIXED IND 250UH 4.2A 83.3MOHM TH |
1,974 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 4.2 A | 4.2A | Unshielded | 83.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.228" Dia (31.20mm) | 0.748" (19.00mm) |
|
|
1538M17FIXED IND 27UH 12.5A 14 MOHM TH |
3,688 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 27 µH | ±10% | 12.5 A | - | Unshielded | 14mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.120" L (23.88mm x 28.45mm) | - |
|
DC780R-333KFIXED IND 33UH 5.5A 29 MOHM TH |
2,034 |
|
Datasheet |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 5.5 A | 19A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
IHTH1125KZEB100M5AFIXED IND 10UH 33A 3.64 MOHM TH |
3,923 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 10 µH | ±20% | 33 A | 30A | Shielded | 3.64mOhm Max | - | 7.76MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
|
IHTH1125KZEB4R7M5AFIXED IND 4.7UH 50A 1.82 MOHM TH |
4,514 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 4.7 µH | ±20% | 50 A | 52A | Shielded | 1.82mOhm Max | - | 11.36MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
|
IHTH1125KZEB470M5AFIXED IND 47UH 14A 14.6 MOHM TH |
1,802 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 47 µH | ±20% | 14 A | 16.2A | Shielded | 14.6mOhm Max | - | 2.99MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
.jpg)
|

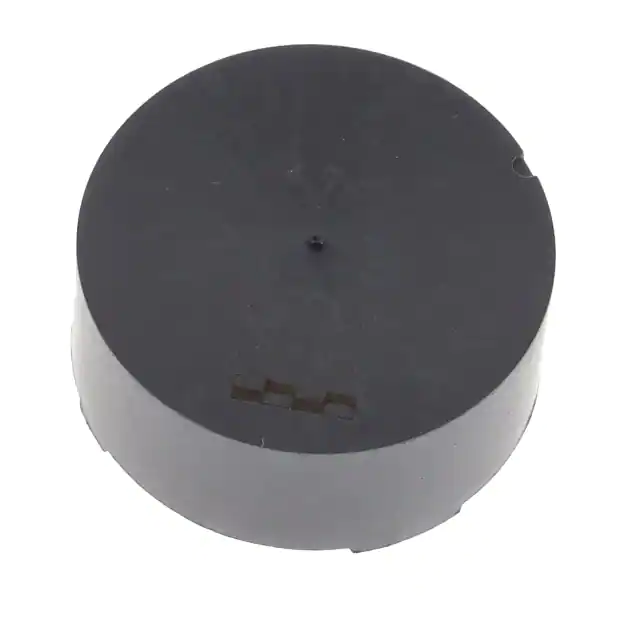

IHTH1125MZEB4R7M5AFIXED IND 4.7UH 44.5A 2 MOHM TH |
2,469 |
|
Datasheet |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tube | Active | - | - | 4.7 µH | ±20% | 44.5 A | 62A | Shielded | 2mOhm Max | - | 11.36MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
