Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
157JFIXED IND 10H 65MA 205 OHM CHASS |
3,336 |
|
Datasheet |
157 | Nonstandard | Bulk | Active | - | - | 10 H | ±15% | 65 mA | - | Unshielded | 205Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
|
157QFIXED IND 3.5H 150MA 98 OHM CHAS |
4,407 |
|
Datasheet |
157 | Nonstandard | Bulk | Active | - | - | 3.5 H | ±15% | 150 mA | - | Unshielded | 98Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
194FFIXED IND 5H 120MA CHAS MNT |
3,029 |
|
Datasheet |
194 | - | Bulk | Active | - | - | 5 H | - | 120 mA | - | - | - | - | - | - | - | - | - | Chassis Mount | - | 2.573" L x 2.188" W (65.35mm x 55.58mm) | 2.625" (66.68mm) |
|
|
157GFIXED IND 30H 40MA 595 OHM CHASS |
4,995 |
|
Datasheet |
157 | Nonstandard | Bulk | Active | - | - | 30 H | ±15% | 40 mA | - | Unshielded | 595Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
159QFIXED IND 7H 150MA 100 OHM CHASS |
2,814 |
|
Datasheet |
159 | Nonstandard | Bulk | Active | - | - | 7 H | ±15% | 150 mA | - | Unshielded | 100Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|

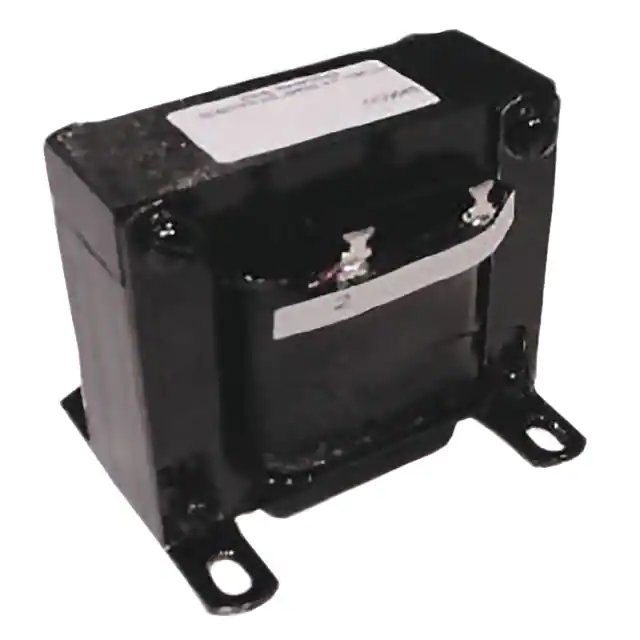

CH-2FIXED IND 70MH 2A 900 MOHM CHASS |
2,088 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 70 mH | - | 2 A | - | Unshielded | 900mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.374" L x 2.752" W (85.70mm x 69.90mm) | 2.874" (73.00mm) |
|
|
159MFIXED IND 15H 100MA 256 OHM CHAS |
3,027 |
|
Datasheet |
159 | Nonstandard | Bulk | Active | - | - | 15 H | ±15% | 100 mA | - | Unshielded | 256Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
194EFIXED IND 30H 100MA 517.2 OHM |
4,925 |
|
Datasheet |
194 | Nonstandard | Box | Active | - | - | 30 H | ±15% | 100 mA | - | Unshielded | 517.2Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.000" L x 2.085" W (101.60mm x 52.96mm) | 2.620" (66.55mm) |
|
|
194DFIXED IND 5H 150MA 107.2 OHM |
1,245 |
|
Datasheet |
194 | Nonstandard | Box | Active | - | - | 5 H | ±15% | 150 mA | - | Unshielded | 107.2Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.188" L x 2.447" W (55.58mm x 62.15mm) | 2.625" (66.68mm) |
|
|
194CFIXED IND 40H 50MA 420.2 OHM |
2,539 |
|
Datasheet |
194 | Nonstandard | Box | Active | - | - | 40 H | ±15% | 50 mA | - | Unshielded | 420.2Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.500" L x 2.781" W (63.50mm x 70.64mm) | 3.000" (76.20mm) |
|
197AB25FIXED IND 150UH 25A 0.01OHM SMD |
4,921 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 150 µH | ±15% | 25 A | - | Unshielded | 10mOhm | - | 1.45MHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|

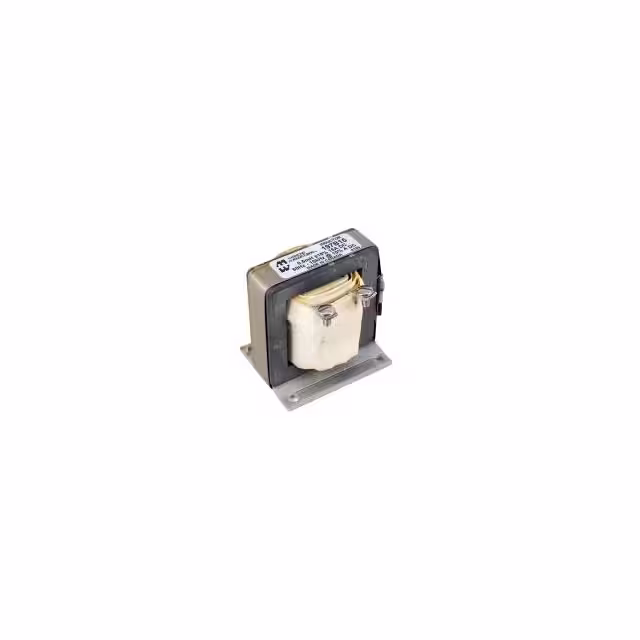

197B15FIXED IND 500UH 15A 0.039OHM SMD |
3,986 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 500 µH | ±15% | 15 A | - | Unshielded | 39mOhm | - | 812.3kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|

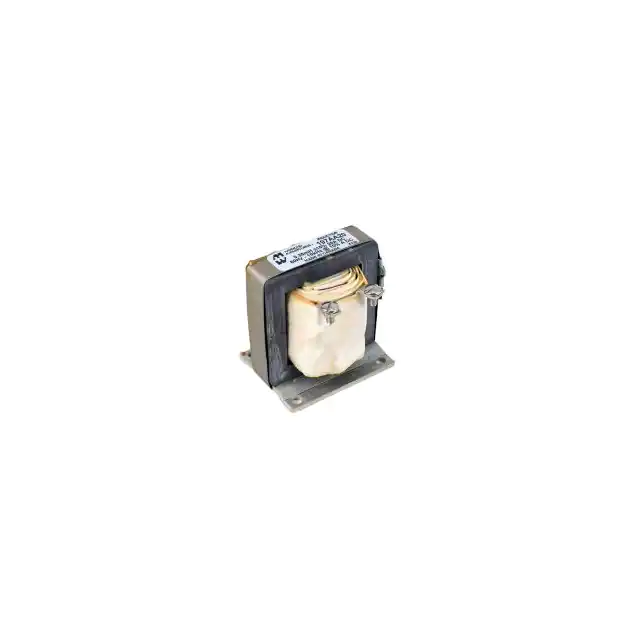

197AA20FIXED IND 250UH 20A 0.014OHM SMD |
4,170 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 250 µH | ±15% | 20 A | - | Unshielded | 14mOhm | - | 1.19MHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.050" L x 2.500" W (77.47mm x 63.50mm) | 3.376" (85.75mm) |
|

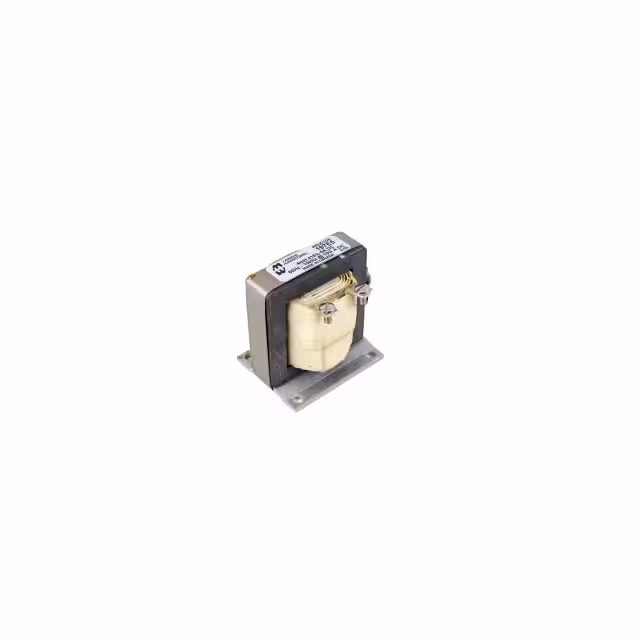

197E5FIXED IND 4MH 5A 0.232OHM SMD |
3,891 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 4 mH | ±15% | 5 A | - | Unshielded | 232mOhm | - | 250.5kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|
193KFIXED IND 2.6H 300MA 21 OHM CHAS |
1,946 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 2.6 H | ±15% | 300 mA | - | Unshielded | 21Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.125" (79.38mm) |
|
|
193GFIXED IND 10H 150MA 102 OHM CHAS |
4,782 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 150 mA | - | Unshielded | 102Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 3.130" W (82.55mm x 79.50mm) | 3.810" (96.77mm) |
|
|
193NFIXED IND 3H 500MA 35 OHM CHASS |
1,057 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 3 H | ±15% | 500 mA | - | Unshielded | 35Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|
|
193LFIXED IND 5H 300MA 57 OHM CHASS |
2,448 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 5 H | ±15% | 300 mA | - | Unshielded | 57Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|
197E10FIXED IND 3.5MH 10A 0.096OHM SMD |
4,068 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 3.5 mH | ±15% | 10 A | - | Unshielded | 96mOhm | - | 129.55kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|

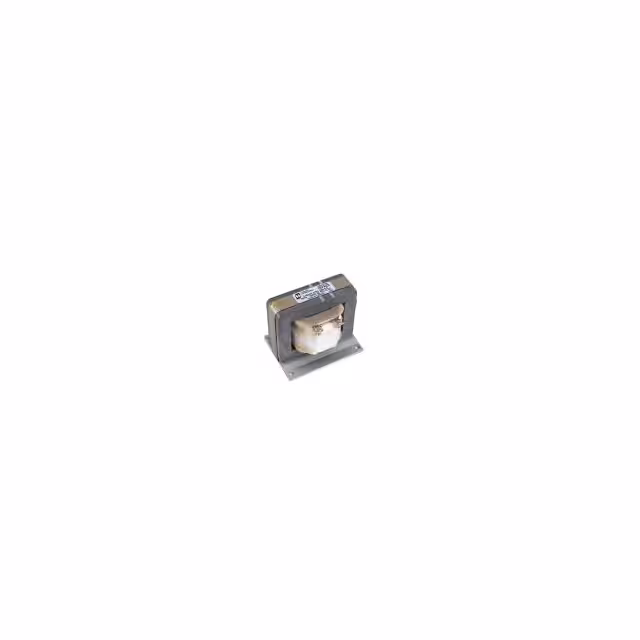

197A25FIXED IND 480UH 25A 0.011OHM SMD |
3,995 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 480 µH | ±15% | 25 A | - | Unshielded | 11mOhm | - | 504kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.950" (100.33mm) |
