Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2120-181K-RCFIXED IND 180UH 5.3A 47 MOHM SMD |
3,259 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 180 µH | ±10% | 5.3 A | - | Unshielded | 47mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.830" (21.08mm) |
|
PQ2614BHA-2R2KFIXED IND 2.2UH 30A 1.9 MOHM SMD |
4,255 |
|
Datasheet |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 30 A | - | Shielded | 1.9mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
PG0936.452NLFIXED IND 4.5UH 22A 2.9 MOHM SMD |
3,180 |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 4.5 µH | ±20% | 22 A | 22A | Unshielded | 2.9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
FIT68-6FIXED IND 24.31UH 6.8A 20.2 MOHM |
4,958 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 24.31 µH | - | 6.8 A | - | Unshielded | 20.2mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
S1210R-392KFIXED IND 3.9UH 441MA 830MOHM SM |
1,124 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±10% | 441 mA | - | Shielded | 830mOhm Max | 40 @ 7.9MHz | 42MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
744323120FIXED IND 1.2UH 12A 6.6 MOHM SMD |
3,079 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 12 A | 15A | Shielded | 6.6mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|
2200HT-181-H-RCFIXED IND 180UH 4.6A 82 MOHM TH |
3,026 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 180 µH | ±15% | 4.6 A | - | Shielded | 82mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
2200HT-101-V-RCFIXED IND 100UH 5.3A 61 MOHM TH |
4,894 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 5.3 A | - | Shielded | 61mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
1840-30KFIXED IND 10UH 455MA 600 MOHM TH |
2,393 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75101 | Axial | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±10% | 455 mA | - | Unshielded | 600mOhm Max | 35 @ 7.9MHz | 42MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
2100HT-680-V-RCFIXED IND 68UH 5.1A 44 MOHM TH |
4,282 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 68 µH | ±15% | 5.1 A | - | Shielded | 44mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
FIT80-2FIXED IND 107.5UH 4.8A 67.9 MOHM |
4,057 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 107.5 µH | - | 4.8 A | - | Unshielded | 67.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
|

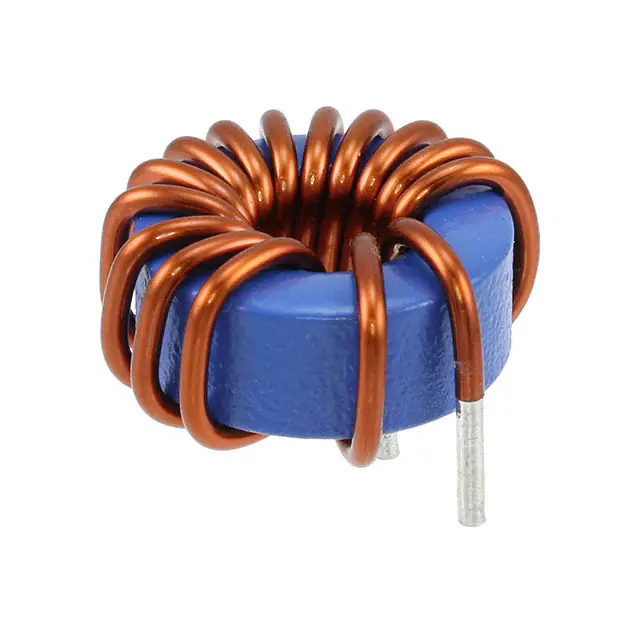

S14100034FIXED IND 22UH 18A 4.5 MOHM TH |
2,596 |
|
Datasheet |
WE-FI | Radial, Horizontal (Open) | Tray | Active | Toroidal | Ferrite | 22 µH | ±20% | 18 A | - | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.378" Dia (35.00mm) | 0.689" (17.50mm) |
|
IHLE5050FHER680M5AFIXED IND 68UH 4.9A 105.6MOHM SM |
1,230 |
|
Datasheet |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 4.9 A | 4.6A | Shielded | 105.6mOhm Max | - | 3.4MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
1415517CFIXED IND 1.5MH 1.7A 374MOHM TH |
2,847 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1.5 mH | ±10% | 1.7 A | - | Unshielded | 374mOhm Max | 28 @ 50kHz | 700kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.917" (23.30mm) |
|
|
1433445CFIXED IND 330UH 4.5A 91 MOHM TH |
4,307 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 330 µH | ±10% | 4.5 A | - | Unshielded | 91mOhm Max | 25 @ 50kHz | 1.6MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.252" Dia (31.80mm) | 0.917" (23.30mm) |
|
|
1430450CFIXED IND 300UH 5A 80 MOHM TH |
4,845 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 300 µH | ±10% | 5 A | - | Unshielded | 80mOhm Max | 28 @ 50kHz | 1.7MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.917" (23.30mm) |
|
|
1468431CFIXED IND 680UH 3.1A 173MOHM TH |
2,304 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 680 µH | ±10% | 3.1 A | - | Unshielded | 173mOhm Max | 60 @ 10kHz | 1MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.917" (23.30mm) |
|
|
2306-H-RCFIXED IND 27UH 15.6A 8 MOHM TH |
3,987 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 27 µH | ±15% | 15.6 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2319-H-RCFIXED IND 390UH 5A 72 MOHM TH |
4,021 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 390 µH | ±15% | 5 A | - | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2322-H-RCFIXED IND 680UH 3.4A 150 MOHM TH |
3,145 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 680 µH | ±15% | 3.4 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
