Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4590R-474KFIXED IND 470UH 1.3A 393 MOHM TH |
1,444 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.3 A | 800mA | Unshielded | 393mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
7447019WE-FI LEADED TOROIDAL LINE CHOKE |
2,337 |
|
Datasheet |
WE-FI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | Iron Powder | 700 µH | ±20% | 5.1 A | - | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.496" Dia x 0.677" W (38.00mm x 17.20mm) | - |
|
1008R-471KFIXED IND 470NH 846MA 210MOHM SM |
1,661 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±10% | 846 mA | - | Unshielded | 210mOhm Max | 40 @ 25MHz | 215MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|

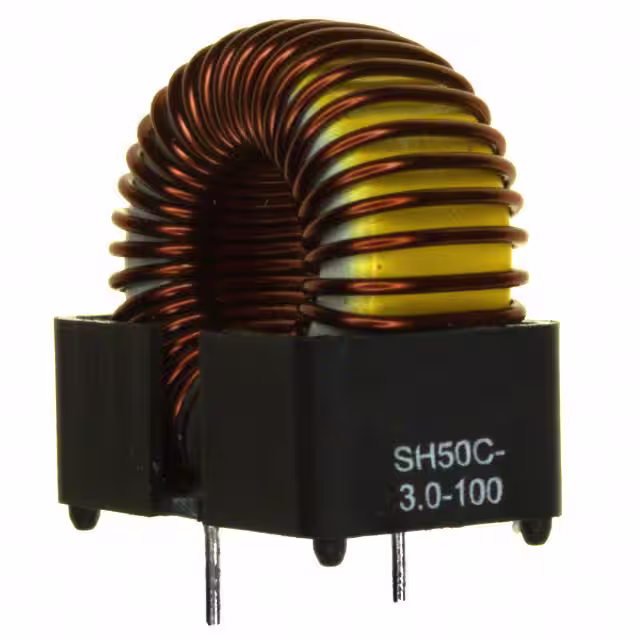

SH50C-3.0-100FIXED IND 100UH 3A 40 MOHM TH |
2,975 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 100 µH | ±20% | 3 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|

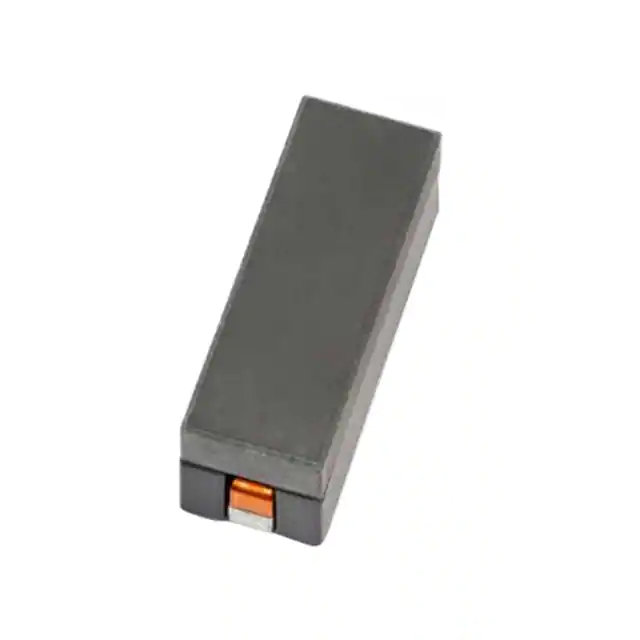

FP2207R1-R230-RFIXED IND 230NH 50A 470 MOHM SMD |
4,892 |
|
Datasheet |
FP2207 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 230 nH | ±10% | 50 A | 72A | Shielded | 0.47mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.870" L x 0.311" W (22.10mm x 7.90mm) | 0.285" (7.25mm) |
|
2300HT-151-H-RCFIXED IND 150UH 7.5A 50 MOHM TH |
3,986 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 7.5 A | - | Shielded | 50mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-221-H-RCFIXED IND 220UH 6.8A 61 MOHM TH |
2,534 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 6.8 A | - | Shielded | 61mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
5707-RCFIXED IND 75UH 5A 40 MOHM TH |
4,995 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 75 µH | ±15% | 5 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | - |
|
78439370068WE-XHMA SMT POWER INDUCTOR 1510; |
4,749 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 15 A | 40.05A | Shielded | 4.1mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
7443630700FIXED IND 7UH 21A 5.61 MOHM SMD |
4,376 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 7 µH | ±15% | 21 A | 30A | Shielded | 5.61mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.551" (14.00mm) |
|
2474R-21LFIXED IND 47UH 1.84A 104 MOHM TH |
2,266 |
|
Datasheet |
2474R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±15% | 1.84 A | 930mA | Unshielded | 104mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
B82559A5332A020FIXED IND 3.3UH 1.5 MOHM SMD |
4,963 |
|
Datasheet |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | - | 34A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.571" (14.50mm) |
|
B82559B3222A027FIXED IND 2.2UH 46.5A 0.68 MOHM |
2,024 |
|
Datasheet |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 46.5 A | 68A | Shielded | 0.68mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.545" (13.85mm) |
|
IHLP8787MZER220M51FIXED IND 22UH 17.5A 10.8MOHM SM |
4,597 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 17.5 A | 16A | Shielded | 10.8mOhm Max | - | 3.88MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
B82559B7103A027FIXED IND 10UH 33A 1.92 MOHM SMD |
1,204 |
|
Datasheet |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 33 A | 34.8A | Shielded | 1.92mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.679" (17.25mm) |
|
1812R-104FFIXED IND 100UH 158MA 8 OHM SMD |
1,893 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±1% | 158 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
74437429203680FIXED IND 68UH 11.2A 22.2MOHM SM |
2,232 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 68 µH | ±20% | 11.2 A | 10.7A | Shielded | 22.2mOhm | - | 5.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437529203151FIXED IND 150UH 9.2A 30.6MOHM SM |
1,526 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 150 µH | ±20% | 9.2 A | 7.2A | Shielded | 30.6mOhm | - | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
B82559B7153A027FIXED IND 15UH 33A 1.92 MOHM SMD |
3,339 |
|
Datasheet |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 33 A | 22.9A | Shielded | 1.92mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.679" (17.25mm) |
|
7443640100BFIXED IND 1UH 56A 0.484 MOHM SMD |
3,155 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1 µH | ±20% | 56 A | 125A | Shielded | 0.484mOhm Max | - | 53.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
