Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF10040T-4R7N-DFIXED IND 4.7UH 4.2A 18.85 MOHM |
1,946 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.2 A | 5.4A | Shielded | 18.85mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-151M-DFIXED IND 150UH 800MA 456MOHM SM |
4,393 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 800 mA | 1A | Shielded | 456mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
SRP5030CA-1R2MFIXED IND 1.2UH 11A 9.7 MOHM SMD |
3,127 |
|
Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 11 A | 15A | Shielded | 9.7mOhm Max | - | 43MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|

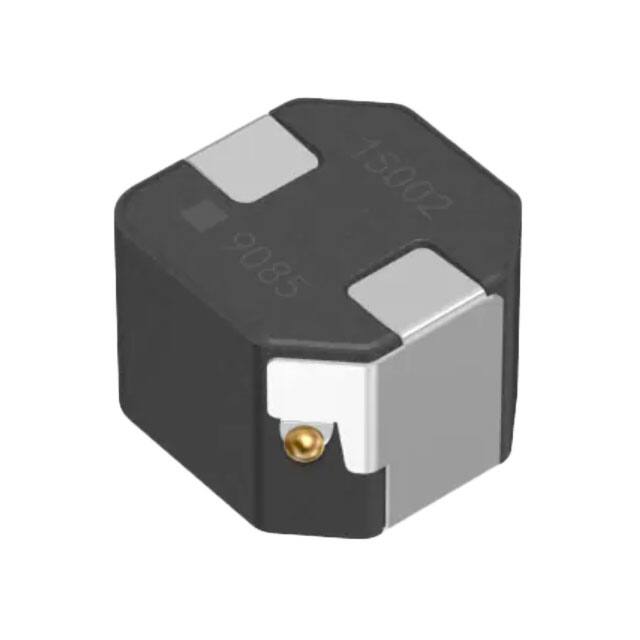

SPM7054VC-150M-DFIXED IND 15UH 5A 0.0563OHM SMD |
2,009 |
|
Datasheet |
SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 5 A | 7.1A | Shielded | 56.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
|
SRP5030CA-1R5MFIXED IND 1.5UH 10.5A 11.2 MOHM |
1,457 |
|
Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 10.5 A | 14A | Shielded | 11.2mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
LQH55DN3R3M03LFIXED IND 3.3UH 2.9A 50.4MOHM SM |
4,903 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.9 A | - | Unshielded | 50.4mOhm Max | - | 40MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
SPM7054VT-6R8M-DFIXED IND 6.8UH 6.8A 0.0239OHM |
3,147 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.8 A | 11A | Shielded | 23.9mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|

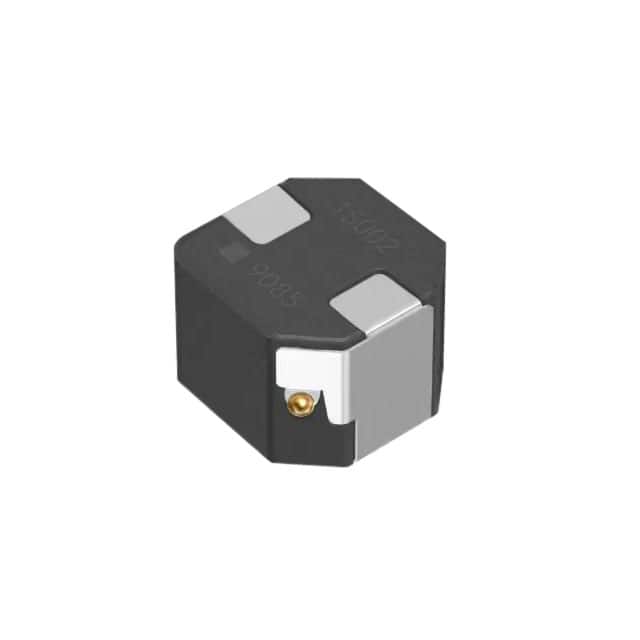

SPM7054VC-220M-DFIXED IND 22UH 4A 0.0652OHM SMD |
4,024 |
|
Datasheet |
SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 4 A | 6.4A | Shielded | 65.2mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
IHLM2525CZER8R2M01FIXED IND 8.2UH 4A 68 MOHM SMD |
1,142 |
|
Datasheet |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
19R106CFIXED IND 10MH 230MA 7.3 OHM TH |
4,891 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 10 mH | ±10% | 230 mA | - | Unshielded | 7.3Ohm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R104CFIXED IND 100UH 2.2A 90 MOHM TH |
1,681 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 100 µH | ±10% | 2.2 A | - | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
SRP5050FA-220M1IND,6X5.7X4.8MM,22UH20%,3.4A,SHD |
3,332 |
|
Datasheet |
SRP5050FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 3.4 A | 5A | Shielded | 99.65mOhm Max | - | 8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
7447452101FIXED IND 100UH 1.8A 160 MOHM TH |
1,909 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.8 A | 1.5A | Unshielded | 160mOhm Max | - | 4.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
RL181S-332J-RCFIXED IND 3.3MH 50MA 6.1 OHM TH |
2,619 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 50 mA | - | Shielded | 6.1Ohm Max | 100 @ 50kHz | 440kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-223J-RCFIXED IND 22MH 20MA 19.5 OHM TH |
2,098 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±5% | 20 mA | - | Shielded | 19.5Ohm Max | 100 @ 50kHz | 190kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-124J-RCFIXED IND 120MH 8MA 97 OHM TH |
1,636 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 mH | ±5% | 8 mA | - | Shielded | 97Ohm Max | 100 @ 50kHz | 90kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
RL875S-472K-RCFIXED IND 4.7MH 110MA 14.7OHM TH |
4,887 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 110 mA | - | Shielded | 14.7Ohm Max | 95 @ 252kHz | 1MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
MWSA1206S-101MTFIXED IND 100UH 3A 200 MOHM SMD |
2,622 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 100 µH | ±20% | 3 A | 3.5A | Shielded | 200mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.236" (6.00mm) |
|
SPM5030T-100M-HZFIXED IND 10UH 2.9A 158.95 MOHM |
2,526 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 2.9 A | 1.9A | Shielded | 158.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|
7687480121WE-TI HV RADIAL LEADED WIRE WOUN |
4,968 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 120 µH | ±10% | 2 A | 2A | Unshielded | 180mOhm Max | - | 3.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
