Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC780R-104KFIXED IND 100UH 4A 80 MOHM TH |
2,017 |
|
Datasheet |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4 A | 10.9A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
IHLP8787MZER150M51FIXED IND 15UH 23.5A 6.11MOHM SM |
3,066 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 23.5 A | 24A | Shielded | 6.11mOhm Max | - | 4.71MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHLP8787MZER6R8M5AFIXED IND 6.8UH 36A 3.09MOHM SMD |
4,281 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 36 A | 36A | Shielded | 3.09mOhm Max | - | 8.03MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER470M5AIHLP-8787MZ-5A 47 20% ER E3 |
3,208 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | ±20% | 13.5 A | 10A | Shielded | 17.7mOhm Max | - | 2.99MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
.jpg)
|

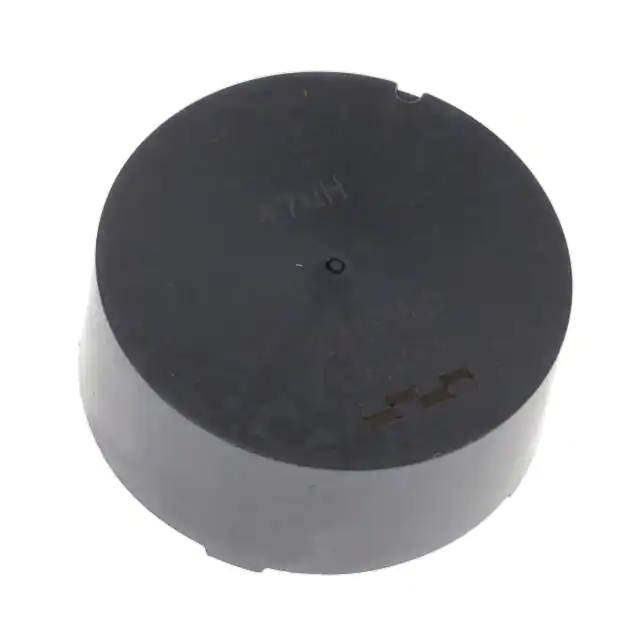

IHTH1125MZEB470M5AFIXED IND 47UH 14.7A 15.3MOHM TH |
2,195 |
|
Datasheet |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tube | Active | - | - | 47 µH | ±20% | 14.7 A | 16A | Shielded | 15.3mOhm Max | - | 2.99MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
MPXV1D2213L6R8FIXED IND 6.8UH 39A 3.3 MOHM SMD |
1,066 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 39 A | 42A | Shielded | 3.3mOhm Max | - | 6.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPXV1D2213L680FIXED IND 68UH 12.5A 30.8MOHM SM |
2,286 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 68 µH | ±20% | 12.5 A | 14A | Shielded | 30.8mOhm Max | - | 2.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPXV1D2213L101FIXED IND 100UH 10A 47.4MOHM SMD |
4,353 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 µH | ±20% | 10 A | 10.5A | Shielded | 47.4mOhm Max | - | 1.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
IHDM1107BBEV2R0M20FG, IHDM-1107BB-20 2.0 20% |
2,181 |
|
Datasheet |
IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 2 µH | ±20% | 75 A | 234A | Unshielded | 0.65mOhm Max | - | 82MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV4R3M30FG, IHDM-1107BB-30 4.3 20% |
4,845 |
|
Datasheet |
IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 4.3 µH | ±20% | 64 A | 105A | Unshielded | 0.97mOhm Max | - | 44MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV2R7M30FG, IHDM-1107BB-30 2.7 20% |
4,682 |
|
Datasheet |
IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 2.7 µH | ±20% | 72 A | 127A | Unshielded | 0.65mOhm Max | - | 62MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
1140-222K-RCFIXED IND 2.2MH 2.4A 494 MOHM TH |
3,877 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 2.4 A | 4.4A | Unshielded | 494mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-123K-RCFIXED IND 12MH 900MA 3.04 OHM TH |
4,340 |
|
Datasheet |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±10% | 900 mA | 1.9A | Unshielded | 3.04Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|

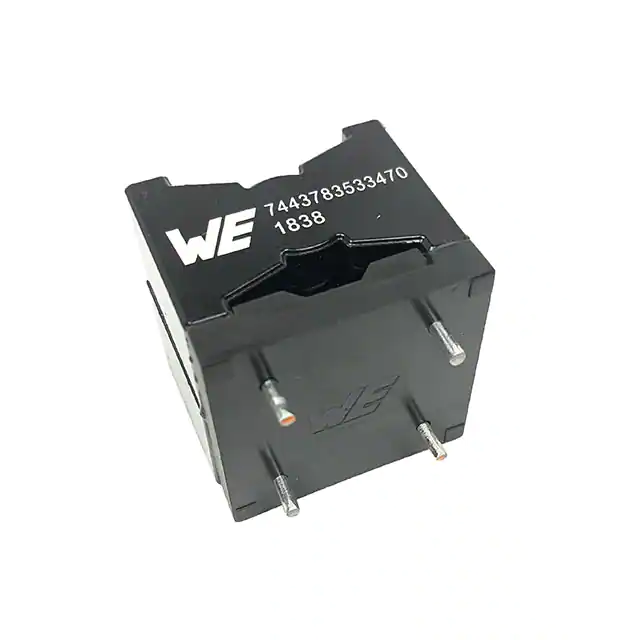

7443783533470FIXED IND 47UH 19.3A 12.98 MOHM |
1,069 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 19.3 A | 32.3A | Shielded | 12.98mOhm Max | - | 5.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
5722-RCFIXED IND 900UH 3.75A 175MOHM TH |
3,326 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 900 µH | ±15% | 3.75 A | - | Unshielded | 175mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
|
|
MPXV1D2213LR68FIXED IND 680NH 78A 0.83MOHM SMD |
4,422 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 78 A | 115A | Shielded | 0.83mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|

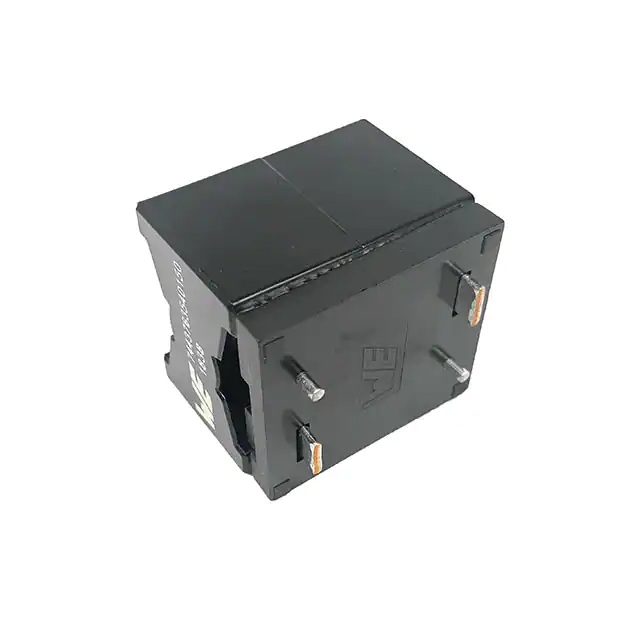

7443763540150FIXED IND 15UH 45.3A 2.16MOHM TH |
3,135 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±20% | 45.3 A | 51.6A | Shielded | 2.16mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
SHBC24N-2R0A0219VCMC 219UH 15A 2LN TH |
1,408 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 219 µH | ±20% | 15 A | - | Unshielded | 19.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.988" Dia (50.50mm) | 1.988" (50.50mm) |
|
156CFIXED IND 150H 8MA 3.7 KOHM CHAS |
2,993 |
|
Datasheet |
156 | Nonstandard | Bulk | Active | - | - | 150 H | ±15% | 8 mA | - | Unshielded | 3.7kOhm | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) |
|

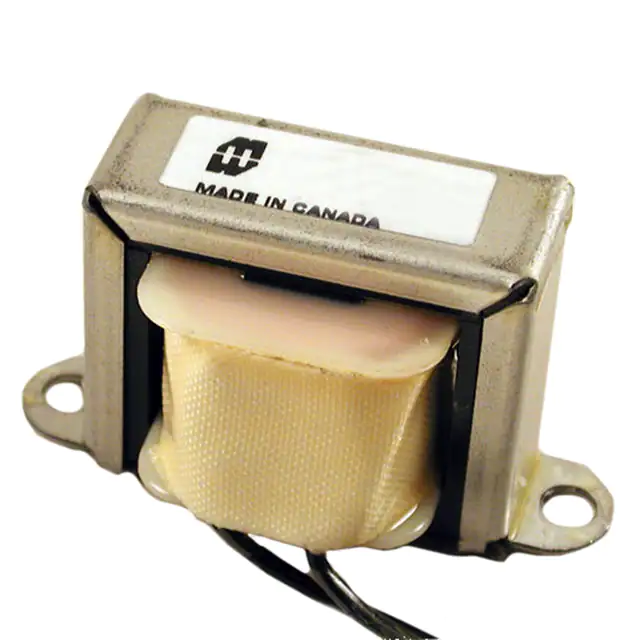

153HFIXED IND 2.2H 50MA 305 OHM CHAS |
1,114 |
|
Datasheet |
153 | Nonstandard | Bulk | Active | - | - | 2.2 H | ±15% | 50 mA | - | Unshielded | 305Ohm | - | - | - | - | - | - | Chassis Mount | - | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) |
