Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP6767GZER220M01FIXED IND 22UH 11A 26.5 MOHM SMD |
2,243 |
|
Datasheet |
IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 11 A | 23A | Shielded | 26.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
1433512CFIXED IND 3.3MH 1.2A 930MOHM TH |
3,611 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 3.3 mH | ±10% | 1.2 A | - | Unshielded | 930mOhm Max | 20 @ 50kHz | 500kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.917" (23.30mm) |
|
|
1410524CFIXED IND 1MH 2.4A 277 MOHM TH |
3,221 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 1 mH | ±10% | 2.4 A | - | Unshielded | 277mOhm Max | 33 @ 50kHz | 1MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.236" Dia (31.40mm) | 0.917" (23.30mm) |
|
|
1422514CFIXED IND 2.2MH 1.4A 622 MOHM TH |
4,376 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 2.2 mH | ±10% | 1.4 A | - | Unshielded | 622mOhm Max | 33 @ 50kHz | 600kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.224" Dia (31.10mm) | 0.917" (23.30mm) |
|
|
1410606CFIXED IND 10MH 600MA 2.6 OHM TH |
3,220 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 mH | ±10% | 600 mA | - | Unshielded | 2.6Ohm Max | 48 @ 50kHz | 200kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.917" (23.30mm) |
|
|
1422604CFIXED IND 22MH 400MA 6.962OHM TH |
1,971 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 22 mH | ±10% | 400 mA | - | Unshielded | 6.962Ohm Max | 30 @ 50kHz | 200kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.917" (23.30mm) |
|
2324-H-RCFIXED IND 1MH 2.4A 300 MOHM TH |
3,194 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±15% | 2.4 A | - | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2310-H-RCFIXED IND 56UH 10.2A 17 MOHM TH |
1,058 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 56 µH | ±15% | 10.2 A | - | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2318-H-RCFIXED IND 330UH 5.2A 67 MOHM TH |
2,710 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 5.2 A | - | Unshielded | 67mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
2312-V-RCFIXED IND 100UH 7A 37 MOHM TH |
1,378 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 7 A | - | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

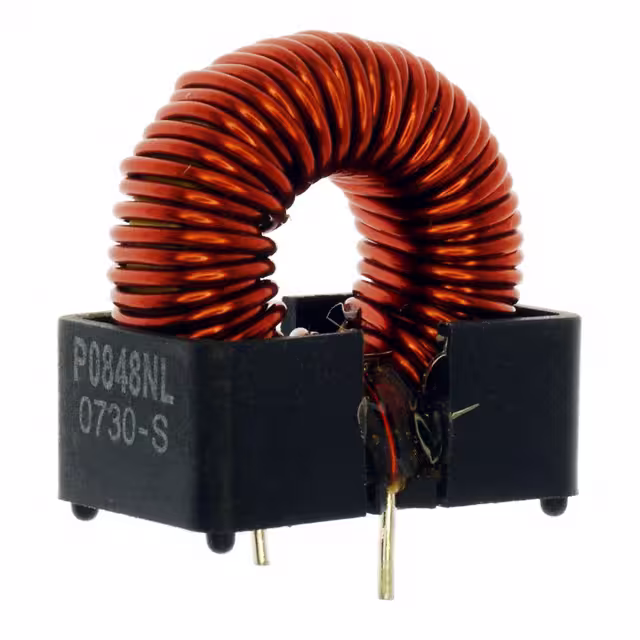

P0848NLFIXED IND 50UH 5A 50 MOHM TH |
1,759 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 50 µH | ±20% | 5 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.350" (34.29mm) |
|
4922R-471LFIXED IND 470NH 6A 10 MOHM SMD |
3,660 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±15% | 6 A | 6A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
SRP1513CA-150MIND,16.5X15.5X12.7MM,15UH20%,22A |
2,923 |
|
Datasheet |
SRP1513CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 15 µH | ±20% | 22 A | 25.5A | Shielded | 7.5mOhm Max | 40 @ 100kHz | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
SRP1580CA-2R0MIND,16.5X15.5X7.7MM,2UH20%,40A,S |
3,207 |
|
Datasheet |
SRP1580CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2 µH | ±20% | 40 A | 57A | Shielded | 2.21mOhm Max | 30 @ 100kHz | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.315" (8.00mm) |
|
|
SRP1513CA-330MIND,16.5X15.5X12.7MM,33UH20%,14A |
4,025 |
|
Datasheet |
SRP1513CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 33 µH | ±20% | 14 A | 19A | Shielded | 22.2mOhm Max | 40 @ 100kHz | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
2200LL-221-H-RCFIXED IND 220UH 4.4A 63 MOHM TH |
4,146 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 220 µH | ±15% | 4.4 A | - | Unshielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
|
2200LL-471-H-RCFIXED IND 470UH 3.7A 92 MOHM TH |
3,653 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 470 µH | ±15% | 3.7 A | - | Unshielded | 92mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|

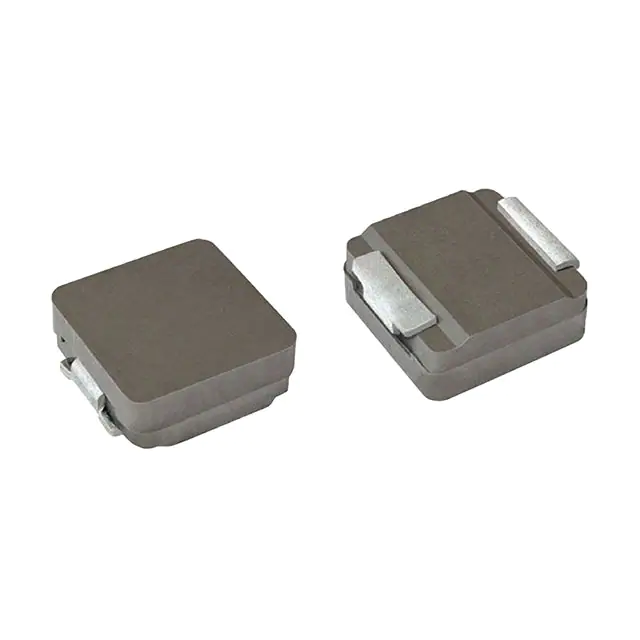

IHSR6767GZERR22M5AIHSR-6767GZ-5A .22 20% ER E3 |
4,829 |
|
Datasheet |
IHSR-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±20% | 141 A | 155A | Shielded | 0.24mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.709" L x 0.675" W (18.00mm x 17.15mm) | 0.276" (7.00mm) |
|
2300LL-220-V-RCFIXED IND 22UH 17.7A 5 MOHM TH |
3,872 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 22 µH | ±15% | 17.7 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
74439369150WE-XHMI SMT POWER INDUCTOR 15 UH |
4,186 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 8.3 A | 16.95A | Shielded | 14.8mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
