Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AN2N2C8ZDFIXED IND 2.2NH 3.2A 0.018OHM SM |
4,979 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.2 nH | ±0.2nH | 3.2 A | - | Unshielded | 18mOhm Max | 24 @ 250MHz | 15GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|

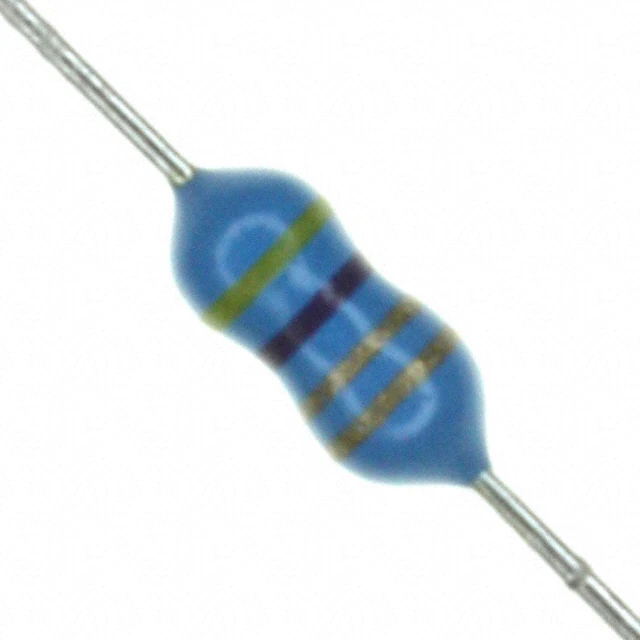

78F4R7J-RCFIXED IND 4.7UH 530MA 350MOHM TH |
4,622 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 530 mA | - | Unshielded | 350mOhm Max | 45 @ 7.9MHz | 38MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
SRP2512TMA-1R0MFIXED IND 1UH 4.5A 0.0396OHM SMD |
3,113 |
|
Datasheet |
SRP2512TMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 4.5 A | 5A | Shielded | 39.6mOhm Max | 15 @ 1MHz | 63MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQM21NN1R5K10DFIXED IND 1.5UH 50MA 500MOHM SMD |
4,410 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 1.5 µH | ±10% | 50 mA | - | Shielded | 500mOhm Max | 45 @ 10MHz | 87MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
SRP3212A-R47MIND METAL POWDER 0.47UH 7A |
2,114 |
|
Datasheet |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 7 A | 8.2A | Shielded | 19mOhm Max | 3 @ 100kHz | 100MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SRP3212A-1R0MIND METAL POWDER 1UH 5.5A |
4,342 |
|
Datasheet |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 5.5 A | 6.5A | Shielded | 32mOhm Max | 5 @ 100kHz | 63MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
744760147AFIXED IND 47NH 500MA 150MOHM SMD |
1,698 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 500 mA | - | Unshielded | 150mOhm Max | 60 @ 500MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
LQM21FN1R0N00DFIXED IND 1UH 220MA 260 MOHM SMD |
2,365 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 1 µH | ±30% | 220 mA | 220mA | Shielded | 260mOhm Max | - | 105MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LQM21FN470N00LFIXED IND 47UH 7MA 780 MOHM SMD |
1,799 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 47 µH | ±30% | 7 mA | 7mA | Shielded | 780mOhm Max | - | 7.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQM21FN4R7N00LFIXED IND 4.7UH 80MA 390MOHM SMD |
4,904 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 4.7 µH | ±30% | 80 mA | 80mA | Shielded | 390mOhm Max | - | 25MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
AISC-0805-R33G-TFIXED IND 330NH 310MA 1.4OHM SMD |
2,121 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 310 mA | - | Unshielded | 1.4Ohm Max | 40 @ 250MHz | 600MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
LQH32DN150K53LFIXED IND 15UH 300MA 754MOHM SMD |
2,893 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 300 mA | 300mA | Unshielded | 754mOhm Max | - | 26MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
-Height-1.00mm.jpg)
|
DFE201610P-1R0M=P2FIXED IND 1UH 3.1A 70 MOHM SMD |
3,103 |
|
Datasheet |
DFE201610P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3.1 A | - | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
DFE252010P-4R7M=P2FIXED IND 4.7UH 1.1A 0.27OHM SMD |
1,836 |
|
Datasheet |
DFE252010P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.1 A | 1.7A | Shielded | 270mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH32MN100J23LFIXED IND 10UH 190MA 1.8 OHM SMD |
2,872 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 190 mA | - | Unshielded | 1.8Ohm Max | 35 @ 1MHz | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
LQH2MCN330K02LFIXED IND 33UH 160MA 3.64OHM SMD |
3,854 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 160 mA | - | Unshielded | 3.64Ohm Max | - | 28MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQH32CN2R2M53LFIXED IND 2.2UH 790MA 126.1 MOHM |
1,654 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 790 mA | - | Unshielded | 126.1mOhm Max | - | 64MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQH32CN6R8M53LFIXED IND 6.8UH 540MA 325MOHM SM |
3,707 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 540 mA | - | Unshielded | 325mOhm Max | - | 32MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQH32CN150K53LFIXED IND 15UH 300MA 754MOHM SMD |
4,573 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 300 mA | - | Unshielded | 754mOhm Max | - | 26MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQH32CN470K53LFIXED IND 47UH 170MA 1.69OHM SMD |
2,743 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 170 mA | - | Unshielded | 1.69Ohm Max | - | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
