Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437349330FIXED IND 33UH 1.9A 0.2OHM SMD |
3,426 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 33 µH | ±20% | 1.9 A | 4.75A | Shielded | 200mOhm Max | - | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
FP0906R1-R12-RFIXED IND 120NH 51A 0.29MOHM SMD |
4,749 |
|
Datasheet |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 51 A | 68A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|

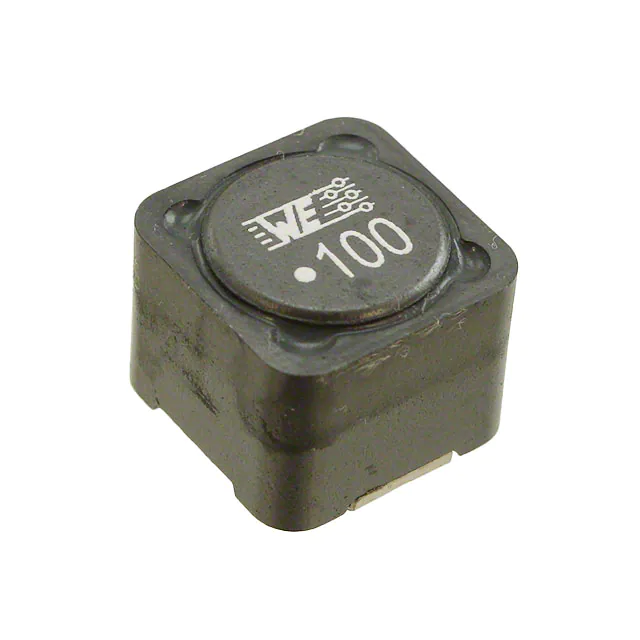

7447709100FIXED IND 10UH 7.1A 21 MOHM SMD |
4,594 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 7.1 A | 10.5A | Shielded | 21mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
744373965101FIXED IND 100UH 2.6A 0.165OHM SM |
4,469 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 100 µH | ±20% | 2.6 A | 6.8A | Shielded | 165mOhm Max | - | 2.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
2124-V-RCFIXED IND 1MH 1.3A 400 MOHM TH |
3,096 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 1 mH | ±15% | 1.3 A | - | Unshielded | 400mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
1812R-153JFIXED IND 15UH 283MA 2.5 OHM SMD |
1,075 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±5% | 283 mA | - | Unshielded | 2.5Ohm Max | 50 @ 2.5MHz | 17MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IHA105EBFIXED IND 1MH 1.4A 600 MOHM TH |
1,945 |
|
Datasheet |
IHA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1.4 A | - | Unshielded | 600mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.550" Dia x 1.175" L (13.97mm x 29.85mm) | - |
|
IHLP6767GZER101M11FIXED IND 100UH 5A 110 MOHM SMD |
3,089 |
|
Datasheet |
IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 5 A | 4A | Shielded | 110mOhm Max | - | 2.1MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
SRP1770TA-220MFIXED IND 22UH 12A 26.5 MOHM SMD |
3,218 |
|
Datasheet |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 12 A | 18A | Shielded | 26.5mOhm Max | 20 @ 100kHz | 5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
1422455CFIXED IND 220UH 5.5A 62 MOHM TH |
1,826 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 220 µH | ±10% | 5.5 A | - | Unshielded | 62mOhm Max | 30 @ 50kHz | 2.2MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.264" Dia (32.10mm) | 0.917" (23.30mm) |
|
PQ2614BHA-4R7KFIXED IND 4.7UH 30A 1.9 MOHM SMD |
2,474 |
|
Datasheet |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 30 A | 48A | Shielded | 1.9mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
PQ2617BHA-100KFIXED IND 10UH 28A 2.5 MOHM SMD |
1,893 |
|
Datasheet |
PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 28 A | 31.2A | Shielded | 2.5mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
|
4922R-21LFIXED IND 47UH 1.04A 362MOHM SMD |
1,042 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 1.04 A | 1.04A | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|

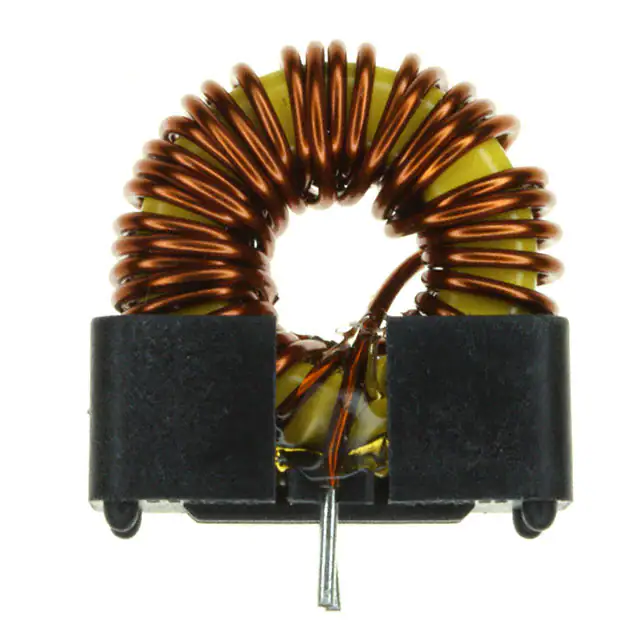

P0841NLFIXED IND 22.8UH 4.9A 36 MOHM TH |
2,535 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 22.8 µH | ±20% | 4.9 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|

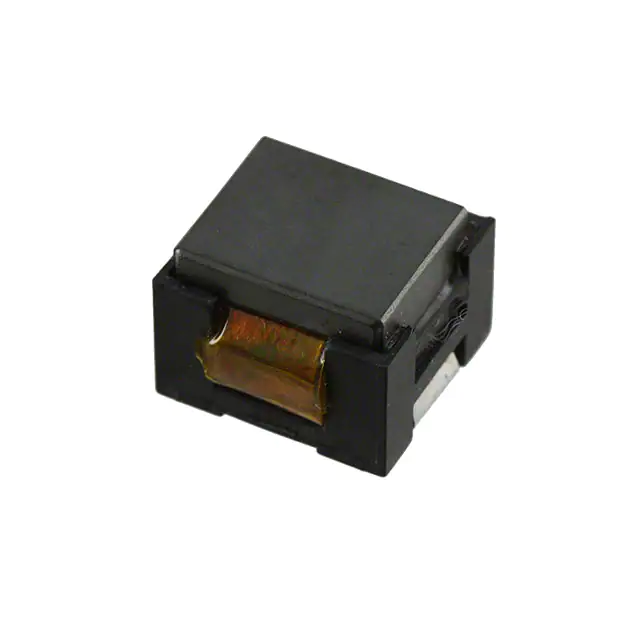

HC1-100-RFIXED IND 10UH 12.79A 5.7MOHM SM |
4,546 |
|
Datasheet |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±15% | 12.79 A | 5.3A | Unshielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|
2300LL-102-V-RCFIXED IND 1MH 3.5A 137 MOHM TH |
2,126 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 1 mH | ±15% | 3.5 A | - | Shielded | 137mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
7443556560FIXED IND 5.6UH 19A 3.7 MOHM SMD |
3,993 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 19 A | 33A | Shielded | 3.7mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
7443556680FIXED IND 6.8UH 18.5A 4.1MOHM SM |
4,587 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 18.5 A | 27A | Shielded | 4.1mOhm | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|

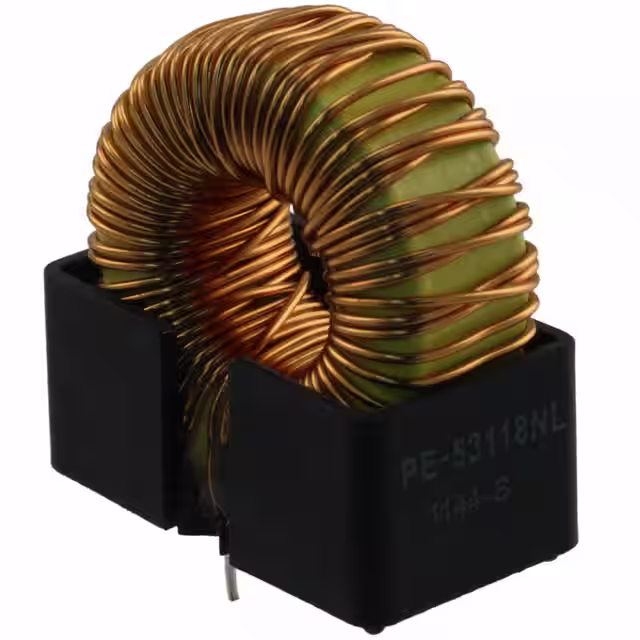

PE-53118NLFIXED IND 470UH 2A 170 MOHM TH |
4,660 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 470 µH | ±20% | 2 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
74439370068FIXED IND 6.8UH 15A 4.1MOHM SMD |
1,959 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 15 A | 46A | Shielded | 4.1mOhm | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
