Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

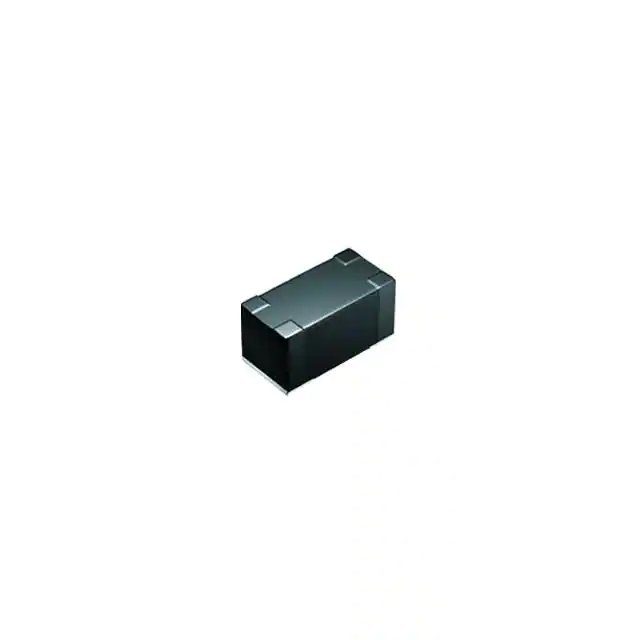

LSQBB160808T100KFIXED IND 10UH 80MA 0.36 OHM SMD |
4,955 |
|
Datasheet |
LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 80 mA | - | Unshielded | 360mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQW2BASR27J00LFIXED IND 270NH 350MA 1 OHM SMD |
4,706 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 270 nH | ±5% | 350 mA | - | Unshielded | 1Ohm Max | 48 @ 250MHz | 730MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BASR22J00LFIXED IND 220NH 400MA 700MOHM SM |
1,228 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 220 nH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 50 @ 250MHz | 820MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LQW15AN27NG80DFIXED IND 27NH 680MA 0.288OHM SM |
2,276 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 27 nH | ±2% | 680 mA | - | Unshielded | 288mOhm Max | 30 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN8N6G80DFIXED IND 8.6NH 1.42A 0.07OHM SM |
2,695 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.6 nH | ±2% | 1.42 A | - | Unshielded | 70mOhm Max | 31 @ 250MHz | 6.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
0402HS-1N2EJTSFIXED IND 1.2NH 740MA 90MOHM SMD |
1,648 |
|
Datasheet |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.2 nH | ±5% | 740 mA | - | Unshielded | 90mOhm | 14 @ 250MHz | 12.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
LQP03HQ82NH02DFIXED IND 82NH 100MA 5 OHM SMD |
3,156 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 82 nH | ±3% | 100 mA | - | Unshielded | 5Ohm Max | 10 @ 300MHz | 1GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQW15AN3N5B8ZDFIXED IND 3.5NH 1.95A 0.03OHM SM |
1,835 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.5 nH | ±0.1nH | 1.95 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
0402HP-2N0EJTSFIXED IND 2NH 2.1A 38 MOHM SMD |
4,970 |
|
Datasheet |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±5% | 2.1 A | - | Unshielded | 38mOhm | - | 15.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
LQW18ANR22J8ZDFIXED IND 220NH 280MA 2.08OHM SM |
2,639 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 220 nH | ±5% | 280 mA | - | Unshielded | 2.08Ohm Max | 25 @ 100MHz | 1.33GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
LRW0402WJ27NGG001TFIXED IND 27NH 400MA 298MOHM SMD |
2,707 |
|
Datasheet |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 400 mA | - | Unshielded | 298mOhm Max | 55 @ 900MHz | 2.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
SRP3212-2R2MIND,3.2X2.5X1MM,2.2UH20%,4A,SHD |
3,031 |
|
Datasheet |
SRP3212 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 4 A | 4.8A | Shielded | 73mOhm Max | 5 @ 100kHz | 41MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SRP3212-1R0MIND,3.2X2.5X1MM,1UH20%,5.5A,SHD |
2,033 |
|
Datasheet |
SRP3212 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 5.5 A | 6.5A | Shielded | 32mOhm Max | 5 @ 100kHz | 63MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
.jpg)
|
AIML-0805HC-100M-TFIXED IND 10UH 500MA 320MOHM SMD |
3,972 |
|
Datasheet |
AIML-0805HC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 500 mA | 60mA | Shielded | 320mOhm | - | 24MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.049" (1.25mm) |
|
VLS201612CX-220M-1FIXED IND 22UH 480MA 1.32OHM SMD |
2,506 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 480 mA | 400mA | Shielded | 1.32Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|

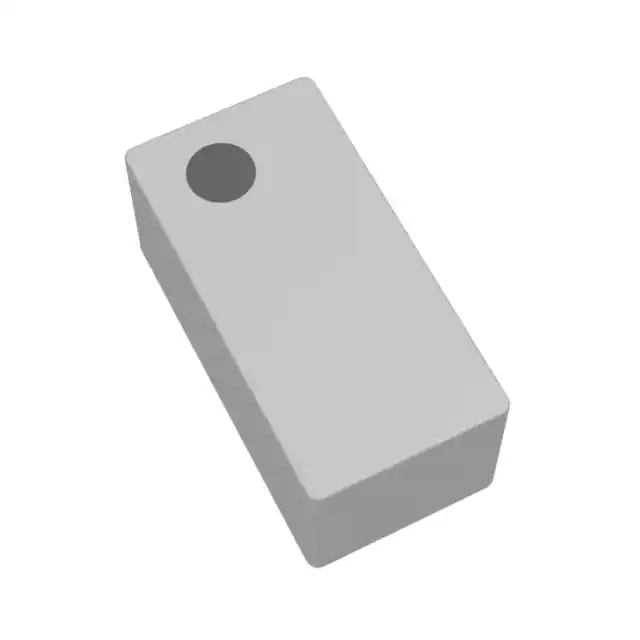

HTEK16080H-1R0MSRFIXED IND 1UH 2A 142 MOHM SMD |
4,075 |
|
Datasheet |
HTEK16080H | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 2 A | 2A | Shielded | 142mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
SRP2010DPA-4R7MIND,2X1.6X1MM,4.7UH20%,1.1A,SHD |
1,278 |
|
Datasheet |
SRP2010DPA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 1.1 A | 1.5A | Shielded | 360mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSQPA322525T470KRFIXED IND 47UH 480MA 871MOHM SMD |
4,087 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 480 mA | 390mA | Unshielded | 871mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|

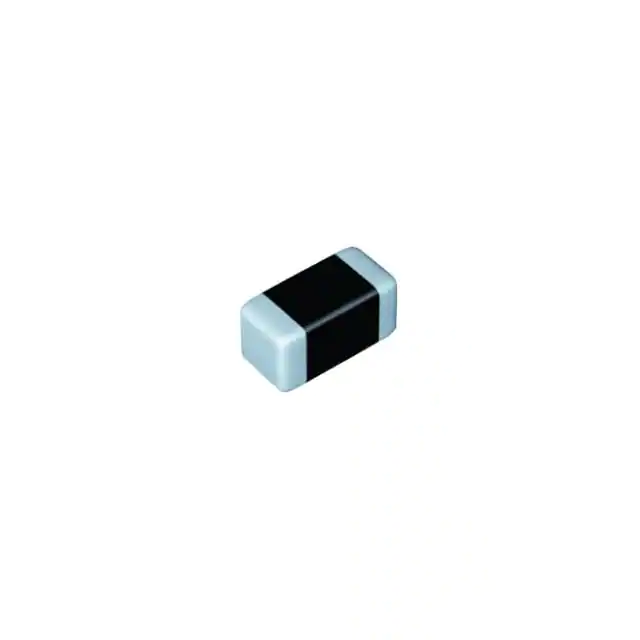

LSQPA322525T102KRFIXED IND 1MH 100MA 13 OHM SMD |
3,017 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±10% | 100 mA | 100mA | Unshielded | 16.9Ohm Max | - | 1.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
LQM21NNR47K10DFIXED IND 470NH 200MA 570MOHM SM |
1,162 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 470 nH | ±10% | 200 mA | - | Shielded | 570mOhm Max | 25 @ 25MHz | 150MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
