Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74435581200FIXED IND 12UH 19A 4.3 MOHM SMD |
1,542 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 12 µH | ±20% | 19 A | 25A | Shielded | 4.3mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
74435581000FIXED IND 10UH 21A 3.4 MOHM SMD |
3,112 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 21 A | 26A | Shielded | 3.4mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
B82559A2122A025FIXED IND 1.25UH 0.4 MOHM SMD |
3,032 |
|
Datasheet |
ERU25 - Flat Wire Inductor | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.25 µH | ±7% | - | 50A | Shielded | 0.4mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.423" (10.75mm) |
|
74437529203330FIXED IND 33UH 20.2A 6.9MOHM SMD |
3,713 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 20.2 A | 15.4A | Shielded | 6.9mOhm | - | 7.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437529203221FIXED IND 220UH 8.8A 36.45 MOHM |
4,284 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 µH | ±20% | 8.8 A | 5.3A | Shielded | 36.45mOhm | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
7443640680FIXED IND 6.8UH 30A 2.4 MOHM SMD |
3,456 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±15% | 30 A | 55A | Shielded | 2.4mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|

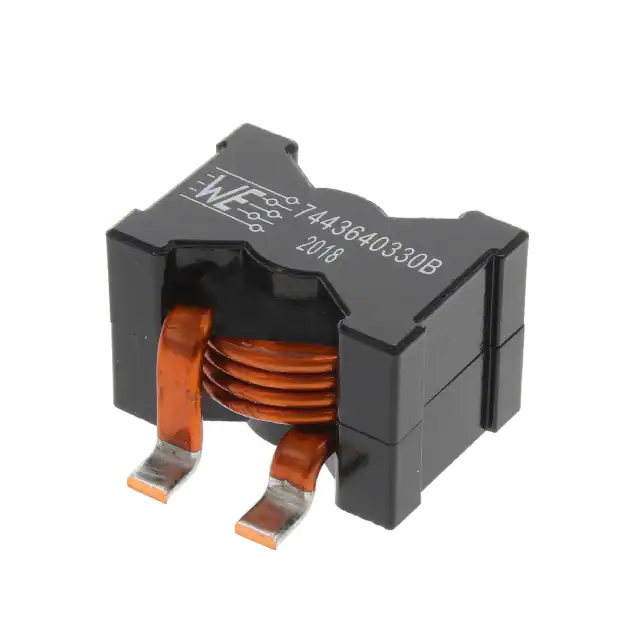

7443640330BFIXED IND 3.3UH 47.5A 0.968 MOHM |
3,324 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 3.3 µH | ±20% | 47.5 A | 70A | Shielded | 0.968mOhm Max | - | 28.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|
IHLP8787MZER150M5AFIXED IND 15UH 23.5A 6.11MOHM SM |
3,967 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 23.5 A | 24A | Shielded | 6.11mOhm Max | - | 4.71MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER101M5AFIXED IND 100UH 9.1A 39.4MOHM SM |
2,771 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 9.1 A | 7A | Shielded | 39.4mOhm Max | - | 2.01MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
1538M15FIXED IND 5UH 19A 6 MOHM TH |
2,881 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 5 µH | ±10% | 19 A | - | Unshielded | 6mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.690" Dia x 1.120" L (17.53mm x 28.45mm) | - |
|
IHDM1107BBEV6R2M30FG, IHDM-1107BB-30 6.2H 20% |
1,095 |
|
Datasheet |
IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 6.2 µH | ±20% | 56 A | 91A | Unshielded | 1.3mOhm Max | - | 25MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
506WLSM2R00KT277TFIXED IND 2UH 277MA 1.6 OHM SMD |
3,831 |
|
Datasheet |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2 µH | ±10% | 277 mA | - | Unshielded | 1.6Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
506WLC2R0KG250BFIXED IND 2UH 250MA 1.45 OHM TH |
2,871 |
|
Datasheet |
506WLC | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 2 µH | ±10% | 250 mA | - | Unshielded | 1.45Ohm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Through Hole | - | 0.102" L x 0.065" Sq Pyramid (2.59mm x 1.65mm) | 0.094" (2.40mm) |
.jpg)
|
LQG15HS1N8S02DFIXED IND 1.8NH 950MA 0.1OHM SMD |
1,860 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.8 nH | ±0.3nH | 950 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LRC0603CS1N0GV001TFIXED IND 1NH 300MA 100 MOHM SMD |
3,690 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 17GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LRC0402CS4N3GV001TFIXED IND 4.3NH 300MA 240MOHM SM |
3,871 |
|
Datasheet |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.3 nH | ±0.3nH | 300 mA | - | Unshielded | 240mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LRC0201BS1N5GV001TFIXED IND 1.5NH 300MA 180MOHM SM |
3,284 |
|
Datasheet |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 300 mA | - | Unshielded | 180mOhm Max | 4 @ 100MHz | 13GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|
LQP03TN4N1B02DFIXED IND 4.1NH 350MA 400MOHM SM |
3,808 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 4.1 nH | ±0.1nH | 350 mA | - | Unshielded | 400mOhm Max | 14 @ 500MHz | 5.3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
MLG0603P15NHT000FIXED IND 15NH 250MA 1.2 OHM SMD |
4,188 |
|
Datasheet |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 15 nH | ±3% | 250 mA | - | Unshielded | 1.2Ohm Max | 14 @ 500MHz | 3.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQG15HN1N0C02DFIXED IND 1NH 1A 0.07OHM SMD |
4,516 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | - | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
