Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQ4126-1R0MHF-CT1uH, 20%, 2.2mOhm, 26Amp Max. SM |
220 |
|
Datasheet |
SQ4126 | Nonstandard | Strip | Active | Wirewound | Ferrite | 1 µH | ±20% | 16 A | 26A | Unshielded | 2.8mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.323" W (10.30mm x 8.20mm) | 0.262" (6.65mm) |
|
CT0603CSF-R15GSMD CER CORE WIRE-WOUND INDUCTOR |
130 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 150 nH | ±2% | - | - | - | 920mOhm | - | 990MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
SQ4126-R68MHF-CT0.68uH, 20%, 1.2mOhm, 29Amp Max. |
120 |
|
Datasheet |
SQ4126 | Nonstandard | Strip | Active | Wirewound | Ferrite | 680 nH | ±20% | 26 A | 29A | Unshielded | 1.39mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.323" W (10.30mm x 8.20mm) | 0.262" (6.65mm) |
|
CT0805CSF-820GSMD CER CORE WIRE-WOUND INDUCTOR |
2,732 |
|
Datasheet |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 82 nH | ±2% | - | - | - | 420mOhm | - | 1.3GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CTMMP1808F-1R5MSMD Shielded Power Inductor |
1,085 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1.5 µH | ±20% | 6 A | - | Shielded | 46mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-100MSMD Shielded Power Inductor |
3,754 |
|
Datasheet |
- | - | Bulk | Active | - | - | 10 µH | ±20% | 2 A | - | Shielded | 258mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-8R2MSMD Shielded Power Inductor |
2,518 |
|
Datasheet |
- | - | Bulk | Active | - | - | 8.2 µH | ±20% | 2.5 A | - | Shielded | 216mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-R10MSMD Shielded Power Inductor |
4,328 |
|
Datasheet |
- | - | Bulk | Active | - | - | 0.1 µH | ±20% | 25 A | - | Shielded | 4mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-1R0MSMD Shielded Power Inductor |
1,084 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 7 A | - | Shielded | 27mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-6R8MSMD Shielded Power Inductor |
3,439 |
|
Datasheet |
- | - | Bulk | Active | - | - | 6.8 µH | ±20% | 2.5 A | - | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-R22MSMD Shielded Power Inductor |
2,914 |
|
Datasheet |
- | - | Bulk | Active | - | - | 0.22 µH | ±20% | 12.5 A | - | Shielded | 6.6mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|

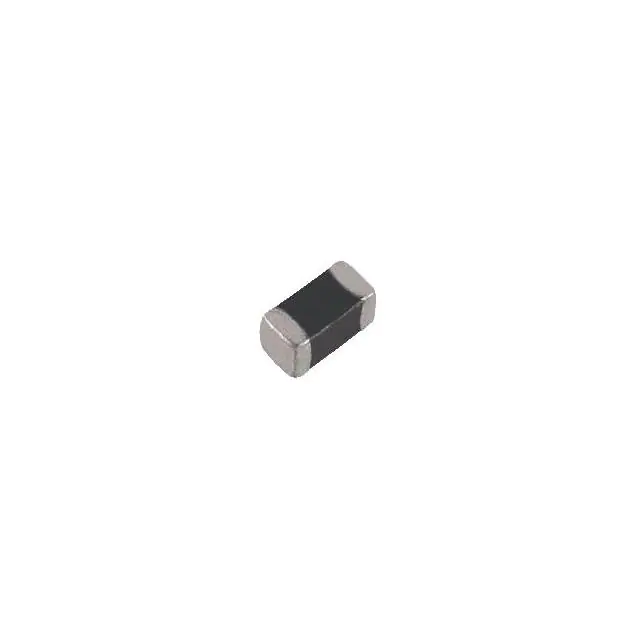

CTMPH060303F-R24M0.24UH SMD MOLDED SHLD INDUCTOR |
2,823 |
|
Datasheet |
CTMPH060303F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 2.6 mA | 3.2A | Shielded | 54Ohm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
CTMPH060303F-R33M0.33UH SMD MOLDED SHLD INDUCTOR |
1,213 |
|
Datasheet |
CTMPH060303F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 2.2 mA | 3A | Shielded | 75Ohm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
CTMMP2707F-4R7MSMD Shielded Power Inductor |
1,888 |
|
Datasheet |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 5.5 A | - | Shielded | 78mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
|
CTMMP2707F-2R2MSMD Shielded Power Inductor |
1,817 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 8.5 A | - | Shielded | 46mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
|
CTMMP2707F-R68MSMD Shielded Power Inductor |
4,943 |
|
Datasheet |
- | - | Bulk | Active | - | - | 0.68 µH | ±20% | 15 A | - | Shielded | 13.9mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
|
CTMMP2707F-1R0MSMD Shielded Power Inductor |
1,972 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 11.5 A | - | Shielded | 18.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
CTCDRH6D28F-7R3N7.3UH SMD SHIELDED POWR INDUCTOR |
4,784 |
|
Datasheet |
CTCDRH6D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.3 µH | ±30% | - | 2.1A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 80°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
CTMMP2208F-4R7MSMD Shielded Power Inductor |
1,400 |
|
Datasheet |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 5 A | - | Shielded | 90mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.071" (1.80mm) |
|
|
CTMMP2208F-1R0MSMD Shielded Power Inductor |
3,168 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 7 A | - | Shielded | 30mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.071" (1.80mm) |
