Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR06080330FIXED INDUCTOR DRW 06 X 08 33 UH |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 33 µH | ±15% | 820 mA | - | Unshielded | 107mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06083300FIXED INDUCTOR DRW 06 X 08 330 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 250 mA | - | Unshielded | 1.1Ohm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080680FIXED INDUCTOR DRW 06 X 08 68 UH |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 68 µH | ±10% | 530 mA | - | Unshielded | 240mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06081500FIXED INDUCTOR DRW 06 X 08 150 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 150 µH | ±10% | 390 mA | - | Unshielded | 480mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06084700FIXED INDUCTOR DRW 06 X 08 470 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 470 µH | ±10% | 200 mA | - | Unshielded | 1.62Ohm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080022FIXED INDUCTOR DRW 06 X 08 2,2 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 2.2 µH | ±20% | 2.6 A | - | Unshielded | 11mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080015FIXED INDUCTOR DRW 06 X 08 1,5 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1.5 µH | ±20% | 2.6 A | - | Unshielded | 8mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06081000FIXED INDUCTOR DRW 06 X 08 100 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 100 µH | ±10% | 530 mA | - | Unshielded | 290mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080220FIXED INDUCTOR DRW 06 X 08 22 UH |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 22 µH | ±15% | 820 mA | - | Unshielded | 88mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080047FIXED INDUCTOR DRW 06 X 08 4,7 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 4.7 µH | ±20% | 2 A | - | Unshielded | 16mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06082200FIXED INDUCTOR DRW 06 X 08 220 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 220 µH | ±10% | 330 mA | - | Unshielded | 680mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
CT0805CSF-391JSMD CER CORE WIRE-WOUND INDUCTOR |
858 |
|
Datasheet |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 390 nH | ±5% | - | - | - | 1.5Ohm | - | 560MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|

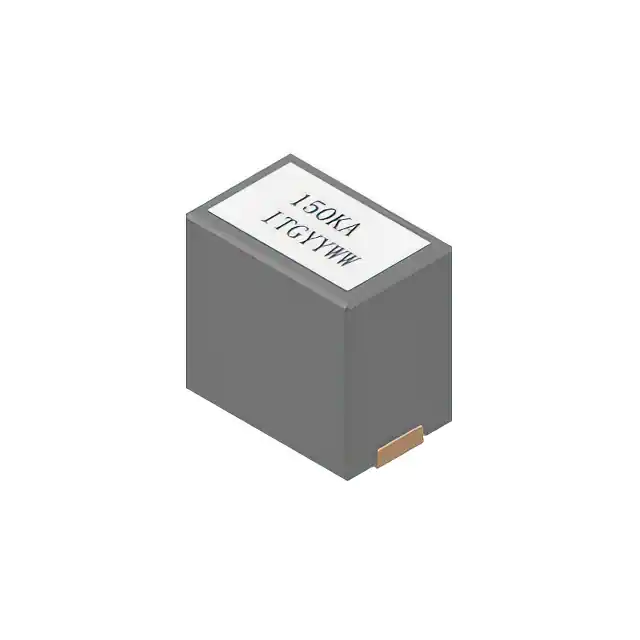

FB13A-150K0.15UH, 10%, 0.17MOHM, 75AMP MAX |
500 |
|
Datasheet |
FB13A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 66 A | 75A | Unshielded | 170mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.354" (9.00mm) |
|
|
CT0805CSF-330GSMD CER CORE WIRE-WOUND INDUCTOR |
456 |
|
Datasheet |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 33 nH | ±2% | - | - | - | 270mOhm | - | 2.05GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CT0603CSF-7N5GSMD CER CORE WIRE-WOUND INDUCTOR |
315 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 7.5 nH | ±2% | - | - | - | 106mOhm | - | 4.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CT1008CSF-680GSMD CER CORE WIRE-WOUND INDUCTOR |
313 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 68 nH | ±2% | - | - | - | 200mOhm | - | 1.3GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-2N2JSMD CER CORE WIRE-WOUND INDUCTOR |
310 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.2 nH | ±5% | - | - | - | 250mOhm | - | 12.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-472GSMD CER CORE WIRE-WOUND INDUCTOR |
310 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±2% | - | - | - | 4Ohm | - | 90MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-121GSMD CER CORE WIRE-WOUND INDUCTOR |
290 |
|
Datasheet |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±2% | - | - | - | 510mOhm | - | 1.1GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-470GSMD CER CORE WIRE-WOUND INDUCTOR |
290 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 47 nH | ±2% | - | - | - | 160mOhm | - | 1.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
