Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTDSS1005F-105K1000UH SMD SHIELDED PWR INDUCTOR |
600 |
|
Datasheet |
CTDSS1005F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±10% | 200 mA | - | Shielded | 3.2Ohm Max | 65 @ 252kHz | 2MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.201" (5.10mm) |
|
CTDO3308PF-684680UH SMD POWER INDUCTOR |
1,000 |
|
Datasheet |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 280 mA | 330mA | Unshielded | 4.4Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
CTDO3340PF-334330UH SMD POWER INDUCTOR |
900 |
|
- |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 600 mA | 1.2A | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
SM5018-1R0MHF-CT1uH, 20%, 2.1mOhm, 50Amp Max. SM |
300 |
|
Datasheet |
SM5018 | Nonstandard | Strip | Active | Molded | Metal | 1 µH | ±20% | 29 A | 50A | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|

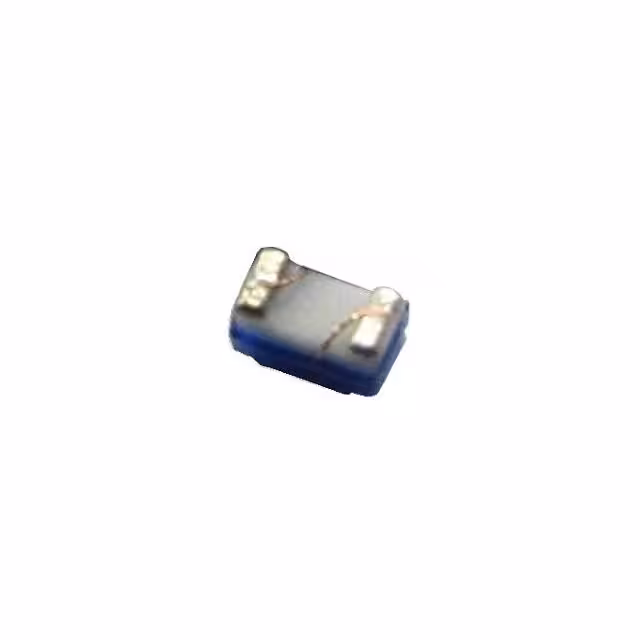

CT0201CSF-1N4JSMD CER CORE WIRE-WOUND INDUCTOR |
2,626 |
|
Datasheet |
ct0201csf | - | Tape & Reel (TR) | Active | Wirewound | - | 500 pH | ±5% | - | - | - | 80mOhm | - | 17GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0201CSF-1N3JSMD CER CORE WIRE-WOUND INDUCTOR |
3,482 |
|
Datasheet |
ct0201csf | - | Tape & Reel (TR) | Active | Wirewound | - | 500 pH | ±5% | - | - | - | 48mOhm | - | 17.6GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0201CSF-8N2JSMD CER CORE WIRE-WOUND INDUCTOR |
4,536 |
|
Datasheet |
ct0201csf | - | Tape & Reel (TR) | Active | Wirewound | - | 500 pH | ±5% | - | - | - | 270mOhm | - | 6.4GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0201CSF-3N6JSMD CER CORE WIRE-WOUND INDUCTOR |
3,233 |
|
Datasheet |
ct0201csf | - | Tape & Reel (TR) | Active | Wirewound | - | 500 pH | ±5% | - | - | - | 105mOhm | - | 12.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0201CSF-1N5JSMD CER CORE WIRE-WOUND INDUCTOR |
1,556 |
|
Datasheet |
ct0201csf | - | Tape & Reel (TR) | Active | Wirewound | - | 500 pH | ±5% | - | - | - | 90mOhm | - | 17GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0201CSF-6N8JSMD CER CORE WIRE-WOUND INDUCTOR |
2,003 |
|
Datasheet |
ct0201csf | - | Tape & Reel (TR) | Active | Wirewound | - | 500 pH | ±5% | - | - | - | 150mOhm | - | 9.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CTCDRH105RF-681N680UH SMD SHIELDED POWR INDUCTOR |
1,000 |
|
Datasheet |
CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±30% | - | 520mA | Shielded | 1.6Ohm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
CTMMP2818AF-R47MSMD Shielded Power Inductor |
800 |
|
Datasheet |
- | - | Bulk | Active | - | - | 0.47 µH | ±20% | 30 A | - | Shielded | 3.5mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.189" (4.80mm) |
|
|
CTCDRH105RF-471N470UH SMD SHIELDED POWR INDUCTOR |
500 |
|
Datasheet |
CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±30% | - | 600mA | Shielded | 1.3Ohm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
DR06086800FIXED INDUCTOR DRW 06 X 08 680 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 680 µH | ±10% | 160 mA | - | Unshielded | 2.47Ohm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR0608001KFIXED INDUCTOR DRW 06 X 08 1000 |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 120 mA | - | Unshielded | 3.92Ohm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080068FIXED INDUCTOR DRW 06 X 08 6,8 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 6.8 µH | ±15% | 2 A | - | Unshielded | 20mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080100FIXED INDUCTOR DRW 06 X 08 10 UH |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 10 µH | ±15% | 1.3 A | - | Unshielded | 38mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080033FIXED INDUCTOR DRW 06 X 08 3,3 U |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 3.3 µH | ±20% | 2 A | - | Unshielded | 13mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080150FIXED INDUCTOR DRW 06 X 08 15 UH |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 15 µH | ±15% | 1 A | - | Unshielded | 58mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
|
|
DR06080470FIXED INDUCTOR DRW 06 X 08 47 UH |
1,000 |
|
Datasheet |
06X08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 47 µH | ±10% | 640 mA | - | Unshielded | 160mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.315" (8.00mm) |
