Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR04060047FIXED INDUCTOR DRW 04 X 06 4,7 U |
1,000 |
|
Datasheet |
04X06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 4.7 µH | ±20% | 640 mA | - | Unshielded | 48mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.157" Dia (4.00mm) | 0.236" (6.00mm) |
|
|
DR04060015FIXED INDUCTOR DRW 04 X 06 1,5 U |
1,000 |
|
Datasheet |
04X06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1.5 µH | ±20% | 820 mA | - | Unshielded | 22mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.157" Dia (4.00mm) | 0.236" (6.00mm) |
|
|
DR04060470FIXED INDUCTOR DRW 04 X 06 47 UH |
1,000 |
|
Datasheet |
04X06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 47 µH | ±10% | 250 mA | - | Unshielded | 380mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.157" Dia (4.00mm) | 0.236" (6.00mm) |
|
|
DR04060150FIXED INDUCTOR DRW 04 X 06 15 UH |
1,000 |
|
Datasheet |
04X06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 15 µH | ±15% | 390 mA | - | Unshielded | 141mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.157" Dia (4.00mm) | 0.236" (6.00mm) |
|
|
DR04063300FIXED INDUCTOR DRW 04 X 06 330 U |
1,000 |
|
Datasheet |
04X06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 110 mA | - | Unshielded | 2.39Ohm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.157" Dia (4.00mm) | 0.236" (6.00mm) |
|
|
DR04060330FIXED INDUCTOR DRW 04 X 06 33 UH |
1,000 |
|
Datasheet |
04X06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 33 µH | ±15% | 330 mA | - | Unshielded | 245mOhm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.157" Dia (4.00mm) | 0.236" (6.00mm) |
|
|
DR04061500FIXED INDUCTOR DRW 04 X 06 150 U |
1,000 |
|
Datasheet |
04X06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 150 µH | ±10% | 120 mA | - | Unshielded | 1.39Ohm | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.157" Dia (4.00mm) | 0.236" (6.00mm) |
|
|
AWSIHH070705-R22L-R26FIXED IND 220NH 30A 0.26mOhm SMD |
1,000 |
|
Datasheet |
AWSIHH | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±15% | 30 A | 18A | Shielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.217" (5.50mm) |
|
|
AWSIHH060605-R20L-R28FIXED IND 200NH 30A 0.28mOhm SMD |
1,000 |
|
Datasheet |
AWSIHH | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 200 nH | ±15% | 30 A | 20A | Shielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.217" (5.50mm) |
|
|
AWSIHH060605-R10L-R28FIXED IND 100NH 30A 0.28mOhm SMD |
1,000 |
|
Datasheet |
AWSIHH | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±15% | 30 A | 37A | Shielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.217" (5.50mm) |
|
|
AWSIHH060605-R15L-R28FIXED IND 150NH 30A 0.28mOhm SMD |
1,000 |
|
Datasheet |
AWSIHH | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±15% | 30 A | 33A | Shielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.217" (5.50mm) |
|
|
AWSIHH070705-R15L-R26FIXED IND 150NH 30A 0.26mOhm SMD |
1,000 |
|
Datasheet |
AWSIHH | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±15% | 30 A | 33A | Shielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.217" (5.50mm) |
|
|
AWSIHH070705-72NL-R23FIXED IND 72NH 30A 0.24mOhm SMD |
1,000 |
|
Datasheet |
AWSIHH | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 72 nH | ±15% | 30 A | 60A | Shielded | 0.235mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.217" (5.50mm) |
|
|
AWSIHH070705-R10L-R26FIXED IND 100NH 30A 0.26mOhm SMD |
1,000 |
|
Datasheet |
AWSIHH | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±15% | 30 A | 50A | Shielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.217" (5.50mm) |
|
CTMC1812SF-561JSMD FERRITE CORE WW INDUCTOR |
510 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-1R0KSMD FERRITE CORE WW INDUCTOR |
500 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 250MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

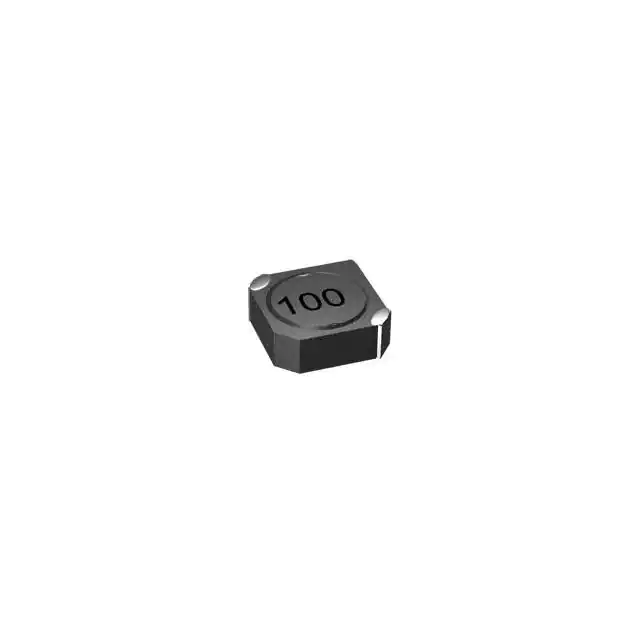

CTCDRH2D14F-1R5N1.5UH SMD SHIELDED POWR INDUCTOR |
1,855 |
|
Datasheet |
CTCDRH2D14F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 1.8 A | 1.8A | Shielded | 63mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.039" (1.00mm) |
|
CTLQ1812NF-470K47UH 220MA SMD WW INDUCTOR |
500 |
|
Datasheet |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 220 mA | - | Unshielded | 1.5Ohm Max | 35 @ 1MHz | 10MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
CTLQ1812NF-102K1MH 50MA SMD WW INDUCTOR |
490 |
|
Datasheet |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 50 mA | - | Unshielded | 25Ohm Max | 40 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
CTLQ1812NF-5R6K5.6UH 500MA SMD WW INDUCTOR |
4,278 |
|
Datasheet |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±10% | 500 mA | - | Unshielded | 470mOhm Max | 30 @ 1MHz | 33MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
