Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

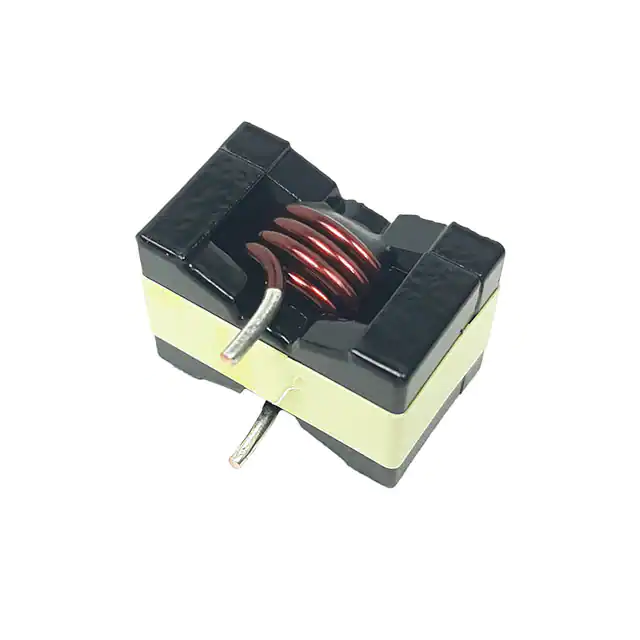

7443782012082FIXED IND 8.2UH 20.6A 5 MOHM TH |
3,590 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 8.2 µH | ±20% | 20.6 A | 25.6A | Shielded | 5mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
S34566FIXED IND 68UH 3.25A 45 MOHM TH |
2,583 |
|
Datasheet |
- | Radial, Horizontal, 8 Leads | Bulk | Active | - | - | 68 µH | - | 3.25 A | - | Unshielded | 45mOhm Max | - | 2MHz | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 0.850" L x 0.790" W (21.59mm x 20.07mm) | 0.638" (16.20mm) |
|
|
CTX250-1-52LP-RFIXED IND 250UH 1.9A 221 MOHM TH |
4,946 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 1.9 A | 2.2A | Unshielded | 221mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.823" Dia (20.90mm) | 0.512" (13.00mm) |
|
|
HFW1V2818H4R7KIND HC 4.7UH 61.2A SMD |
2,638 |
|
Datasheet |
HFW1V28xxH | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±10% | 28 A | 61.2A | Unshielded | 2.86mOhm Max | - | 26.5MHz | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | 3-SMD | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.700" (17.78mm) |
|
74441521150FIXED IND 15UH 8A 8.5 MOHM TH |
4,505 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 15 µH | ±20% | 8 A | 10A | Unshielded | 8.5mOhm | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.827" L x 0.571" W (21.00mm x 14.50mm) | 0.618" (15.70mm) |
|
|
74441521082FIXED IND 8.2UH 10A 6.2 MOHM TH |
1,322 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 8.2 µH | ±20% | 10 A | 17.5A | Unshielded | 6.2mOhm | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.827" L x 0.571" W (21.00mm x 14.50mm) | 0.618" (15.70mm) |
|

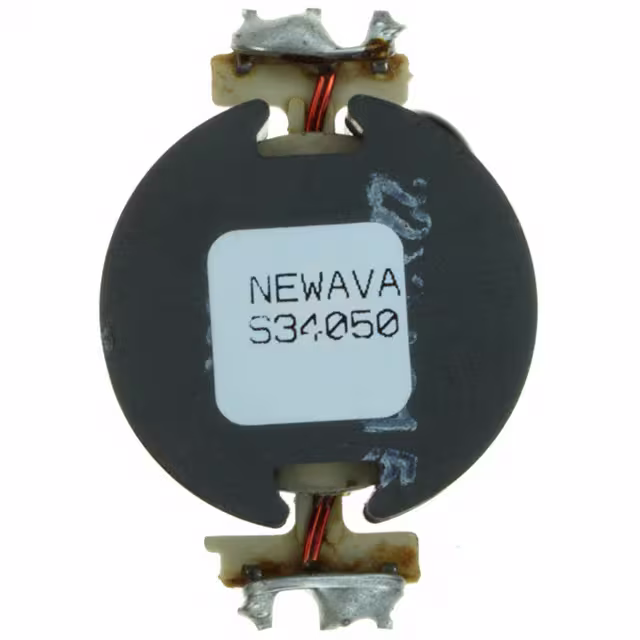

S34050FIXED IND 1MH 900MA 0.25OHM TH |
4,679 |
|
Datasheet |
- | Nonstandard | Bulk | Active | - | - | 1 mH | - | 900 mA | - | Unshielded | 250mOhm Max | - | - | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 1.287" L x 0.890" W (32.69mm x 22.61mm) | 0.550" (13.97mm) |
|
|
HFW1V2818H3R3KIND HC 3.3UH 92.5A SMD |
2,536 |
|
Datasheet |
HFW1V28xxH | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±10% | 28 A | 92.5A | Unshielded | 2.86mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | 3-SMD | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.700" (17.78mm) |
|
|
HFW1V2818H220KIND HC 22UH 14A SMD |
2,693 |
|
Datasheet |
HFW1V28xxH | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 28 A | 14A | Unshielded | 2.86mOhm Max | - | 11.5MHz | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | 3-SMD | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.700" (17.78mm) |
|
|
HFW1V2818H100KIND HC 10UH 31.2A SMD |
2,723 |
|
Datasheet |
HFW1V28xxH | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 28 A | 31.2A | Unshielded | 2.86mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | 3-SMD | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.700" (17.78mm) |
|
DFSG-20-0001FIXED IND 800MA 1.3 OHM TH |
2,597 |
|
Datasheet |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 800 mA | - | - | 1.3Ohm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 0.709" L x 0.709" W (18.00mm x 18.00mm) | - |
|
DFSG-20-0002FIXED IND 1.5A 450 MOHM TH |
1,669 |
|
Datasheet |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 1.5 A | - | - | 450mOhm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 0.709" L x 0.709" W (18.00mm x 18.00mm) | - |
|
SHBC14-1R2A0187VCMC 187UH 8A 2LN TH |
2,662 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 187 µH | ±20% | 8 A | - | Unshielded | 37.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.339" Dia (34.00mm) | 1.339" (34.00mm) |
|
2474R-06LFIXED IND 2.7UH 5.03A 14 MOHM TH |
100 |
|
Datasheet |
2474R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 2.7 µH | ±15% | 5.03 A | 3.9A | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2474R-11LFIXED IND 6.8UH 3.69A 26 MOHM TH |
100 |
|
Datasheet |
2474R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 µH | ±15% | 3.69 A | 2.5A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2474R-15LFIXED IND 15UH 2.97A 40 MOHM TH |
100 |
|
Datasheet |
2474R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±15% | 2.97 A | 1.6A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2474R-14LFIXED IND 12UH 3.09A 37 MOHM TH |
2,797 |
|
Datasheet |
2474R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 12 µH | ±15% | 3.09 A | 1.8A | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
74441521220FIXED IND 22UH 7A 13.6 MOHM TH |
4,840 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 22 µH | ±20% | 7 A | 7A | Unshielded | 13.6mOhm | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.827" L x 0.571" W (21.00mm x 14.50mm) | 0.618" (15.70mm) |
|
|
7444011480150FIXED IND 15UH 8A 10 MOHM TH |
1,282 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 15 µH | ±20% | 8 A | 9.5A | Unshielded | 10mOhm | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.551" L x 0.315" W (14.00mm x 8.00mm) | 0.630" (16.00mm) |
|
DFSG-25-0002FIXED IND 3A 100 MOHM TH |
3,417 |
|
Datasheet |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 3 A | - | - | 100mOhm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 0.886" L x 0.886" W (22.50mm x 22.50mm) | - |
