Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1540M16FIXED IND 125UH 7.75A 32 MOHM TH |
2,126 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 125 µH | ±15% | 7.75 A | - | Unshielded | 32mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | - |
|
7843763521015THT HIGH CURRENT INDUCTOR 3521; |
4,013 |
|
Datasheet |
WE-HCFAT | Nonstandard | Tray | Active | Wirewound | - | 1.5 µH | ±20% | 75 A | 170A | Unshielded | 0.39mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 0.945" (24.00mm) |
|

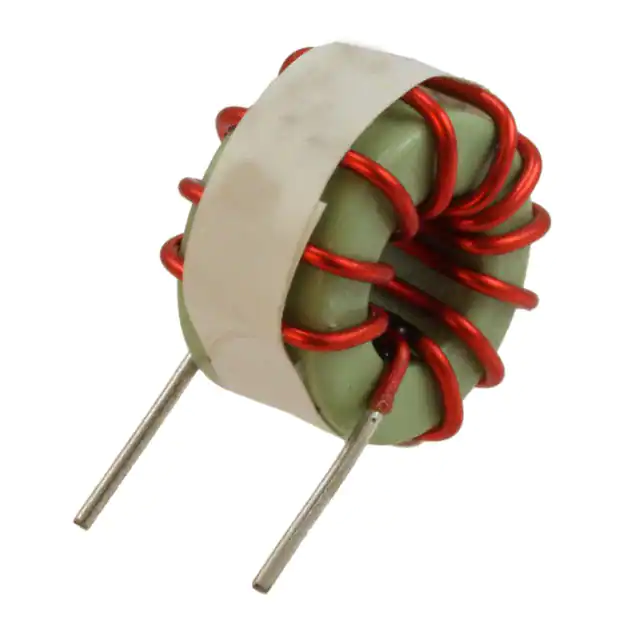

CTX10-16-52-RFIXED IND 10UH 27.3A 3.2 MOHM TH |
2,008 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 27.3 A | 29.3A | Unshielded | 3.2mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.980" Dia x 0.945" W (50.30mm x 24.00mm) | - |
|
MPXV1D2213L1R5FIXED IND 1.5UH 68A 1.2 MOHM SMD |
2,885 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 68 A | 60A | Shielded | 1.2mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
78437613521022THT HIGH CURRENT INDUCTOR 3521; |
1,068 |
|
Datasheet |
WE-HCFAT | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 75 A | 120A | Unshielded | 0.39mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 0.945" (24.00mm) |
|
|
78437613521015THT HIGH CURRENT INDUCTOR 3521; |
4,301 |
|
Datasheet |
WE-HCFAT | Nonstandard | Tray | Active | Wirewound | - | 1.5 µH | ±20% | 75 A | 175A | Unshielded | 0.39mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 0.945" (24.00mm) |
|
|
78437613521033THT HIGH CURRENT INDUCTOR 3521; |
4,855 |
|
Datasheet |
WE-HCFAT | Nonstandard | Tray | Active | Wirewound | - | 3.3 µH | ±20% | 75 A | 76A | Unshielded | 0.39mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 0.945" (24.00mm) |
|
|
4470-01FFIXED IND 1UH 4A 30 MOHM TH |
2,098 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 µH | ±1% | 4 A | - | Unshielded | 30mOhm Max | 130 @ 15MHz | 136MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470R-05FFIXED IND 2.2UH 3.5A 40 MOHM TH |
1,970 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.2 µH | ±1% | 3.5 A | - | Unshielded | 40mOhm Max | 130 @ 10MHz | 92MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
Z28EFIXED IND 21UH 600MA 2.7 OHM |
4,915 |
|
Datasheet |
Z | - | Bulk | Active | - | - | 21 µH | - | 600 mA | - | - | 2.7Ohm | - | - | - | - | 1 kHz | - | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - |
|
|
Z28FIXED IND 21UH 600MA 2.7 OHM |
2,034 |
|
Datasheet |
Z | - | Bulk | Active | - | - | 21 µH | - | 600 mA | - | - | 2.7Ohm | - | - | - | - | 1 kHz | - | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - |
|
1539M16FIXED IND 500UH 3.7A 129 MOHM TH |
2,840 |
|
Datasheet |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 3.7 A | - | Unshielded | 129mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.220" Dia (30.99mm) | 1.110" (28.19mm) |
|
5022R-221FFIXED IND 220NH 2.58A 55MOHM SMD |
3,659 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±1% | 2.58 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
LHDM005571AZDV0EDUST CHOKE COIL |
3,437 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | 800 µH | ±20% | 5 A | - | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 120°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 2.087" Dia x 1.043" W (53.00mm x 26.50mm) | - |
|
PFC3125ER-231K06B-00CHOKE COMMON MODE |
1,429 |
|
Datasheet |
PFC | Radial, Horizontal, 6 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 230 µH | ±10% | 6.4 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.299" L x 1.024" W (33.00mm x 26.00mm) | 1.063" (27.00mm) |
|
|
894KM2502HCHORIZONTAL TOROIDAL CHOKE |
1,359 |
|
Datasheet |
KMHC | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 25 µH | ±10% | 12.8 A | 11A | Shielded | 12mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.450" Dia (36.83mm) | 0.850" (21.59mm) |
|
|
760800403FIXED IND 355UH 12.3A 0.035OHM |
4,291 |
|
Datasheet |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 355 µH | ±20% | 12.3 A | 9.5A | Unshielded | 35mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.087" Dia (53.00mm) | 1.969" (50.00mm) |
|
SHBC24N-2R1B0039VCMC 39UH 30A 2LN TH |
3,680 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 39 µH | ±20% | 30 A | - | Unshielded | 6.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.972" Dia (50.10mm) | 1.972" (50.10mm) |
|
|
760800201FIXED IND 194UH 12.4A 0.04OHM |
3,642 |
|
Datasheet |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 194 µH | ±20% | 12.4 A | 19A | Unshielded | 40mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.835" Dia (72.00mm) | 1.220" (31.00mm) |
|
|
7843763540100THT HIGH CURRENT INDUCTOR 3540; |
2,592 |
|
Datasheet |
WE-HCFAT | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 56.7 A | 62A | Unshielded | 1.2mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
