Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4470R-04KFIXED IND 1.8UH 4A 30 MOHM TH |
100 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.8 µH | ±10% | 4 A | - | Unshielded | 30mOhm Max | 130 @ 10MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
HFW1V2815H330KIND HC 33UH 5.1A SMD |
4,149 |
|
Datasheet |
HFW1V28xxH | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±10% | 30 A | 5.1A | Unshielded | 2.05mOhm Max | - | 7.2MHz | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | 3-SMD | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
HFW1V2815H150KIND HC 15UH 14A SMD |
3,628 |
|
Datasheet |
HFW1V28xxH | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 30 A | 14A | Unshielded | 2.05mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | 3-SMD | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
HFW1V2815H2R2KIND HC 2.2UH 100A SMD |
2,504 |
|
Datasheet |
HFW1V28xxH | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±10% | 30 A | 100A | Unshielded | 2.05mOhm Max | - | 35.5MHz | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | 3-SMD | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
HFW1V2815H6R8KIND HC 6.8UH 34.5A SMD |
4,084 |
|
Datasheet |
HFW1V28xxH | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±10% | 30 A | 34.5A | Unshielded | 2.05mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | 3-SMD | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
HFW1V2815H4R7KIND HC 4.7UH 48A SMD |
4,670 |
|
Datasheet |
HFW1V28xxH | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±10% | 30 A | 48A | Unshielded | 2.05mOhm Max | - | 22.5MHz | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | 3-SMD | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
B82559A5472A033ERU33 PTH FLAT WIRE INDUCTOR 4.7 |
2,617 |
|
Datasheet |
ERU33 - Flat Wire Inductor | Nonstandard | Tray | Active | Wirewound | Ferrite | 4.7 µH | ±12% | 45.5 A | 81A | Shielded | 1.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.154" W (33.00mm x 29.30mm) | 0.606" (15.40mm) |
|
|
HFW1V2210H4R7KIND HC 4.7UH 22A SMD |
4,695 |
|
Datasheet |
HFW1V22xxH | 3-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±10% | 28 A | 22A | Unshielded | 2.4mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | - | 0.402" (10.20mm) |
|
|
HFW1V2213H100KIND HC 10UH 21A SMD |
3,589 |
|
Datasheet |
HFW1V22xxH | 3-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 22 A | 21A | Unshielded | 3.9mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | - | 0.492" (12.50mm) |
|
|
HFW1V2210H6R8KIND HC 6.8UH 19A SMD |
2,860 |
|
Datasheet |
HFW1V22xxH | 3-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±10% | 26.5 A | 19A | Unshielded | 2.9mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | - | 0.402" (10.20mm) |
|
|
HFW1V2215H200KIND HC 20UH 14.3A SMD |
4,263 |
|
Datasheet |
HFW1V22xxH | 3-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 20 µH | ±10% | 19 A | 14.3A | Unshielded | 6.4mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | - | 0.571" (14.50mm) |
|
|
B82559A4352A033ERU33 PTH FLAT WIRE INDUCTOR 3.5 |
1,222 |
|
Datasheet |
ERU33 - Flat Wire Inductor | Nonstandard | Tray | Active | Wirewound | Ferrite | 3.5 µH | ±12% | 57.5 A | 87A | Shielded | 0.85mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.154" W (33.00mm x 29.30mm) | 0.606" (15.40mm) |
|
|
7447065WE-FI LEADED TOROIDAL LINE CHOKE |
4,319 |
|
Datasheet |
WE-FI | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±20% | 3.1 A | - | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.024" Dia (26.00mm) | - |
|
|
4470R-45JFIXED IND 4.7MH 95MA 53 OHM TH |
100 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.7 mH | ±5% | 95 mA | - | Unshielded | 53Ohm Max | 65 @ 250kHz | 760kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|

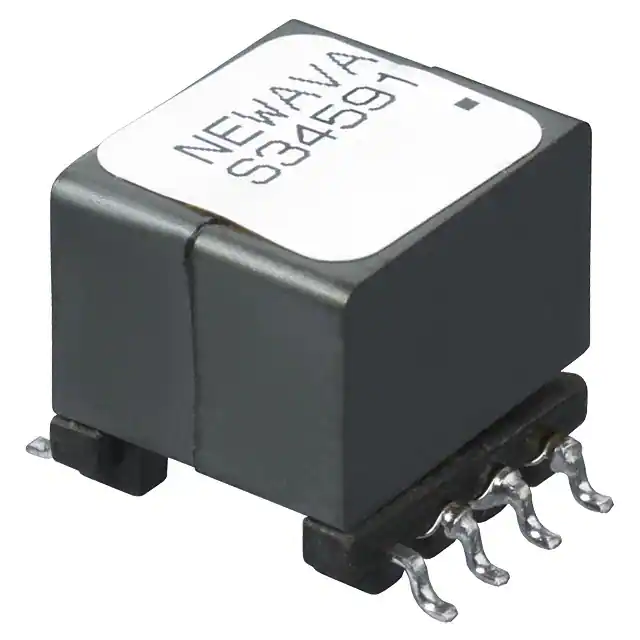

S34591FIXED IND 150UH 630MA 180MOHM SM |
3,971 |
|
Datasheet |
- | Nonstandard | Bulk | Active | - | - | 150 µH | - | 630 mA | - | Unshielded | 180mOhm Max | - | 950kHz | - | -45°C ~ 250°C | 10 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.440" (11.18mm) |
|
|
5022R-222JUNSHIELDED SMT INDUCTOR - ROHS |
143 |
|
Datasheet |
502 | Nonstandard | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±5% | 620 mA | - | Unshielded | 950mOhm Max | 33 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
5022R-471JFIXED IND 470NH 1.75A 120MOHM SM |
100 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 470 nH | ±5% | 1.75 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
S34042FIXED IND 330UH 1A 0.11OHM TH |
4,434 |
|
Datasheet |
- | Nonstandard | Bulk | Active | - | - | 330 µH | - | 1 A | - | Unshielded | 110mOhm Max | - | - | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 1.125" L x 0.740" W (28.58mm x 18.80mm) | 0.450" (11.43mm) |
|

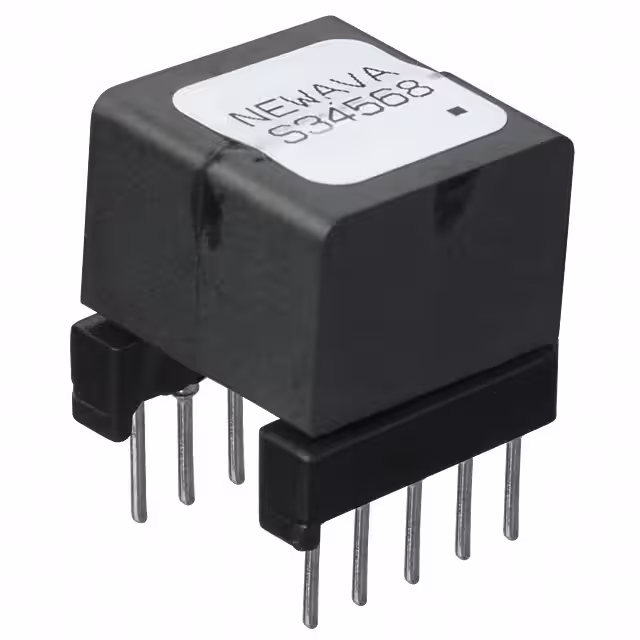

S34568FIXED IND 33UH 3.6A 35 MOHM TH |
1,499 |
|
Datasheet |
- | Radial, Horizontal, 10 Leads | Bulk | Active | - | - | 33 µH | - | 3.6 A | - | Unshielded | 35mOhm Max | - | 2MHz | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.520" (13.21mm) |
|
2300HT-821-V-RCFIXED IND 820UH 3.1A 300 MOHM TH |
1,862 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 820 µH | ±15% | 3.1 A | - | Shielded | 300mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
