Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLH-14-0003FIXED IND 50UH 2A 50 MOHM TH |
4,347 |
|
Datasheet |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | 50 µH | ±15% | 2 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.591" L x 0.413" W (15.00mm x 10.50mm) | - |
|
5022-223JFIXED IND 22UH 368MA 2.5 OHM SMD |
100 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 22 µH | ±5% | 368 mA | - | Unshielded | 2.5Ohm Max | 75 @ 2.5MHz | 30MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
7443091062FIXED IND 620NH 34A 0.00042OHM |
2,758 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 620 nH | ±20% | 34 A | 74A | Shielded | 0.42mOhm | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1411 | 0.571" L x 0.531" W (14.50mm x 13.50mm) | 0.421" (10.70mm) |
|
AMPLA1707Q-101MTFIXED IND 100UH 5.3A 118MOHM SMD |
3,331 |
|
Datasheet |
AMPLA1707Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 100 µH | ±20% | 5.3 A | 12A | Shielded | 118mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
TCK-149FIXED IND 22UH 1.1A 240MOHM SMD |
3,322 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 22 µH | ±20% | 1.1 A | - | Unshielded | 240mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.126" (3.20mm) |
|
2200HT-151-H-RCFIXED IND 150UH 4.8A 75 MOHM TH |
1,401 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 150 µH | ±15% | 4.8 A | - | Shielded | 75mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
SRP1510CA-6R8MIND,16.5X15.5X9.7MM,6.8UH20%,26A |
3,466 |
|
Datasheet |
SRP1510CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 26 A | 36A | Shielded | 4.6mOhm Max | 30 @ 100kHz | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
|
1447509CFIXED IND 4.7MH 900MA 1.4 OHM TH |
4,932 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 4.7 mH | ±10% | 900 mA | - | Unshielded | 1.4Ohm Max | 57 @ 10kHz | 500kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.917" (23.30mm) |
|
|
ETQ-PAMR68JFWFIXED IND 0.68UH 71A 0.70MOHM |
195 |
|
Datasheet |
PCC-M15A0MF | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 65 A | 71A | Shielded | 0.77mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | 4-SMD | 0.677" L x 0.614" W (17.20mm x 15.60mm) | 0.413" (10.50mm) |
|
|
2256R-17LFIXED IND 22UH 1.61A 152 MOHM TH |
3,061 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 22 µH | ±15% | 1.61 A | 1.61A | Unshielded | 152mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
SRP1770CC-6R8MIND SMD 6.8UH 22A |
3,382 |
|
Datasheet |
SRP1770CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 22 A | 30A | Shielded | 9.2mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770CC-470MIND SMD 47UH 8.7A |
3,629 |
|
Datasheet |
SRP1770CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 47 µH | ±20% | 8.7 A | 13A | Shielded | 53mOhm Max | - | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
4470-04KFIXED IND 1.8UH 4A 30 MOHM TH |
4,707 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.8 µH | ±10% | 4 A | - | Unshielded | 30mOhm Max | 130 @ 10MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
SRP1513CA-6R8MIND,16.5X15.5X12.7MM,6.8UH20%,27 |
2,705 |
|
Datasheet |
SRP1513CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 27 A | 37A | Shielded | 4.2mOhm Max | 40 @ 100kHz | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
|
SRP1513CA-5R6MIND,16.5X15.5X12.7MM,5.6UH20%,29 |
3,949 |
|
Datasheet |
SRP1513CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 5.6 µH | ±20% | 29 A | 40A | Shielded | 3.9mOhm Max | 40 @ 100kHz | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
|
SRP1513CA-100MIND,16.5X15.5X12.7MM,10UH20%,25A |
2,836 |
|
Datasheet |
SRP1513CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 25 A | 30A | Shielded | 7mOhm Max | 40 @ 100kHz | 8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
AMPLA1707S-3R3MTFIXED IND 3.3UH 28A 3.9 MOHM SMD |
4,453 |
|
Datasheet |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 28 A | 54A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|

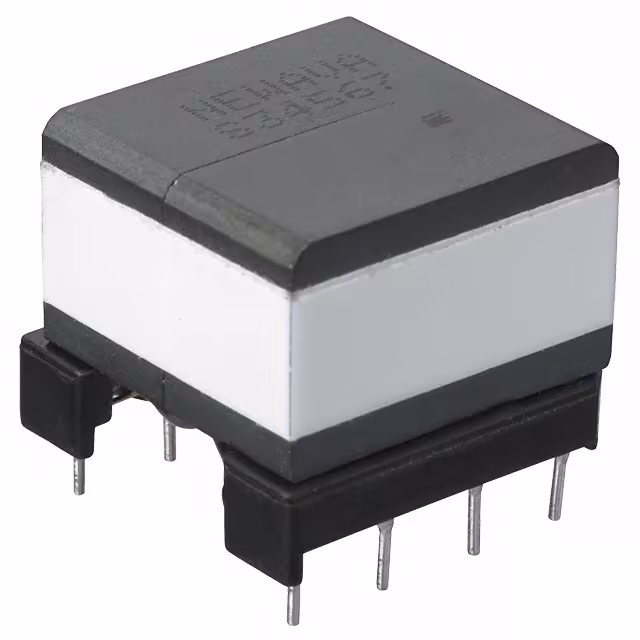

S34567FIXED IND 47UH 3.7A 40 MOHM TH |
2,018 |
|
Datasheet |
- | Radial, Horizontal, 8 Leads | Bulk | Active | - | - | 47 µH | - | 3.7 A | - | Unshielded | 40mOhm Max | - | 2MHz | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 0.850" L x 0.790" W (21.59mm x 20.07mm) | 0.638" (16.20mm) |
|
|
AMPLA1707S-680MTFIXED IND 68UH 7A 80 MOHM SMD |
1,113 |
|
Datasheet |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 68 µH | ±20% | 7 A | 13A | Shielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMPLA1707S-101MTFIXED IND 100UH 5.3A 118MOHM SMD |
4,910 |
|
Datasheet |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 100 µH | ±20% | 5.3 A | 12A | Shielded | 118mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
