Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQCA322525T1R5MRFIXED IND 1.5UH 1A 0.06 OHM SMD |
908 |
|
Datasheet |
LSQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 1 A | - | Unshielded | 60mOhm | - | 220MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
LSQCA322525T6R8MRFIXED IND 6.8UH 620MA 0.12OHM SM |
874 |
|
Datasheet |
LSQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 620 mA | - | Unshielded | 120mOhm | - | 50MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
LSQCA322525T330KRFIXED IND 33UH 300MA 0.41OHM SMD |
759 |
|
Datasheet |
LSQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±10% | 300 mA | - | Unshielded | 410mOhm | - | 13MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
LSQCA322525T220MRFIXED IND 22UH 330MA 0.27OHM SMD |
586 |
|
Datasheet |
LSQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 330 mA | - | Unshielded | 270mOhm | - | 17MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
CWF2414-1R0KIND,2.2X1.4X1.3MM,1UH10%,1.3A,NO |
573 |
|
Datasheet |
CWF2414 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±10% | 1.3 A | 1.1A | Unshielded | 130mOhm | 14 @ 7.9MHz | 208MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.055" (1.40mm) |
|
LSQMB201616T101JFIXED IND 100UH 80MA 8 OHM SMD |
466 |
|
Datasheet |
LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±5% | 80 mA | - | Unshielded | 8Ohm | 15 @ 796kHz | 9MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA251818T4R7MFIXED IND 4.7UH 920MA 260MOHM SM |
1,000 |
|
Datasheet |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 920 mA | 680mA | Unshielded | 260mOhm Max | - | 41MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LQW18ANR18G80DFIXED IND 180NH 310MA 1.65OHM SM |
119 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 180 nH | ±2% | 310 mA | - | Unshielded | 1.65Ohm Max | 25 @ 100MHz | 1.38GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
ILSB1206ER6R8KFIXED IND 6.8UH 25MA 800MOHM SMD |
850 |
|
Datasheet |
ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±10% | 25 mA | - | Shielded | 800mOhm Max | 45 @ 4MHz | 34MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
LQW15AN5N8B0ZDFIXED IND 5.8NH 700MA 0.09OHM SM |
802 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.8 nH | ±0.1nH | 700 mA | - | Unshielded | 90mOhm Max | 25 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LSANB2016KKT4R7MFIXED IND 4.7UH 1A 380 MOHM SMD |
390 |
|
Datasheet |
LSAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 950 mA | 1A | Shielded | 380mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
ILSB1206ER180KFIXED IND 18UH 5MA 700 MOHM SMD |
963 |
|
Datasheet |
ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 18 µH | ±10% | 5 mA | - | Shielded | 700mOhm Max | 45 @ 1MHz | 21MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|

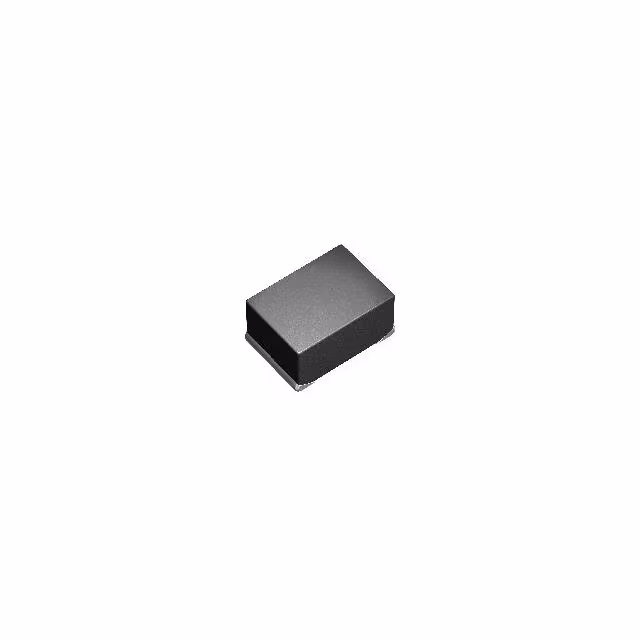

LSANB2520KKT4R7MFIXED IND 4.7UH 1.1A 300MOHM SMD |
870 |
|
Datasheet |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 1.1 A | 1.3A | Shielded | 300mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

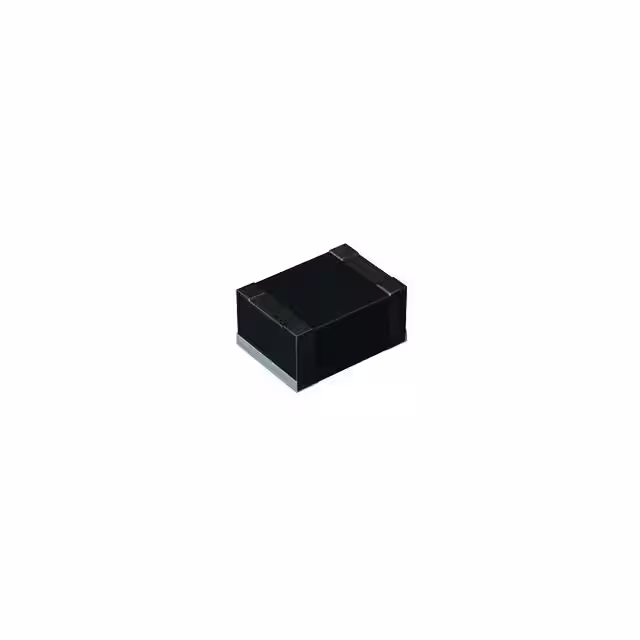

LSQPB322517T101KFIXED IND 100UH 250MA 3 OHM SMD |
849 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 250 mA | 270mA | Unshielded | 3Ohm Max | - | 5MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
AIUR-03-221KFIXED IND 220UH 500MA 650MOHM TH |
471 |
|
Datasheet |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 500 mA | 640mA | Unshielded | 650mOhm Max | 20 @ 796kHz | 2.7MHz | - | -25°C ~ 85°C | 796 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|

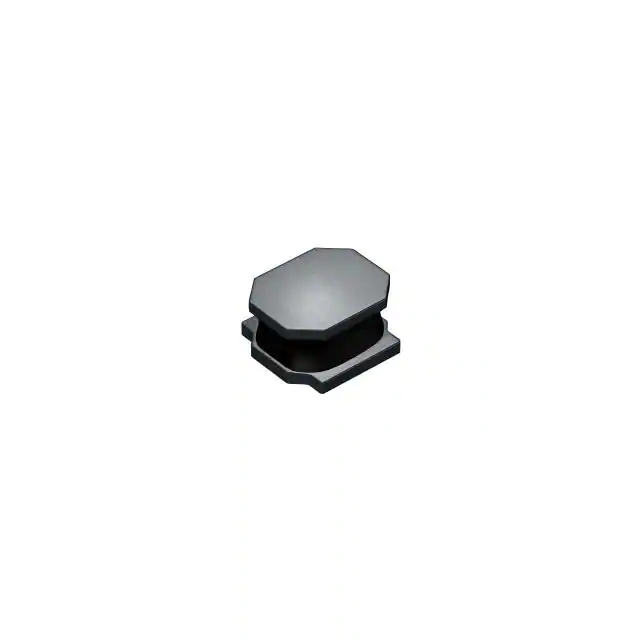

LSXND4040TKL680MDGFIXED IND 68UH 320MA 1.2 OHM SMD |
946 |
|
Datasheet |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 320 mA | 520mA | Shielded | 1.2Ohm Max | - | 8.3MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LQG18HH56NJ00DFIXED IND 56NH 400MA 0.7OHM SMD |
895 |
|
Datasheet |
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 56 nH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 12 @ 100MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQW2BAS36NG00LFIXED IND 36NH 500MA 270MOHM SMD |
752 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 36 nH | ±2% | 500 mA | - | Unshielded | 270mOhm Max | 55 @ 500MHz | 1.9GHz | - | -40°C ~ 85°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQG18HH4N7S00DFIXED IND 4.7NH 800MA 0.16OHM SM |
710 |
|
Datasheet |
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 4.7 nH | ±0.3nH | 800 mA | - | Unshielded | 160mOhm Max | 12 @ 100MHz | 3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

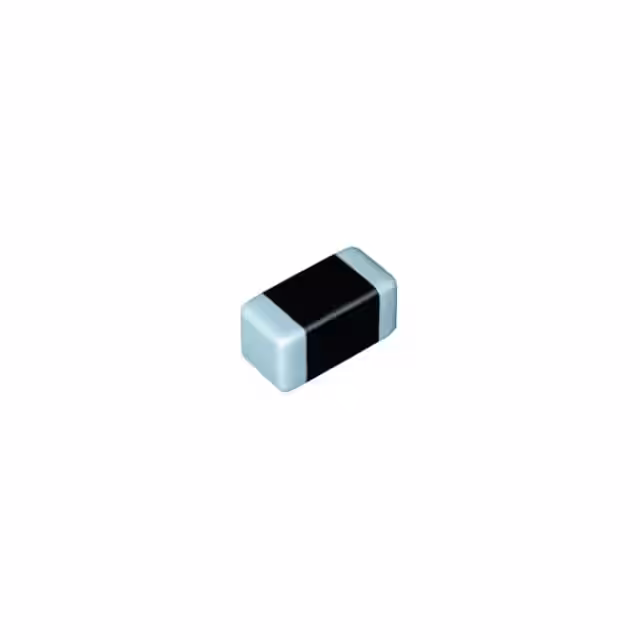

LSQPA322525T3R3MRFIXED IND 3.3UH 1.04A 123.5 MOHM |
1,000 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.04 A | 2A | Unshielded | 123.5mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
