Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3613C330KFIXED IND 33UH 160MA 4 OHM SMD |
1,090 |
|
Datasheet |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±10% | 160 mA | - | Unshielded | 4Ohm Max | 50 @ 2.52MHz | 11MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
DR1050-681-RFIXED IND 680UH 560MA 1.369 OHM |
987 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±30% | 560 mA | 550mA | Shielded | 1.369Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
ECS-MPIL0530-3R3MCFIXED IND 3.3UH 7A 38 MOHM SMD |
805 |
|
Datasheet |
ECS-MPIL0530 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 7 A | - | Shielded | 38mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
3613CR47MFIXED IND 470NH 545MA 320MOHM SM |
391 |
|
Datasheet |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±20% | 545 mA | - | Unshielded | 320mOhm Max | 40 @ 25.2MHz | 145MHz | - | -30°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
3613C3R3KFIXED IND 3.3UH 355MA 800MOHM SM |
336 |
|
Datasheet |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±10% | 355 mA | - | Unshielded | 800mOhm Max | 50 @ 7.96MHz | 45MHz | - | -30°C ~ 100°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CDRH4D18CLDNP-101PCFIXED IND 100UH 350MA 962MOHM SM |
890 |
|
Datasheet |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±25% | 350 mA | 200mA | Shielded | 962mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
AWVS006060284R7M00FIXED IND 4.7UH 3.2A 38 MOHM SMD |
822 |
|
Datasheet |
AWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 3.2 A | 3.7A | Shielded | 38mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|

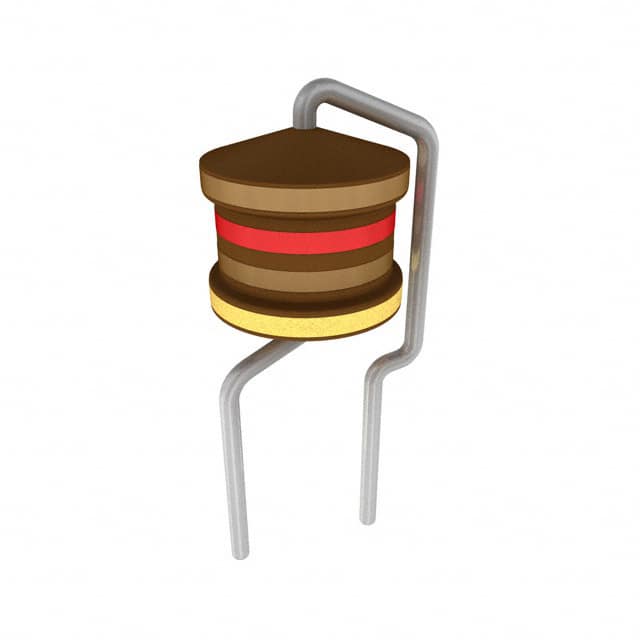

B82144B2124J000FIXED IND 120UH 1.1A 600 MOHM TH |
556 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 1.1 A | 850mA | Unshielded | 600mOhm Max | 40 @ 79.6kHz | 4.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
|
3613CR68MFIXED IND 680NH 500MA 400MOHM SM |
380 |
|
Datasheet |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±20% | 500 mA | - | Unshielded | 400mOhm Max | 40 @ 25.2MHz | 135MHz | - | -30°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SDE0805A-270MFIXED IND 27UH 2.2A 120 MOHM SMD |
334 |
|
Datasheet |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.2 A | 1.7A | Unshielded | 120mOhm Max | - | 14.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744764012FIXED IND 1.2UH 390MA 750MOHM SM |
1,643 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 390 mA | - | Unshielded | 750mOhm Max | 30 @ 7.96MHz | 320MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
49470SCFIXED IND 47UH 2.3A 100MOHM SMD |
717 |
|
Datasheet |
4900S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.3 A | - | Shielded | 100mOhm Max | 52 @ 1MHz | 9MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|

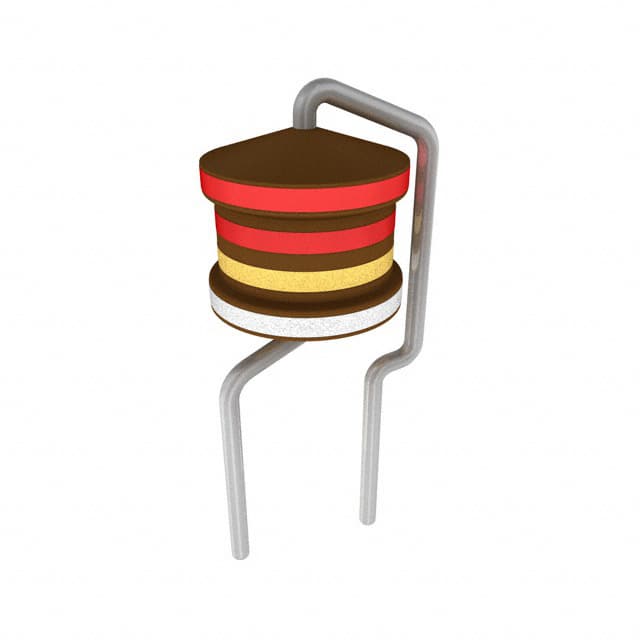

B82144B2222K000FIXED IND 2.2UH 3.65A 55 MOHM TH |
643 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 3.65 A | 6A | Unshielded | 55mOhm Max | 60 @ 2.52MHz | 140MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

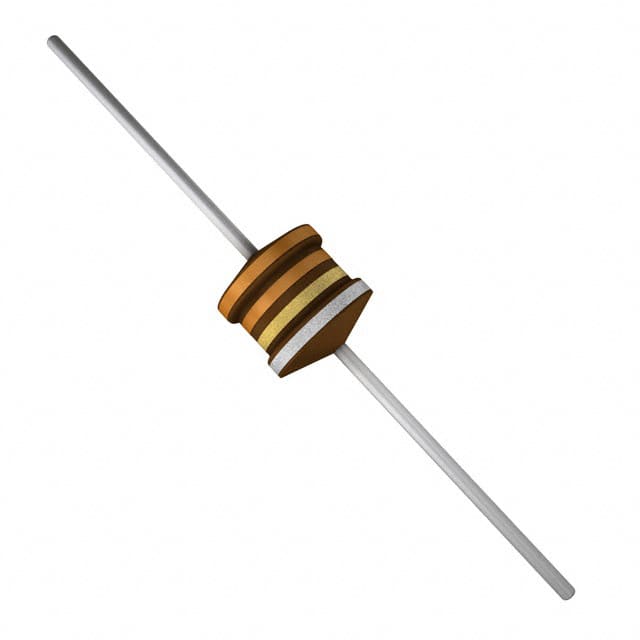

B82144F2332K000FIXED IND 3.3UH 3.5A 0.065OHM TH |
590 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 3.5 A | 5A | Unshielded | 65mOhm Max | 60 @ 2.52MHz | 100MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
ASPIAIG-S8050-4R7M-TFIXED IND 4.7UH 4.6A 23 MOHM SMD |
315 |
|
Datasheet |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 4.6 A | 7.5A | Shielded | 23mOhm | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.205" (5.20mm) |
|
|
ASPIAIG-S8050-100M-TFIXED IND 10UH 3.6A 38 MOHM SMD |
203 |
|
Datasheet |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 3.6 A | 5.2A | Shielded | 38mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.205" (5.20mm) |
|
|
ASPIAIG-S8050-330M-TFIXED IND 33UH 2A 122 MOHM SMD |
3,230 |
|
Datasheet |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 33 µH | ±20% | 2 A | 3A | Shielded | 122mOhm | - | 7.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.205" (5.20mm) |
|
LCXNH8080YKL680MJGINDUCTOR POWER 68UH SMD |
1,947 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 1.2 A | 1.3A | Unshielded | 210mOhm | - | 7MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
SDR0805-390KLFIXED IND 39UH 1.1A 160 MOHM SMD |
1,904 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 1.1 A | 1.7A | Unshielded | 160mOhm Max | 15 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-3R9MLFIXED IND 3.9UH 4.4A 20 MOHM SMD |
1,703 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 4.4 A | 5.7A | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 45MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
