Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDE0604A-121KFIXED IND 120UH 750MA 900MOHM SM |
844 |
|
Datasheet |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 750 mA | 600mA | Unshielded | 900mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
NRS8040T3R6NJGJVFIXED IND 3.6UH 4.9A 19.5MOHM SM |
764 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | 6.4A | Shielded | 19.5mOhm Max | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

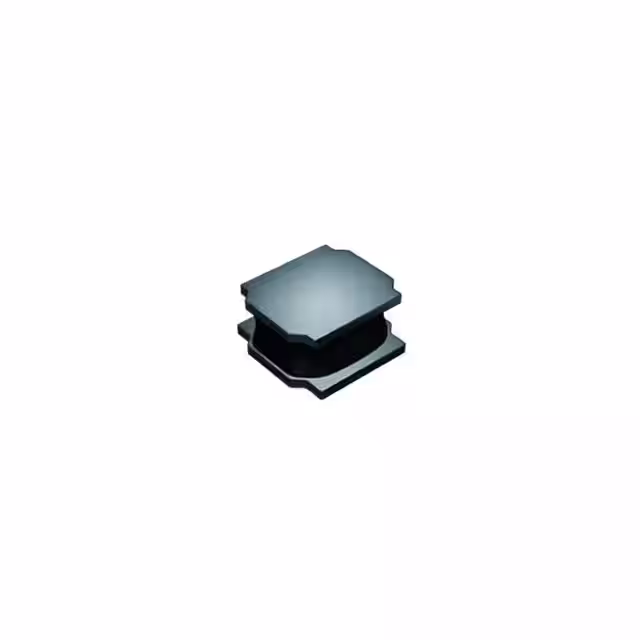

LCXNH8080YKL101MJGFIXED IND 100UH 1A 364 MOHM SMD |
727 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1.1A | Unshielded | 280mOhm | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
SDCHA1V8040-820-RIND SMD POWER 82.0UH 1.4A |
690 |
|
Datasheet |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 82 µH | ±20% | 1.4 A | 1.6A | Shielded | 230mOhm | - | 8.5MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

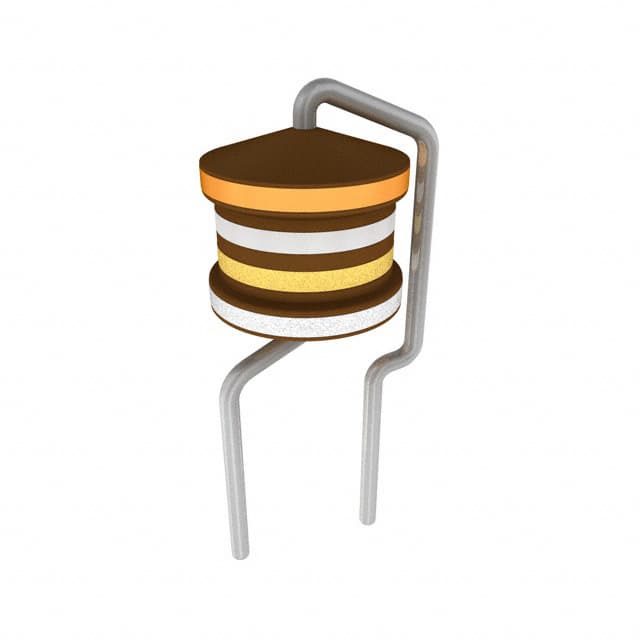

B82144B2392K000FIXED IND 3.9UH 3.35A 75 MOHM TH |
639 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 3.35 A | 4.4A | Unshielded | 75mOhm Max | 60 @ 2.52MHz | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
AIAC-1812-27NK-TFIXED IND 27NH 3.5A 4.6 MOHM SMD |
615 |
|
Datasheet |
AIAC-1812 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 27 nH | ±10% | 3.5 A | - | Unshielded | 4.6mOhm Max | 100 @ 150MHz | 2.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.146" (3.70mm) |
|
MDMK3030TR47MMFIXED IND 470NH 4.2A 27 MOHM SMD |
565 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.2 A | 6.3A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
AIAC-2712C-22N0J-TFIXED IND 22NH 3A 5 MOHM SMD |
241 |
|
Datasheet |
AIAC-2712C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 3 A | - | Unshielded | 5mOhm Max | 100 @ 150MHz | 2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.236" L x 0.098" W (6.00mm x 2.50mm) | 0.110" (2.80mm) |
|
BWVS008080402R2M00FIXED IND 2.2UH 7.2A 11.5MOHM SM |
109 |
|
Datasheet |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 7.2 A | 9.2A | Shielded | 11.5mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
MDMK3030T1R5MMFIXED IND 1.5UH 2.5A 74 MOHM SMD |
2,036 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.5 A | 3.4A | Shielded | 74mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
SDR0503-270MLFIXED IND 27UH 800MA 320MOHM SMD |
1,374 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 800 mA | 1A | Unshielded | 320mOhm Max | 20 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-390KLFIXED IND 39UH 650MA 420MOHM SMD |
1,242 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 650 mA | 800mA | Unshielded | 420mOhm Max | 15 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-122JLFIXED IND 1.2MH 63MA 12 OHM SMD |
1,176 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±5% | 63 mA | 90mA | Unshielded | 12Ohm Max | 40 @ 252kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
744766133FIXED IND 33UH 160MA 4 OHM SMD |
929 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 160 mA | - | Unshielded | 4Ohm Max | 50 @ 2.52MHz | 14MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
SBC1-151-431FIXED IND 150UH 570MA 650MOHM TH |
476 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 570 mA | 470mA | Unshielded | 650mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.413" (10.50mm) |
|
|
SBC1-470-711FIXED IND 47UH 710MA 340 MOHM TH |
469 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 710 mA | 710mA | Unshielded | 340mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.413" (10.50mm) |
|
|
SBC2-330-112FIXED IND 33UH 1.1A 180 MOHM TH |
460 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 1.2A | Unshielded | 180mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.315" (8.00mm) |
|
|
SDR0503-150MLFIXED IND 15UH 1.05A 190MOHM SMD |
363 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.05 A | 1.26A | Unshielded | 190mOhm Max | 20 @ 2.52MHz | 27MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
B82144B1335J000FIXED IND 3.3MH 150MA 13.8OHM TH |
246 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 150 mA | - | Unshielded | 13.8Ohm Max | 60 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.571" (14.50mm) |
|
|
SBC1-152-181FIXED IND 1.5MH 180MA 8 OHM TH |
2,648 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 180 mA | 120mA | Unshielded | 8Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.413" (10.50mm) |
