Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-8040S-910M-TFIXED IND 91UH 1.05A 272MOHM SMD |
970 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 91 µH | ±20% | 1.05 A | 1.2A | Shielded | 272mOhm | - | 4.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
SDR0703-151KLFIXED IND 150UH 250MA 2 OHM SMD |
950 |
|
Datasheet |
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 250 mA | 340mA | Unshielded | 2Ohm Max | 30 @ 796kHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|

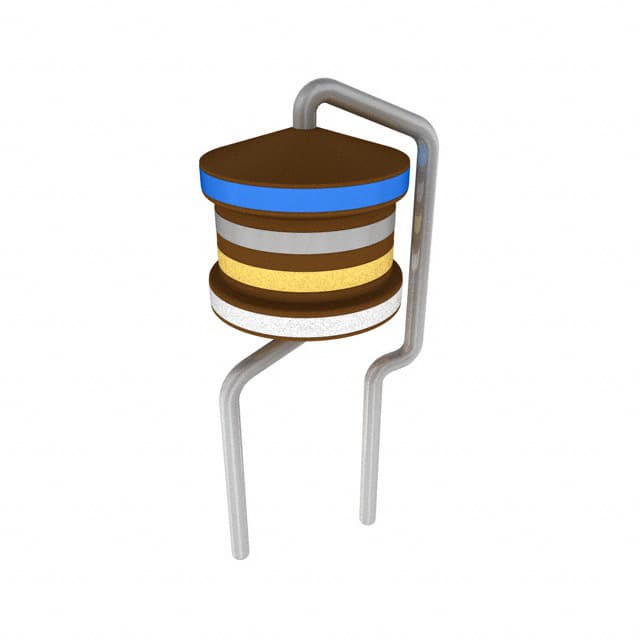

B82144B2682K000FIXED IND 6.8UH 2.75A 95 MOHM TH |
648 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.75 A | 3.5A | Unshielded | 95mOhm Max | 50 @ 2.52MHz | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
L04022R7BHNTRFIXED IND 2.7NH 250MA 250MOHM SM |
615 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.7 nH | ±0.1nH | 250 mA | - | Unshielded | 250mOhm Max | 15 @ 450MHz | 9.5GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
SDR0703-101KLFIXED IND 100UH 270MA 1.56OHM SM |
578 |
|
Datasheet |
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 270 mA | 400mA | Unshielded | 1.56Ohm Max | 33 @ 796kHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
AIUR-16-4R7KFIXED IND 4.7UH 1.3A 22 MOHM TH |
491 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 1.3 A | 2.5A | Unshielded | 22mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
MDPK5050T100MMFIXED IND 10UH 1.7A 225 MOHM SMD |
422 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.7 A | 2.2A | Shielded | 225mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
|
AIUR-16-472KFIXED IND 4.7MH 76MA 11.3 OHM TH |
316 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 76 mA | 76mA | Unshielded | 11.3Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-100KFIXED IND 10UH 1.3A 41 MOHM TH |
200 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.3 A | 1.7A | Unshielded | 41mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-150KFIXED IND 15UH 1.3A 50 MOHM TH |
200 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.3 A | 1.4A | Unshielded | 50mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
ASPI-8040S-510M-TFIXED IND 51UH 1.5A 142 MOHM SMD |
187 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 51 µH | ±20% | 1.5 A | 1.7A | Shielded | 142mOhm | - | 6.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AIUR-16-102KFIXED IND 1MH 150MA 3 OHM TH |
179 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 150 mA | 165mA | Unshielded | 3Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
B82144B2152K000FIXED IND 1.5UH 4.1A 45 MOHM TH |
157 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 4.1 A | 7.2A | Unshielded | 45mOhm Max | 60 @ 2.52MHz | 170MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
744764156FIXED IND 56UH 55MA 8 OHM SMD |
2,206 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 55 mA | - | Unshielded | 8Ohm Max | 30 @ 2.52MHz | 14MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
AMXLA-Q6030-1R0M-TIND 1UH 13A 8M |
977 |
|
Datasheet |
AMXLA-Q6030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 13 A | 14A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
AIUR-02HL-331KFIXED IND 330UH 390MA 620MOHM TH |
889 |
|
Datasheet |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 390 mA | 780mA | Unshielded | 620mOhm Max | 20 @ 790kHz | - | - | -25°C ~ 85°C | 790 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AMXLA-Q6030-220M-TIND 22UH 2.6A 168M |
794 |
|
Datasheet |
AMXLA-Q6030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 2.8 A | 2.6A | Shielded | 168mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
AIUR-07-101KFIXED IND 100UH 390MA 660MOHM TH |
646 |
|
Datasheet |
AIUR-07 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 390 mA | 500mA | Unshielded | 660mOhm Max | 43 @ 1kHz | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.201" (5.10mm) |
|
744917227FIXED IND 270NH 260MA 2.25OHM SM |
502 |
|
Datasheet |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±2% | 260 mA | - | Unshielded | 2.25Ohm Max | 25 @ 250MHz | 1.05GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
SBCP-47HY1R5BFIXED IND 1.5UH 2.85A 24 MOHM TH |
500 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.85 A | 3.67A | Unshielded | 24mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
