Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0705-470K-TFIXED IND 47UH 1.1A 180 MOHM SMD |
1,337 |
|
Datasheet |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.1 A | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
B82144B2153K000FIXED IND 15UH 2.3A 140 MOHM TH |
973 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.3 A | 2.4A | Unshielded | 140mOhm Max | 50 @ 252kHz | 13MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2223K000FIXED IND 22UH 2.1A 175 MOHM TH |
743 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.1 A | 2A | Unshielded | 175mOhm Max | 50 @ 252kHz | 10MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
22R153CFIXED IND 15UH 1.35A 70 MOHM TH |
526 |
|
Datasheet |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 15 µH | ±10% | 1.35 A | - | Unshielded | 70mOhm Max | 60 @ 500kHz | 19.4MHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|
NR10050T3R8NFIXED IND 3.8UH 6.8A 16.9MOHM SM |
483 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.8 µH | ±30% | 6.8 A | 7.3A | Shielded | 16.9mOhm Max | - | 26MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
22R685CFIXED IND 6.8MH 72MA 22 OHM TH |
149 |
|
Datasheet |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 6.8 mH | ±10% | 72 mA | - | Unshielded | 22Ohm Max | 145 @ 150kHz | 850kHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|
13R152CFIXED IND 1.5UH 6.3A 8 MOHM TH |
144 |
|
Datasheet |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 1.5 µH | ±20% | 6.3 A | - | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|

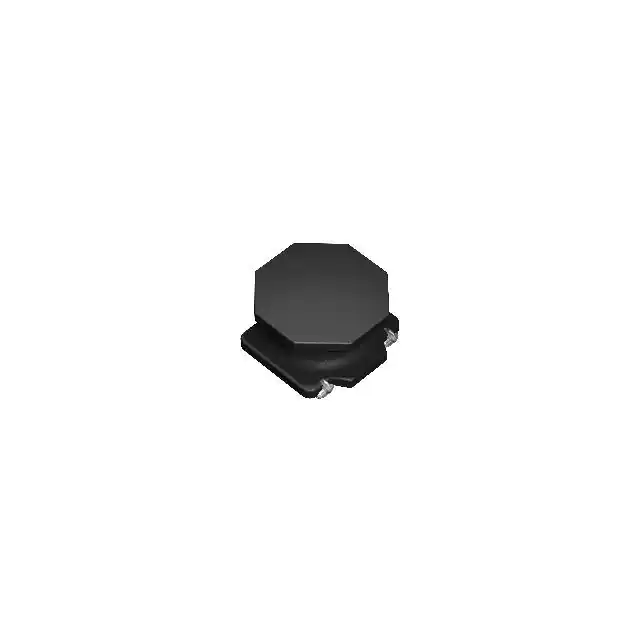

LSDND4040JET1R0MMFIXED IND 1UH 3A 69 MOHM SMD |
1,900 |
|
Datasheet |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 3 A | 4.7A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
|
1267AY-1R5N=P3FIXED IND 1.5UH 8.2A 10.8MOHM SM |
927 |
|
Datasheet |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.2 A | - | Shielded | 10.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
ASPI-8040S-430M-TFIXED IND 43UH 1.65A 113MOHM SMD |
885 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 43 µH | ±20% | 1.65 A | 1.9A | Shielded | 113mOhm | - | 7.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
MPL-SE6040-2R2FIXED IND 2.2UH 6.3A 14.5MOHM SM |
815 |
|
Datasheet |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 2.2 µH | - | 6.3 A | 7.2A | Shielded | 14.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.157" (4.00mm) |
|
|
1267AY-2R2N=P3FIXED IND 2.2UH 7.4A 13.2MOHM SM |
786 |
|
Datasheet |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.4 A | - | Shielded | 13.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
744050240047FIXED IND 470NH 2.9A 35 MOHM SMD |
591 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2.9 A | 5.6A | Shielded | 35mOhm Max | - | 129MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

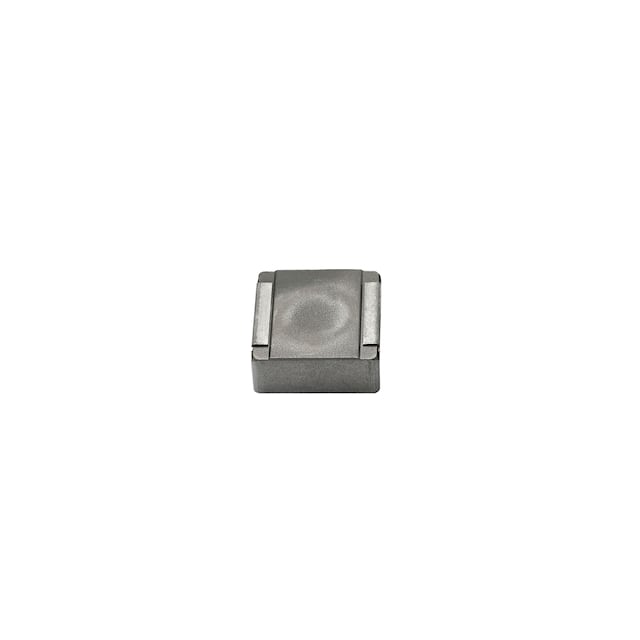

IHLP6767GZER1R0M8AFIXED IND 1UH 53A 1.46 MOHM SMD |
3,946 |
|
Datasheet |
IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 53 A | 42A | Shielded | 1.46mOhm Max | - | 35.5MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
MDMK2020T2R2MMVFIXED IND 2.2UH 109 MOHM SMD |
2,921 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | - | - | Shielded | 109mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|

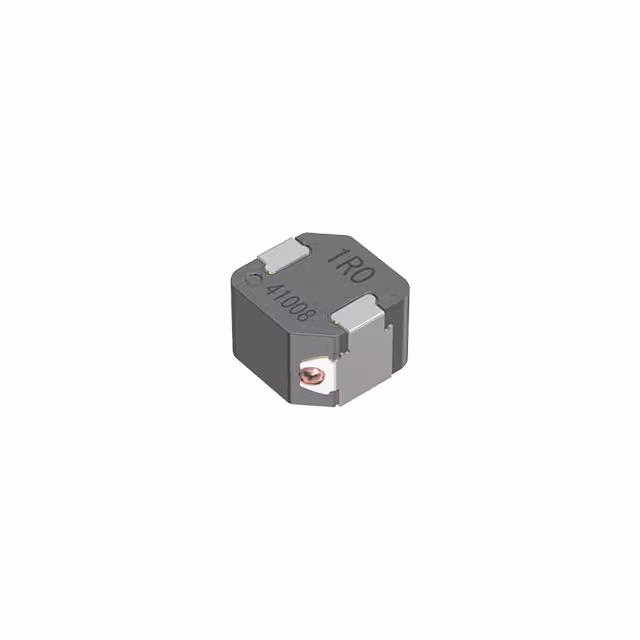

SPM6550CT-R33LFIXED IND 330NH 17A 2.86MOHM SMD |
1,551 |
|
Datasheet |
SPM-CT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±15% | 17 A | 25.2A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
MDJE4040T100MMFIXED IND 10UH 1.3A 510 MOHM SMD |
1,380 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.3 A | 1.4A | Shielded | 510mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
|
RLH0912-101KBRLFIXED IND 100UH 660MA 330MOHM TH |
1,364 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 660 mA | - | Unshielded | 330mOhm Max | 55 @ 796kHz | 7.2MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
RLH0912-150KLFIXED IND 15UH 1.7A 56 MOHM TH |
1,285 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.7 A | - | Unshielded | 56mOhm Max | 50 @ 2.52MHz | 21MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
744764133FIXED IND 33UH 70MA 5.6 OHM SMD |
1,003 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 70 mA | - | Unshielded | 5.6Ohm Max | 30 @ 2.52MHz | 17MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
