Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84104CFIXED IND 100UH 300MA 2 OHM SMD |
992 |
|
Datasheet |
8400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 300 mA | - | Unshielded | 2Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.177" L x 0.130" W (4.50mm x 3.30mm) | 0.114" (2.90mm) |
|
NRS6012T4R7MMGGVFIXED IND 4.7UH 1.55A 150MOHM SM |
885 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.55 A | 1.6A | Shielded | 150mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
NRS6012T100MMGJVFIXED IND 10UH 1.2A 240 MOHM SMD |
229 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1A | Shielded | 240mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
1227AS-H-100M=P2FIXED IND 10UH 1.2A 204 MOHM SMD |
201 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 750mA | Shielded | 204mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.071" (1.80mm) |
|
SDR0604-181KLFIXED IND 180UH 380MA 1.38OHM SM |
1,197 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 380 mA | 500mA | Unshielded | 1.38Ohm Max | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-391KLFIXED IND 390UH 250MA 2.48OHM SM |
1,195 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 250 mA | 340mA | Unshielded | 2.48Ohm Max | 25 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-100KLFIXED IND 10UH SMD |
1,134 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" Dia (5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-2R5MLFIXED IND 2.5UH SMD |
1,097 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-271KLFIXED IND 270UH 320MA 1.88OHM SM |
1,037 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 320 mA | 400mA | Unshielded | 1.88Ohm Max | 26 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|

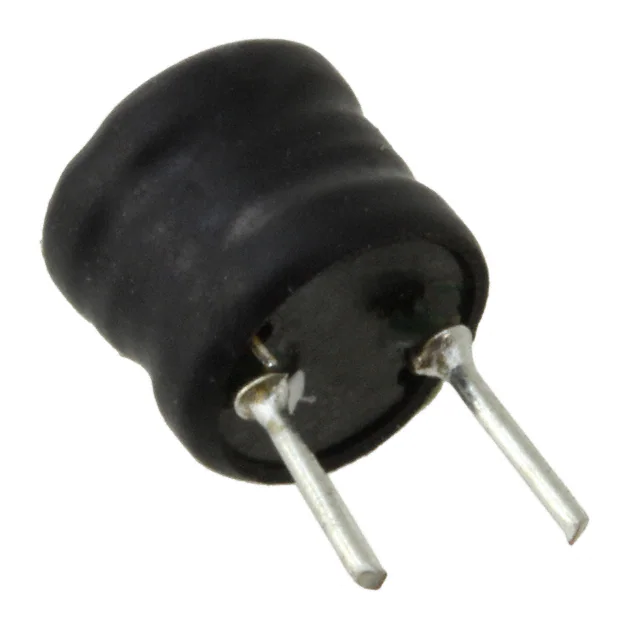

AIUR-05-471KFIXED IND 470UH 280MA 1 OHM TH |
972 |
|
Datasheet |
AIUR-05 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 280 mA | 340mA | Unshielded | 1Ohm Max | 10 @ 796kHz | 2.3MHz | - | -25°C ~ 85°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.354" (9.00mm) |
|
|
SDR0604-561KLFIXED IND 560UH 180MA 4 OHM SMD |
955 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 180 mA | 260mA | Unshielded | 4Ohm Max | 24 @ 252kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
AIUR-05-3R3MFIXED IND 3.3UH 2.8A 13 MOHM TH |
871 |
|
Datasheet |
AIUR-05 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.8 A | 4.5A | Unshielded | 13mOhm Max | 10 @ 7.96kHz | 38MHz | - | -25°C ~ 85°C | 7.96 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.354" (9.00mm) |
|
|
SDR0604-821KLFIXED IND 820UH 140MA 5.2OHM SMD |
828 |
|
Datasheet |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 140 mA | 200mA | Unshielded | 5.2Ohm Max | 25 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
SDR0302-1R2MLFIXED IND 1.2UH 2A 70 MOHM SMD |
730 |
|
Datasheet |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 2 A | 2.5A | Unshielded | 70mOhm Max | 22 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
AIAC-0805C-15NK-TFIXED IND 15NH 900MA 7.2MOHM SMD |
618 |
|
Datasheet |
AIAC-0805C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 15 nH | ±10% | 900 mA | - | Unshielded | 7.2mOhm Max | 70 @ 300MHz | 2.5GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | - | 0.112" L x 0.071" W (2.85mm x 1.80mm) | 0.083" (2.10mm) |
|

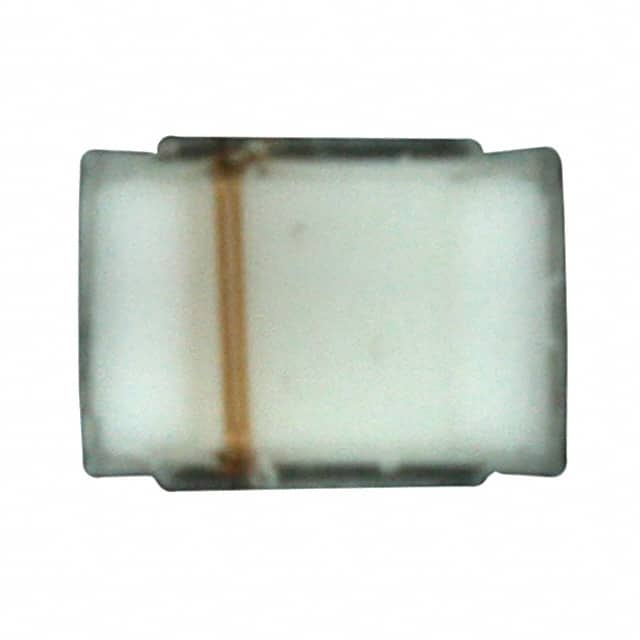

B82498F3829K000FIXED IND 8.2NH 700MA 90MOHM SMD |
504 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±10% | 700 mA | - | Unshielded | 90mOhm Max | 50 @ 1GHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
ASPI-0504-4R7M-TFIXED IND 4.7UH 3.5A 40 MOHM SMD |
427 |
|
Datasheet |
ASPI-0504 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.5 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
SRN6045HA-1R5YIND,6X6X4.7MM,1.5UH30%,5A,SEMI-S |
395 |
|
Datasheet |
SRN6045HA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 5 A | 11A | Shielded | 15mOhm Max | 17 @ 7.96MHz | 55MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
AIUR-04-471JFIXED IND 470UH 200MA 4 OHM TH |
255 |
|
Datasheet |
AIUR-04 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 200 mA | 200mA | Unshielded | 4Ohm Max | 30 @ 796kHz | 1.9MHz | - | -25°C ~ 85°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.441" (11.20mm) |
|
SDR0603-120MLFIXED IND 12UH 1.02A 160MOHM SMD |
314 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.02 A | 1.3A | Unshielded | 160mOhm Max | 23 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
