Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS5030T330MMGJVFIXED IND 33UH 800MA 292.5 MOHM |
126 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 800 mA | 1.15A | Shielded | 292.5mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
36501JR39JTDGFIXED IND 390NH 100MA 4.35OHM SM |
101 |
|
Datasheet |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 390 nH | ±5% | 100 mA | - | Unshielded | 4.35Ohm Max | 25 @ 250MHz | 900MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
29153CFIXED IND 15UH 1.5A 65 MOHM SMD |
1,780 |
|
Datasheet |
2900 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | - | 1.5 A | - | Shielded | 65mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
NR8040T0R9NFIXED IND 900NH 7.8A 7.8MOHM SMD |
1,493 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 900 nH | ±30% | 7.8 A | 11A | Shielded | 7.8mOhm Max | - | 85MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
NRM6045T151MMRRVFIXED IND 150UH 480MA 816MOHM SM |
895 |
|
Datasheet |
NR, M Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 480 mA | - | Unshielded | 816mOhm Max | - | 3.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLS6045EX-220M-CAFIXED IND 22UH 1.9A 136.5MOHM SM |
878 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 2.4A | Shielded | 136.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
AIUR-03-151KFIXED IND 150UH 610MA 370MOHM TH |
792 |
|
Datasheet |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 610 mA | 750mA | Unshielded | 370mOhm Max | 20 @ 796kHz | 3.2MHz | - | -25°C ~ 85°C | 796 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
NRM6045T4R7MMRRVFIXED IND 4.7UH 2.2A 36MOHM SMD |
658 |
|
Datasheet |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.2 A | 6A | Unshielded | 36mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRM6045T331MMRRVFIXED IND 330UH 290MA 1.872 OHM |
565 |
|
Datasheet |
NR, M Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 290 mA | - | Unshielded | 1.872Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRM6045T1R0NMRRVFIXED IND 1UH 4A 13 MOHM SMD |
363 |
|
Datasheet |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4 A | 13.5A | Unshielded | 13mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRM6045T100MMRSVFIXED IND 10UH 1.8A 60 MOHM SMD |
141 |
|
Datasheet |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.8 A | 4A | Unshielded | 60mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCXND6060KKT3R3MMGFIXED IND 3.3UH 1.5A 162MOHM SMD |
1,993 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.5 A | 1.6A | Unshielded | 135mOhm | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
LCXND6060KKT1R5MMGFIXED IND 1.5UH 1.9A 108MOHM SMD |
1,940 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 1.9 A | 2.4A | Unshielded | 90mOhm | - | 77MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
NRS6010T220MMGFVFIXED IND 22UH 700MA 696MOHM SMD |
930 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 650mA | Shielded | 696mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|

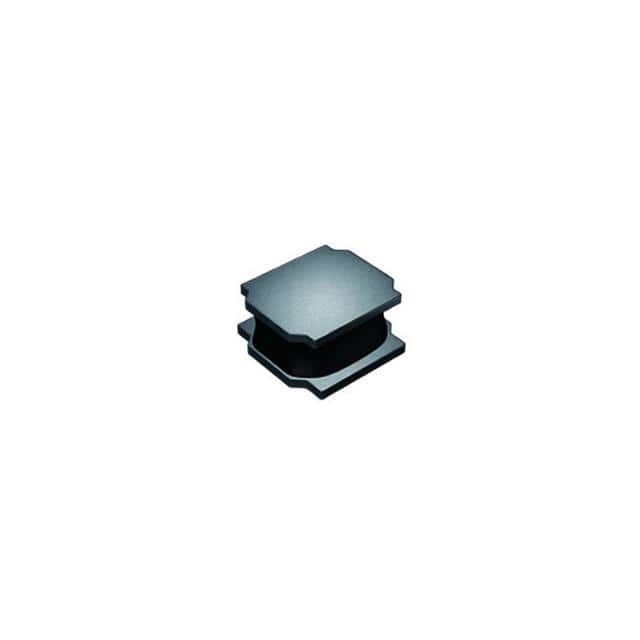

LSXBH8080YKL101MFIXED IND 100UH 1A 377 MOHM SMD |
920 |
|
Datasheet |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 290mOhm | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
VLS3012ET-470M-CAFIXED IND 47UH 440MA 1.5 OHM SMD |
673 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 440 mA | 310mA | Shielded | 1.5Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS6045EX-151M-CAFIXED IND 150UH 700MA 988MOHM SM |
649 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 700 mA | 900mA | Shielded | 988mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
CC453232A-1R5KLFIXED IND 1.5UH 1.9A 120MOHM SMD |
618 |
|
Datasheet |
CC453232A | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±10% | 1.9 A | 1.85A | Unshielded | 120mOhm Max | 10 @ 7.96MHz | 110MHz | AEC-Q200 | -40°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
LQW18CN55NJ0ZDFIXED IND 55NH 1.5A 45 MOHM SMD |
563 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 55 nH | ±5% | 1.5 A | - | Unshielded | 45mOhm Max | - | 1.6GHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
VLS3012ET-4R7M-CAFIXED IND 4.7UH 1.3A 156MOHM SMD |
541 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.3 A | 950mA | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
