Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLCV32T-3R3M-EFRFIXED IND 3.3UH 1A 192 MOHM SMD |
286 |
|
Datasheet |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1 A | - | Unshielded | 192mOhm Max | 15 @ 7.96MHz | 54MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
-2,00mm.jpg)
|
LBR2518T100KVFIXED IND 10UH 235MA 190MOHM SMD |
189 |
|
- |
LB, R Type | 1007 (2518 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 10 µH | ±10% | 235 mA | - | Unshielded | 190mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
-1,45mm.jpg)
|
LB2012T100KRVFIXED IND 10UH 120MA 500MOHM SMD |
163 |
|
- |
LB | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 10 µH | ±10% | 120 mA | - | Unshielded | 500mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
AIUR-04-152JFIXED IND 1.5MH 150MA 9 OHM TH |
985 |
|
Datasheet |
AIUR-04 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 150 mA | 150mA | Unshielded | 9Ohm Max | 40 @ 252kHz | 1.1MHz | - | -25°C ~ 85°C | 252 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.441" (11.20mm) |
|

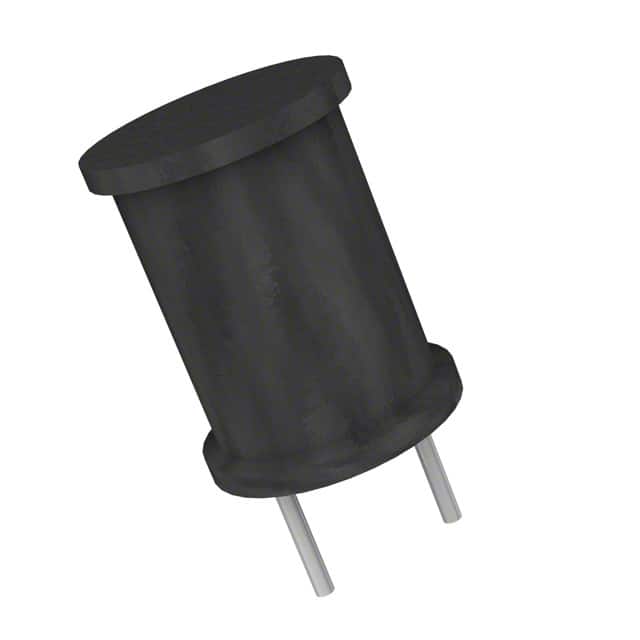

AIUR-04-103JFIXED IND 10MH 40MA 40 OHM TH |
990 |
|
Datasheet |
AIUR-04 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 40 mA | 40mA | Unshielded | 40Ohm Max | 40 @ 79.6kHz | 400kHz | - | -25°C ~ 85°C | 79.6 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.441" (11.20mm) |
-2,70mm.jpg)
|
CBC3225T680MRFIXED IND 68UH 410MA 1.3 OHM SMD |
1,810 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 410 mA | 320mA | Unshielded | 1.3Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
NRS5010T2R2NMGFFIXED IND 2.2UH 1.6A 126MOHM SMD |
1,685 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.6 A | 1.5A | Unshielded | 126mOhm Max | - | 65MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
LQW18ANR36G8ZDFIXED IND 360NH 190MA 3.98OHM SM |
917 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 360 nH | ±2% | 190 mA | - | Unshielded | 3.98Ohm Max | 25 @ 100MHz | 1.05GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
NLCV32T-2R2M-EFDFIXED IND 2.2UH 770MA 169MOHM SM |
832 |
|
Datasheet |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 770 mA | - | Unshielded | 169mOhm Max | 10 @ 7.96MHz | 68MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLV25T-1R0J-EFDFIXED IND 1UH 245MA 1.1 OHM SMD |
787 |
|
Datasheet |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 245 mA | - | Unshielded | 1.1Ohm Max | 30 @ 7.96MHz | 245MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
NLV32T-1R8J-EFDFIXED IND 1.8UH 350MA 900MOHM SM |
720 |
|
Datasheet |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 350 mA | - | Unshielded | 900mOhm Max | 30 @ 7.96MHz | 80MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NRS5010T1R0NMGFFIXED IND 1UH 2A 84 MOHM SMD |
705 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2 A | 2.35A | Unshielded | 84mOhm Max | - | 95MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
NRS4012T1R0NDGGFIXED IND 1UH 2.2A 50.4 MOHM SMD |
482 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.2 A | 2.8A | Shielded | 50.4mOhm Max | - | 100MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
NRS5010T6R8MMGFFIXED IND 6.8UH 1.21A 222MOHM SM |
463 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.21 A | 1A | Unshielded | 222mOhm Max | - | 33MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
MLF2012E100JTD25FIXED IND 10UH 15MA 800 MOHM SMD |
455 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±5% | 15 mA | - | Shielded | 800mOhm Max | 50 @ 2MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLF1005VR15KT000FIXED IND 150NH 180MA 630MOHM SM |
359 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±10% | 180 mA | - | Shielded | 630mOhm Max | 15 @ 25MHz | 350MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW18ANR27G8ZDFIXED IND 270NH 260MA 2.42OHM SM |
333 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 270 nH | ±2% | 260 mA | - | Unshielded | 2.42Ohm Max | 24 @ 100MHz | 1.25GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
NRH3010T3R3MNFIXED IND 3.3UH 1.03A 156MOHM SM |
900 |
|
- |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.03 A | 1A | Shielded | 156mOhm Max | - | 64MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
NLV25T-560J-EFDFIXED IND 56UH 75MA 12.1 OHM SMD |
860 |
|
Datasheet |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 75 mA | - | Unshielded | 12.1Ohm Max | 20 @ 2.52MHz | 16MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLCV32T-1R5M-EFDFIXED IND 1.5UH 830MA 143MOHM SM |
464 |
|
Datasheet |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 830 mA | - | Unshielded | 143mOhm Max | 10 @ 7.96MHz | 80MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
