Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLCV25T-150K-EFFIXED IND 15UH 175MA 2.86OHM SMD |
282 |
|
Datasheet |
NLCV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 175 mA | - | Unshielded | 2.86Ohm Max | 30 @ 2.52MHz | 21MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
MBMK2520HR47NFIXED IND 470NH 2.6A 42 MOHM SMD |
248 |
|
Datasheet |
MCOIL™, MB, H Type | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±30% | 2.6 A | 3.9A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MBMK2520H2R2MFIXED IND 2.2UH 1.25A 159MOHM SM |
175 |
|
Datasheet |
MCOIL™, MB, H Type | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.25 A | 1.8A | Shielded | 159mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

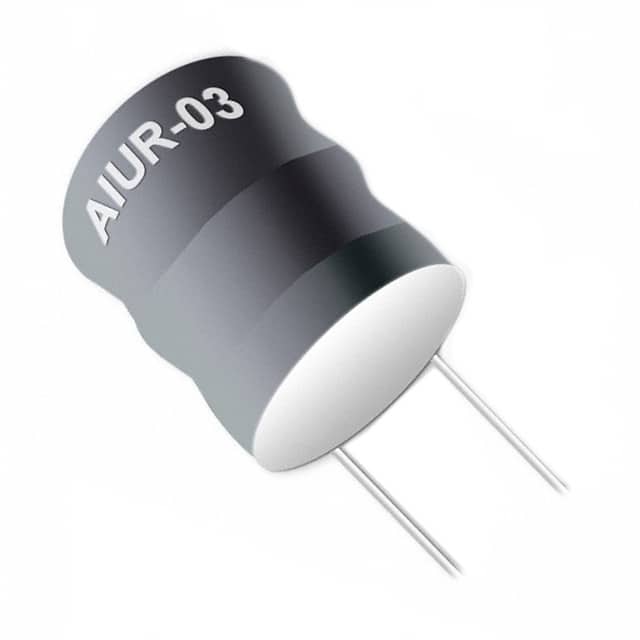

AIUR-03-100KFIXED IND 10UH 2A 45 MOHM TH |
938 |
|
Datasheet |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2 A | 3A | Unshielded | 45mOhm Max | 50 @ 2.52MHz | 14MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
AIUR-03-560KFIXED IND 56UH 900MA 180 MOHM TH |
389 |
|
Datasheet |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 900 mA | 1.3A | Unshielded | 180mOhm Max | 30 @ 2.52MHz | 5.4MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
MLF2012C680KTD25FIXED IND 68UH 2MA 2.9 OHM SMD |
986 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 68 µH | ±10% | 2 mA | - | Shielded | 2.9Ohm Max | 25 @ 1MHz | 9MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012A2R7KTD25FIXED IND 2.7UH 50MA 550MOHM SMD |
946 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±10% | 50 mA | - | Shielded | 550mOhm Max | 45 @ 10MHz | 70MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
NLV25T-068J-PFFIXED IND 68NH 320MA 650MOHM SMD |
837 |
|
Datasheet |
NLV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 nH | ±5% | 320 mA | - | Unshielded | 650mOhm Max | 20 @ 100MHz | 1.05GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
NLV32T-018J-EFFIXED IND 18NH 450MA 180MOHM SMD |
786 |
|
Datasheet |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 nH | ±5% | 450 mA | - | Unshielded | 180mOhm Max | 21 @ 100MHz | 1.9GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
MLF2012A1R5KTD25FIXED IND 1.5UH 80MA 400MOHM SMD |
363 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±10% | 80 mA | - | Shielded | 400mOhm Max | 45 @ 10MHz | 100MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
NLCV25T-R47M-EFRFIXED IND 470NH 1.34A 96MOHM SMD |
319 |
|
Datasheet |
NLCV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 1.34 A | - | Unshielded | 96mOhm Max | 5 @ 25.2MHz | 220MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
MLF2012C180KTD25FIXED IND 18UH 5MA 800 MOHM SMD |
223 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 18 µH | ±10% | 5 mA | - | Shielded | 800mOhm Max | 30 @ 1MHz | 20MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012E5R6KTD25FIXED IND 5.6UH 15MA 600MOHM SMD |
176 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 5.6 µH | ±10% | 15 mA | - | Shielded | 600mOhm Max | 50 @ 4MHz | 45MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
NLV32T-120J-EFDFIXED IND 12UH 140MA 2.5 OHM SMD |
170 |
|
Datasheet |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±5% | 140 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 20MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
 MHQ Series.jpg)
|
MHQ1005PR18HT000FIXED IND 180NH 90MA 6 OHM SMD |
121 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 180 nH | ±3% | 90 mA | - | Unshielded | 6Ohm Max | 18 @ 250MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
NLCV25T-1R5M-EFRFIXED IND 1.5UH 890MA 216MOHM SM |
118 |
|
Datasheet |
NLCV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 890 mA | - | Unshielded | 216mOhm Max | 10 @ 7.96MHz | 80MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
SDET25201T-1R5MSFIXED IND 1.5UH 1.7A 114MOHM SMD |
998 |
|
Datasheet |
SDET25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 1.7 A | 1.62A | Shielded | 114mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
WCL2520-150-RFIXED IND 15UH 130MA 3 OHM SMD |
752 |
|
Datasheet |
WCL2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 µH | ±5% | 130 mA | - | Unshielded | 3Ohm Max | 10 @ 2.52MHz | 20MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
MLF1005G1R0KT000FIXED IND 1UH 40MA 640 MOHM SMD |
589 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±10% | 40 mA | - | Shielded | 640mOhm Max | 30 @ 10MHz | 120MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
-2,00mm.jpg)
|
CB2518T220KVFIXED IND 22UH 390MA 650MOHM SMD |
419 |
|
- |
CB | 1007 (2518 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 390 mA | 165mA | Unshielded | 650mOhm Max | - | 19MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
