Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDEM20161T-3R3MSFIXED IND 3.3UH 1.08A 0.306OHM |
782 |
|
Datasheet |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 1.08 A | 1.35A | Shielded | 306mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
-1,80mm.jpg)
|
LB2016T220KVFIXED IND 22UH 105MA 1 OHM SMD |
720 |
|
- |
LB | 0806 (2016 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 22 µH | ±10% | 105 mA | - | Unshielded | 1Ohm | - | 16MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
NRV2012T1R5NGFFIXED IND 1.5UH 1.4A 120MOHM SMD |
525 |
|
Datasheet |
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.4 A | 1.8A | Unshielded | 120mOhm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
NRV2012T4R7MGFFIXED IND 4.7UH 750MA 390MOHM SM |
490 |
|
Datasheet |
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 750 mA | 1.1A | Unshielded | 390mOhm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LQW15AN8N9G8ZDFIXED IND 8.9NH 1.42A 0.07OHM SM |
392 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.9 nH | ±2% | 1.42 A | - | Unshielded | 70mOhm Max | 31 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.JPG)
|
CW161009A-R12JFIXED IND 120NH 300MA 650MOHM SM |
305 |
|
Datasheet |
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 120 nH | ±5% | 300 mA | - | Unshielded | 650mOhm Max | 30 @ 150MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
CW161009A-6N8JFIXED IND 6.8NH 700MA 100MOHM SM |
251 |
|
Datasheet |
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 6.8 nH | ±5% | 700 mA | - | Unshielded | 100mOhm Max | 27 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
CW161009A-R33JFIXED IND 330NH 150MA 2.3OHM SMD |
215 |
|
Datasheet |
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 330 nH | ±5% | 150 mA | - | Unshielded | 2.3Ohm Max | 25 @ 100MHz | 500MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
CW161009A-1N6DFIXED IND 1.6NH 700MA 30MOHM SMD |
182 |
|
Datasheet |
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 1.6 nH | ±0.3nH | 700 mA | - | Unshielded | 30mOhm Max | 18 @ 250MHz | 12.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
LQW15AN4N4G8ZDFIXED IND 4.4NH 1.6A 0.052OHM SM |
170 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.4 nH | ±2% | 1.6 A | - | Unshielded | 52mOhm Max | 34 @ 250MHz | 9.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
CW161009A-2N2DFIXED IND 2.2NH 700MA 110MOHM SM |
160 |
|
Datasheet |
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 2.2 nH | ±0.3nH | 700 mA | - | Unshielded | 110mOhm Max | 13 @ 250MHz | 8.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
.JPG)
|
CW105550A-56NJFIXED IND 56NH 200MA 970MOHM SMD |
150 |
|
Datasheet |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 56 nH | ±5% | 200 mA | - | Unshielded | 970mOhm Max | 22 @ 200MHz | 1.76GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW105550A-3N3JFIXED IND 3.3NH 840MA 66MOHM SMD |
135 |
|
Datasheet |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.3 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 20 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW105550A-40NJFIXED IND 40NH 320MA 438MOHM SMD |
107 |
|
Datasheet |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 40 nH | ±5% | 320 mA | - | Unshielded | 438mOhm Max | 26 @ 250MHz | 2.24GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW161009A-16NJFIXED IND 16NH 700MA 120MOHM SMD |
107 |
|
Datasheet |
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 16 nH | ±5% | 700 mA | - | Unshielded | 120mOhm Max | 35 @ 250MHz | 3.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
AIUR-03-390KFIXED IND 39UH 1.1A 100 MOHM TH |
791 |
|
Datasheet |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 1.1 A | 1.5A | Unshielded | 100mOhm Max | 30 @ 2.52MHz | 6.9MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|

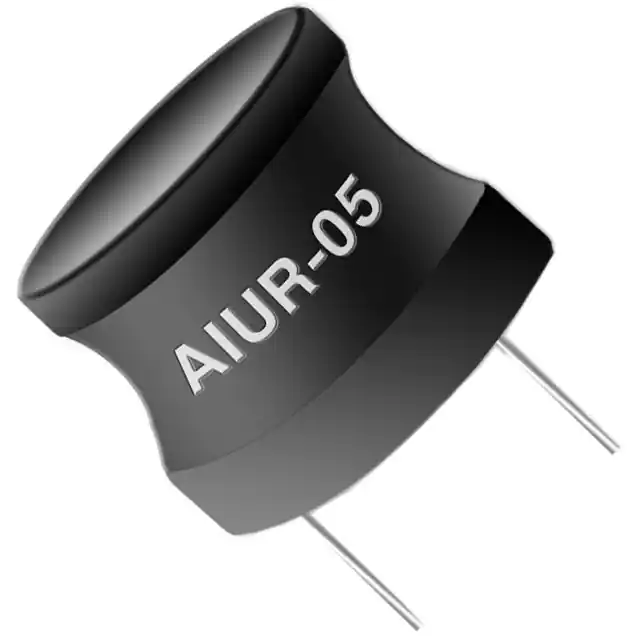

AIUR-05-221KFIXED IND 220UH 380MA 530MOHM TH |
499 |
|
Datasheet |
AIUR-05 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 380 mA | 500mA | Unshielded | 530mOhm Max | 10 @ 796kHz | 3.5MHz | - | -25°C ~ 85°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.354" (9.00mm) |
-Height-1.00mm.jpg)
|
1269AS-H-6R8M=P2FIXED IND 6.8UH 1.1A 516MOHM SMD |
616 |
|
Datasheet |
DFE252010C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 1.1 A | - | Shielded | 516mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|
LQM21PN3R3NGRDFIXED IND 3.3UH 1A 188 MOHM SMD |
461 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±30% | 1 A | - | Shielded | 188mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NLV25T-R82J-EFFIXED IND 820NH 260MA 1 OHM SMD |
317 |
|
Datasheet |
NLV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±5% | 260 mA | - | Unshielded | 1Ohm Max | 30 @ 7.96MHz | 260MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
