Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFSG-33-0002FIXED IND 10A 30 MOHM TH |
4,067 |
|
Datasheet |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 10 A | - | - | 30mOhm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 1.299" L x 1.299" W (33.00mm x 33.00mm) | - |
|
1540M09FIXED IND 800UH 1.75A 640MOHM TH |
1,641 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 800 µH | ±15% | 1.75 A | - | Unshielded | 640mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | - |
|
IHTH1125MZEB330M5AFIXED IND 33UH 16.8A 11 MOHM TH |
3,420 |
|
Datasheet |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tray | Active | - | - | 33 µH | ±20% | 16.8 A | 22A | Shielded | 11mOhm Max | - | 4.2MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
|
IHTH1125MZEB220M5AFIXED IND 22UH 21A 6.83 MOHM TH |
2,794 |
|
Datasheet |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tube | Active | - | - | 22 µH | ±20% | 21 A | 23A | Shielded | 6.83mOhm Max | - | 5.61MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
IH10BQ101KFIXED IND 100UH 10A 30 MOHM TH |
3,328 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10 A | 7A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.625" L (23.75mm x 41.28mm) | - |
|

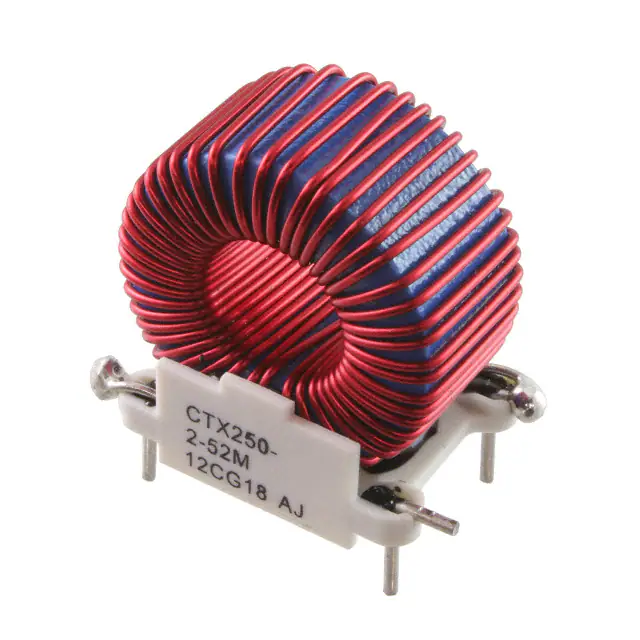

CTX250-2-52M-RFIXED IND 250UH 4.2A 83.3MOHM TH |
2,428 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 4.2 A | 4.2A | Unshielded | 83.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.315" (33.40mm) |
|
HCM1A2213V2-R47-RFIXED IND 470NH 66A 0.5 MOHM SMD |
1,866 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 66 A | 100A | Shielded | 0.5mOhm Max | - | 52MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
SNG-25B-600FIXED IND 600UH 20MOHM CHAS MNT |
2,385 |
|
Datasheet |
SNG | Vertical, 2 Wire Leads | Bulk | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 600 µH | -30%, +50% | - | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.929" L x 0.945" W (49.00mm x 24.00mm) | 1.535" (39.00mm) |
|

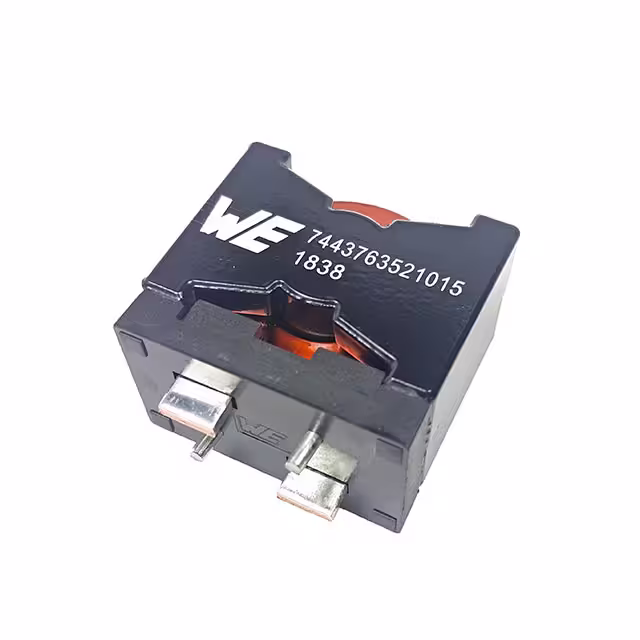

7443763521015FIXED IND 1.5UH 75A 0.4 MOHM TH |
2,426 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1.5 µH | ±20% | 75 A | 125A | Shielded | 0.4mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 0.846" W (36.00mm x 21.50mm) | 1.378" (35.00mm) |
|

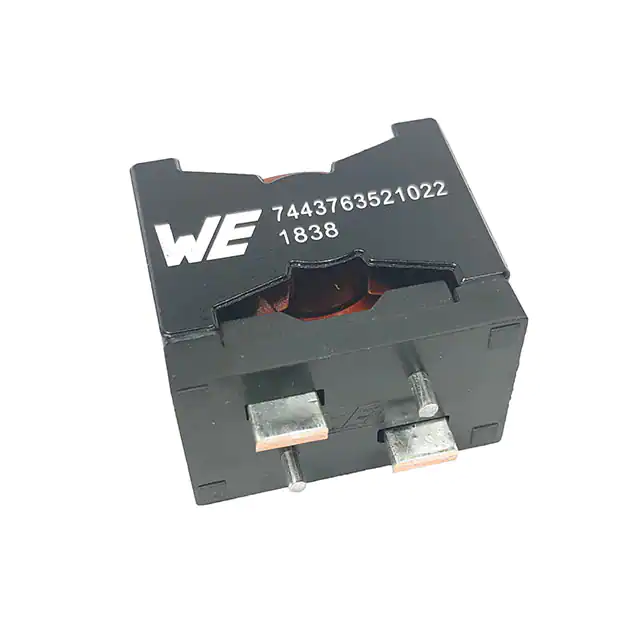

7443763521022FIXED IND 2.2UH 75A 0.4 MOHM TH |
1,990 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 2.2 µH | ±20% | 75 A | 120A | Shielded | 0.4mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 0.846" W (36.00mm x 21.50mm) | 1.378" (35.00mm) |
|
1538M20FIXED IND 100UH 10A 27 MOHM TH |
2,331 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 10 A | - | Unshielded | 27mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.620" L (23.88mm x 41.15mm) | - |
|
IHTH1500MZEB2R2M5AIHTH-1500MZ-5A 2.2 20% EB E2 |
4,134 |
|
Datasheet |
IHTH-1500MZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 2.2 µH | ±20% | 81.7 A | 111.4A | Shielded | 0.54mOhm Max | - | 14.7MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.502" (12.76mm) |
|
|
1538M01FIXED IND 5UH 10A 13 MOHM TH |
1,305 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 5 µH | ±10% | 10 A | - | Unshielded | 13mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|

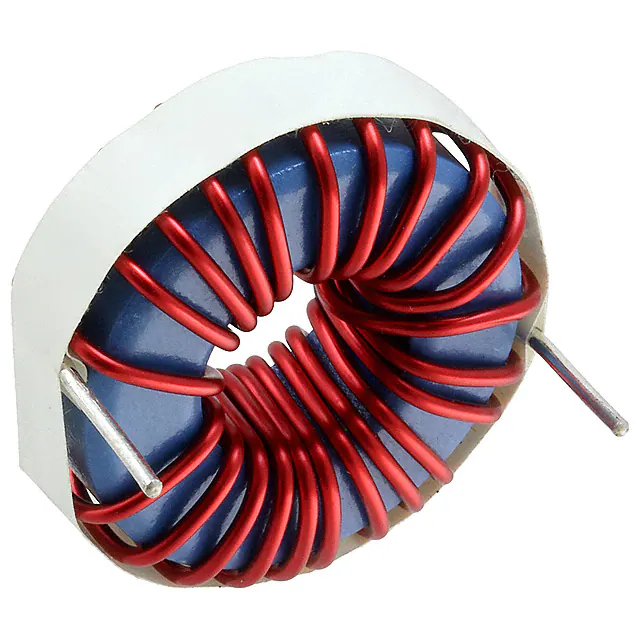

CTX50-7-52LP-RFIXED IND 50UH 10.5A 16.3MOHM TH |
1,217 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 10.5 A | 10.2A | Unshielded | 16.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.535" Dia (39.00mm) | 0.661" (16.80mm) |
|
PFC3819QM-151K11B-00CHOKE COMMON MODE |
3,476 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 11.1 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.575" L x 1.319" W (40.00mm x 33.50mm) | 0.827" (21.00mm) |
|
|
PFC3819QM-231K07D-00CHOKE COMMON MODE |
100 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 230 µH | ±10% | 7.4 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.575" L x 1.319" W (40.00mm x 33.50mm) | 0.827" (21.00mm) |
|
|
IHTH1500MZEBR47M5AIHTH-1500MZ-5A .47 20% EB E2 |
4,207 |
|
Datasheet |
IHTH-1500MZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 470 nH | ±20% | 134.8 A | 156.2A | Shielded | 0.2mOhm Max | - | 54.1MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.502" (12.76mm) |
|
|
1540M11FIXED IND 50UH 9.5A 12 MOHM TH |
1,242 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 50 µH | ±15% | 9.5 A | - | Unshielded | 12mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - |
|
1140-182K-RCFIXED IND 1.8MH 2.8A 360 MOHM TH |
1,019 |
|
Datasheet |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 2.8 A | 4.9A | Unshielded | 360mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-271K-RCFIXED IND 270UH 7A 56 MOHM TH |
3,673 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 7 A | 12.4A | Unshielded | 56mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
