Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1468508CFIXED IND 6.8MH 800MA 2.1 OHM TH |
3,180 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 6.8 mH | ±10% | 800 mA | - | Unshielded | 2.1Ohm Max | 30 @ 50kHz | 400kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.917" (23.30mm) |
|
2302-V-RCFIXED IND 12UH 19.1A 5 MOHM TH |
3,164 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 12 µH | ±15% | 19.1 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
2302-H-RCFIXED IND 12UH 19.1A 5 MOHM TH |
4,909 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 12 µH | ±15% | 19.1 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2301-V-RCFIXED IND 10UH 20A 5 MOHM TH |
4,084 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 20 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2308-V-RCFIXED IND 39UH 11.2A 14 MOHM TH |
4,840 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 39 µH | ±15% | 11.2 A | - | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2323-V-RCFIXED IND 820UH 2.6A 270 MOHM TH |
1,662 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 820 µH | ±15% | 2.6 A | - | Unshielded | 270mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
SHBC12-1R0A0028VCMC 28UH 5A 2LN TH |
4,787 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 28 µH | ±20% | 5 A | - | Unshielded | 21.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.024" Dia (26.00mm) | 1.024" (26.00mm) |
|
|
2206-V-RCFIXED IND 27UH 9.8A 11 MOHM TH |
4,908 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 27 µH | ±15% | 9.8 A | - | Shielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|

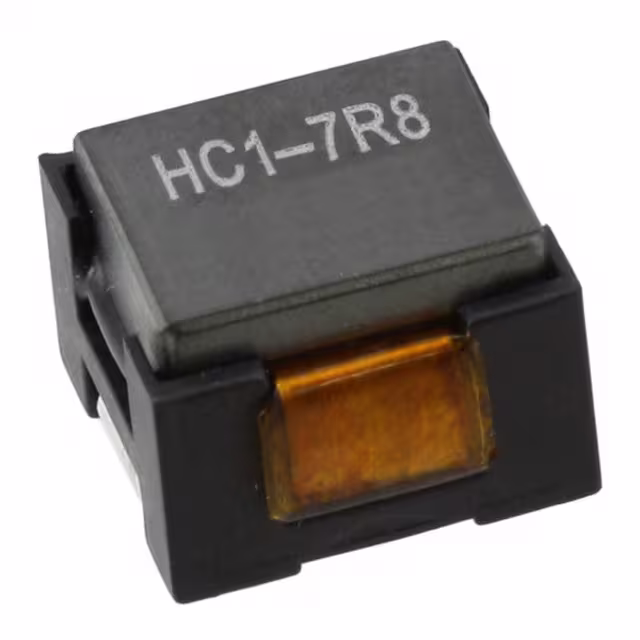

HC1-7R8-RFIXED IND 7.8UH 12.79A 5.7 MOHM |
2,957 |
|
Datasheet |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±15% | 12.79 A | 6.7A | Unshielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|
4922R-01LFIXED IND 1UH 5.5A 13 MOHM SMD |
3,345 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±15% | 5.5 A | 5.5A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
MPX1D1770L101FIXED IND 100UH 4.5A 110.3 MOHM |
1,383 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 µH | ±20% | 4.5 A | 7.5A | Shielded | 110.3mOhm Max | - | 1.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|

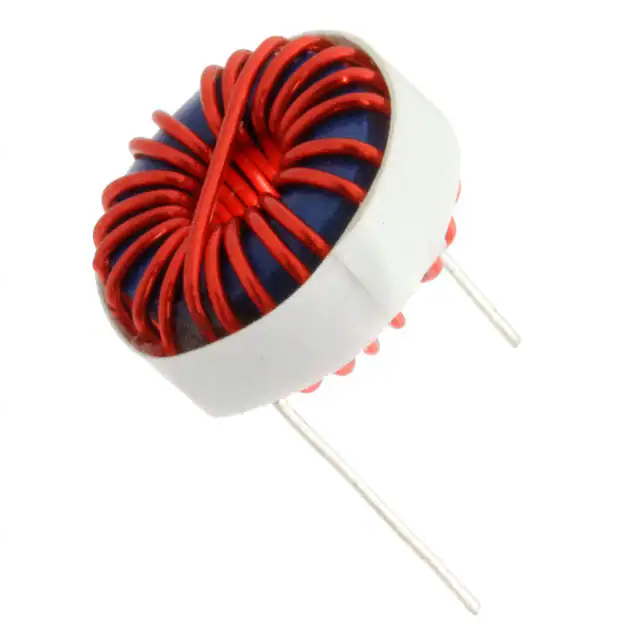

CTX20-2-52LP-RFIXED IND 20UH 3.2A 39.2 MOHM TH |
4,192 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 3.2 A | 3.2A | Unshielded | 39.2mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.295" (7.50mm) |
|
744152FIXED IND 82UH 7.7A 30 MOHM TH |
1,950 |
|
Datasheet |
WE-SI | Radial, Vertical Cylinder (Open) | Bag | Active | Toroidal | Iron Powder | 82 µH | ±20% | 7.7 A | 1.7A | Unshielded | 30mOhm Max | - | 5.4MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.102" Dia x 0.472" W (28.00mm x 12.00mm) | - |
|
TCK-150FIXED IND 68UH 590MA 636MOHM SMD |
4,840 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 68 µH | ±20% | 590 mA | - | Unshielded | 636mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.126" (3.20mm) |
|
|
MPX1D1770L220FIXED IND 22UH 10.5A 22.9MOHM SM |
152 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 10.5 A | 12A | Shielded | 22.9mOhm Max | - | 4.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
1536EFIXED IND 4.9UH 15A 16 MOHM TH |
3,340 |
|
Datasheet |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 4.9 µH | ±20% | 15 A | - | Unshielded | 16mOhm | - | 42MHz | - | - | 7.9 MHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
B82559B6682A016FIXED IND 6.8UH 14.4A 6.2MOHM SM |
3,960 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 14.4 A | 18.7A | Shielded | 6.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.333" (8.45mm) |
|
MPXV1D1770L101FIXED IND 100UH 4.5A 110.3 MOHM |
181 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 µH | ±20% | 4.5 A | 7.5A | Shielded | 110.3mOhm Max | - | 1.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
2200LL-330-H-RCFIXED IND 33UH 11.1A 10 MOHM TH |
1,995 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 33 µH | ±15% | 11.1 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
|
MPXV1D1770LR68FIXED IND 680NH 50A 1.05MOHM SMD |
100 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 50 A | 68A | Shielded | 1.05mOhm Max | - | 37MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
